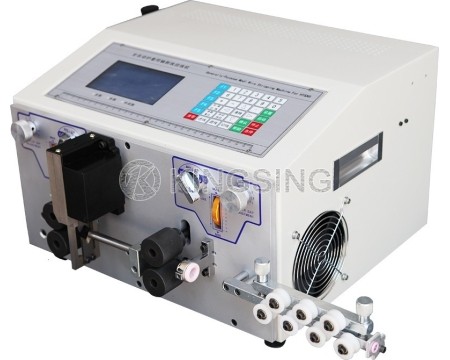

Automatic Wire Cutting and Stripping Machine

Model
KS-W109
Brand
KINGSING
Price
Inquiry
  1. Description
  2. Specification
  3. Application
  4. Wear Parts

Today’s wire processing is characterized by small batch sizes and just-in-time production. Converting machines from one application to the next has to be quick and easy. The Kingisng fully automatic wire processing machines are the perfect answer to meeting this need. Incorporating the latest technologies, these wire processing machines are designed for processing both single conductors and jack wires, especially for power cords. KS-W109 is designed with the feature of fastest conversion for maximum production output, and high machine speed for the best unit cost performance. One of its most unique feature is ultra-short mode wire cutting and stripping function (for example, total wire cutting length is 3mm, and both ends stripping 1mm).

4mm<sup>2</sup> BV Wire 10mm<sup>2</sup> BVR Wire Wire Prefeeder

Available Wire Size: 0.1 ~ 10.0mm²
Cutting Length: 0.1 ~ 999999mm
Stripping Length: Head 0 ~ 30mm, End 0 ~ 60mm
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Speed: 3000 ~ 7000pcs/hour
Drive Mode: 4-wheel drive
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Memory Function: Max. 99 group of programs
Power Rating: 450W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 42Kg
Dimension: 500 × 475 × 335mm
Suitable for: power line, cable, electricity wires and so on
