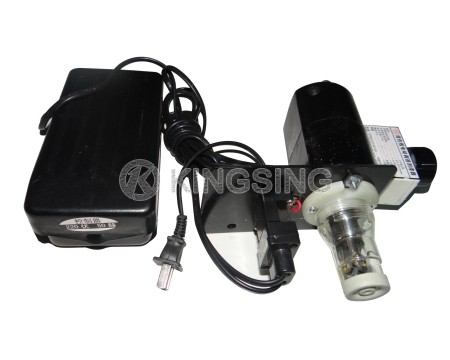

Enamel Covered Wire Stripping Machine

Model
KS-E505
Brand
KINGSING
Price
Inquiry
  1. Description
  2. Specification
  3. Application
  4. Wear Parts

The abrasive method of stripping wire utilizes either wire or fiberglass brushes to abrade the insulation off the conductor. This type of stripping is both quicker and less damaging to the wire than scraping processes. This enamel covered wire stripping machine can handle round, square, rectangular or oval shaped magnet wire and also standard wire with most common types of insulation. This tool also removes oxides from component leads quickly and easily to promote better soldered connections. A built-in guard affords protection from fingers coming in contact with the wire of fiberglass wheels.

Available Wire Size: Round Wire: Ø0.2-3.8mm, Flat Wire: Max. width 20mm
Stripping Length: 4-100mm
Speed: 3300r/min
Power Supply: 220V/50Hz
Power Rating: 350W
Dimension: 485×305×265mm
Net Weight: 35Kg
