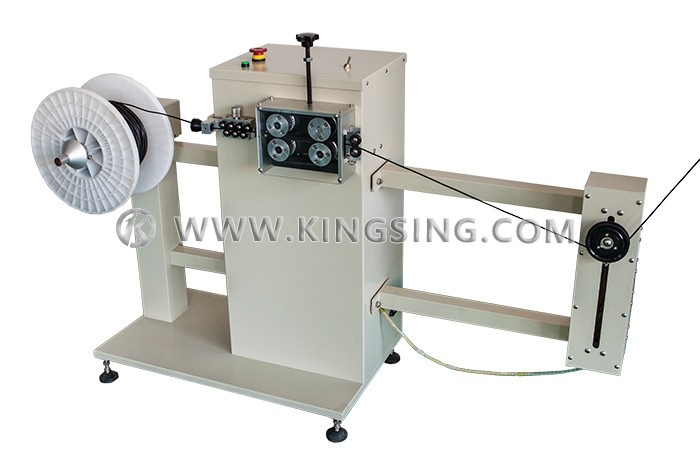

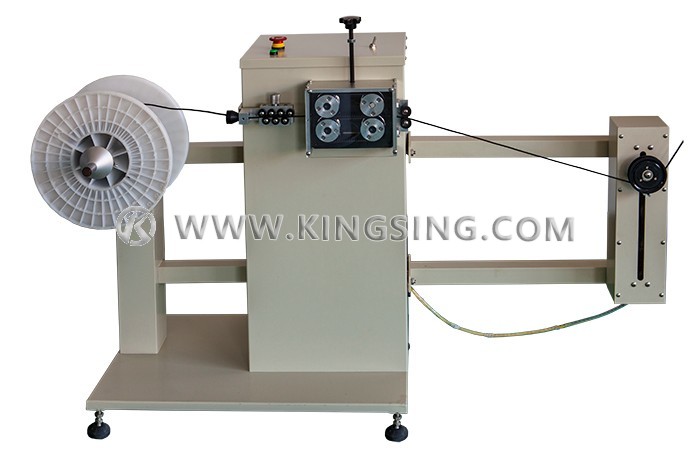

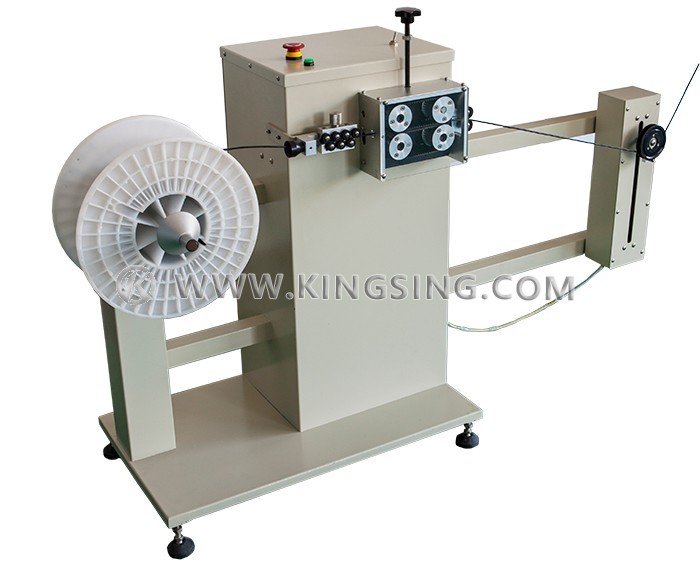

Belt-driven Wire Prefeeder

  • Model：KS-W202
  • Net. Weight：
  • Dimension：
Online Inquiry

The belt-driven wire prefeeder is the perfect choice for the optimum feeding of wires from reels, wire is transported by two synchro-nous toothed belts, the adjustable feed belt pressure prevents damage to the material. Wires ranging from fine to coarse are fed powerfully yet gently to the processing stations.

Available Material: reel coils of soft wire
Available Wire Size: Φ0.6 ~ 8mm
Max. Feeding Speed: 2.5m/s
Max. Reel Weight: 30Kg
Power Supply: 220V/50Hz
Power Rating: 120W
Net. Weight: 68Kg
Dimension: 1250 × 670 × 900mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
