Ultrasonic Tape Cutting Machine

Model
KS-C310
Brand
KINGSING
Price
Inquiry
  1. Description
  2. Specification
  3. Application
  4. Wear Parts

Features:

The ultrasonic label cutting machine is especially designed for cutting care label and webbing neatly without fraying, this machine can cut labels with very high accuracy thanks to the color sensor, all parameters can be set through the color touch screen.

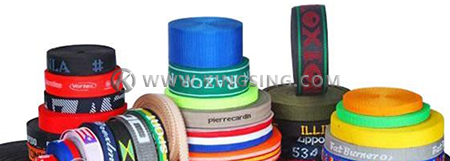

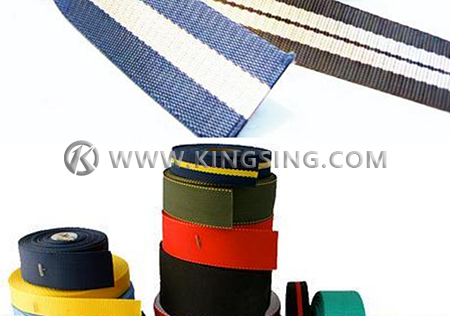

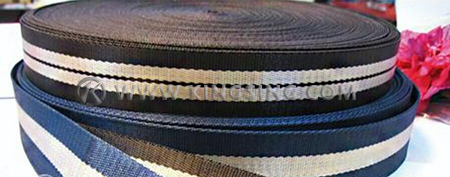

Applications: Webbing Belt, Hook and Loop Tape, Shoe Strings, Zipper, Safety Belt, etc.
Max. Cutting Width: 200mm
Cutting Length: 0-9999mm
Cutting Speed: 7000Pcs/hour
Frequency: 15000Hz
Air Pressure:0.4 - 0.7MPa
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 1500W
Max. Sonic Wave: 3500W
Net Weight: 178Kg
Dimension: 769 × 690 × 1380mm
