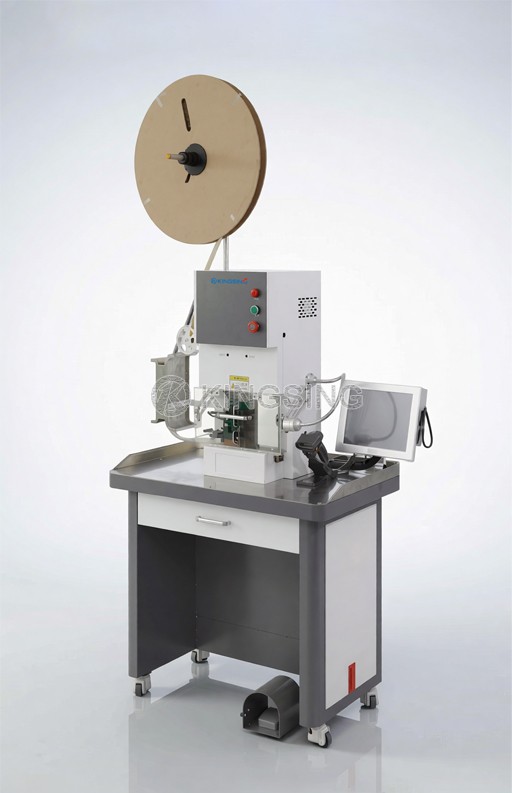

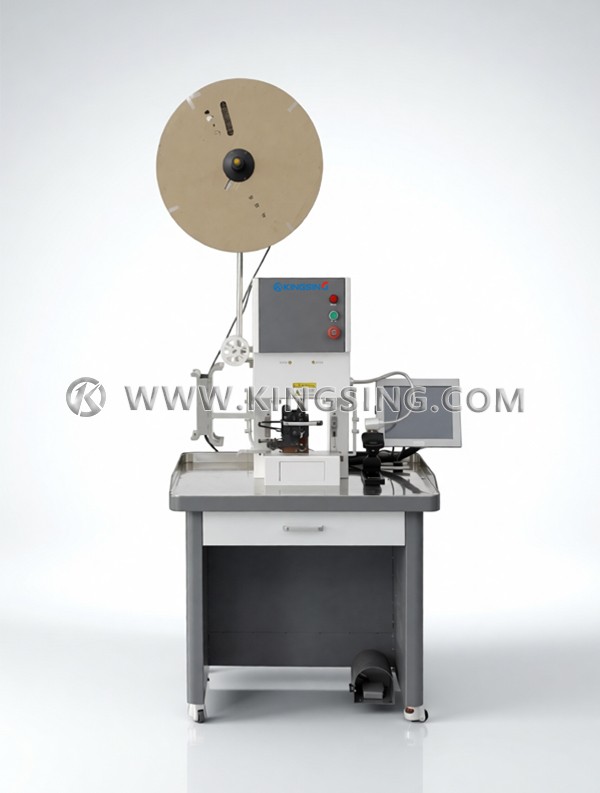

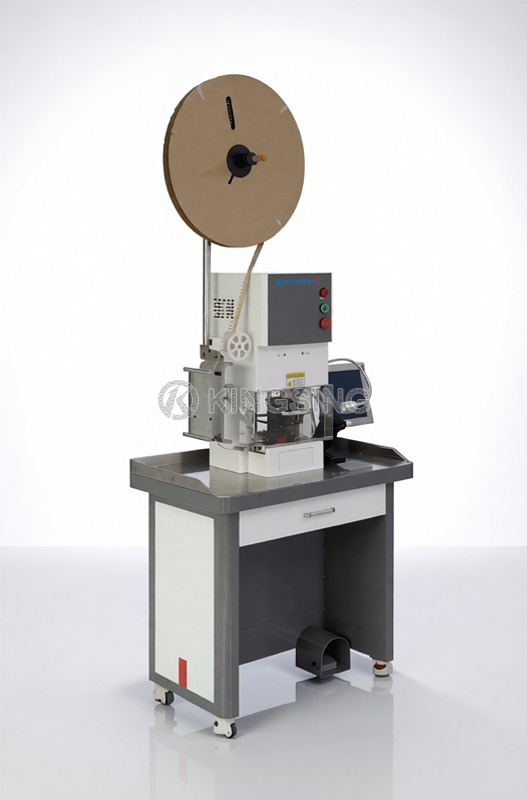

Servo Motor Driven Terminal Crimping Machine

  • Model:KS-T5190C
  • Net. Weight:
  • Dimension:
  1. This is a network-type terminal crimping machine, driven by a high-precision servo motor. The whole machine is precise in workmanship, solid in material, strong in rigidity, high in crimping accuracy, low in noise, low in power consumption, and stable in output.The machine is equipped with an automatic paper winder and a terminal strip cutting and recycling device. When crimping the cross feed terminal, the paper on the back of the terminal can be automatically recycled into rolls. The terminal strip will be collected into a drawer after being cut off for a fixed length, and the working environment will always be kept clean.

  2. Industrial computer control, Windows operating system, support network connection, can be docked with the MES system in the LAN. The crimp height can be set directly in the program, eliminating the need for manual adjustment screws. The built-in terminal pressure monitor can automatically alarm and stop when the pressure is abnormal, and the pressure data of each crimping is automatically saved in the database, which can realize quality traceability management. A code scanning gun can be selected, and the crimping parameters of the corresponding product will be automatically called out after scanning the code. Support three-level authority management function, which can assign different operation authority to operators, technicians and managers.

  3. High versatility, can crimp all kinds of cross-feed terminals, direct-feed terminals, flag-shaped terminals, U-shaped butt terminals, aviation terminals, tubular insulated terminals, bulk cold-pressed terminals, etc. The mold supports quick replacement and crimps different terminals You only need to replace the corresponding mold at the time, and the crimping parameters can be called out with one key, and the debugging time is short.

Download: (1) (2)

Maximum pressure: 4T

Motor power: 2000W

Crimp stroke: 30mm

Adjustment range: 20mm

Applicable wire diameter: 0.1~16mm2

Crimping accuracy: ±0.03mm

Production efficiency: 1500~1800 times/hour

Operation interface: Windows operating system, color touch screen

Data storage: 120 groups

Main functions: code scanning identification, pressure monitoring, network connection, data traceability

Net weight: 130kg

Dimensions: 900*540*1463mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
