Pneumatic End Feed Terminal Crimp Applicator

Model
KS-CP30R
Brand
KINGSING
Price
Inquiry
  1. Description
  2. Specification
  3. Application
  4. Wear Parts

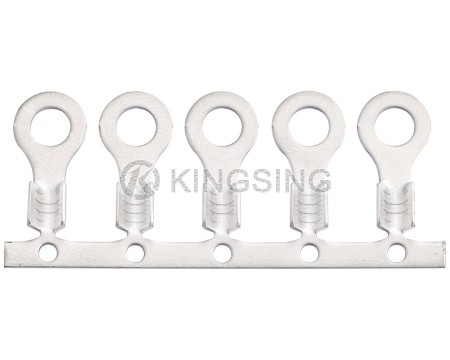

The terminal crimp applicator with pneumatic feed system has been developed especially for processing terminals linked "end to end" rolled over a reel. It is designed with an indexed rotary head for reproducible, independent crimp height adjustment of both the wire and insulation.
Terminal Type: rear feed reeled terminals
Terminal Pitch: Max. 40mm
Terminal Thickness: 1.2mm
Feed Type: pneumatic feed
Wire Cross Section: 10mm2 (AWG 8)
Press Stroke: 30mm
Crimping Height (Shut Height): 119.7mm
Crimp Height Adjustment: 0.01mm resolution, 2.7mm range
Net. Weight: 4.5Kg
Dimension: 225×85×165mm
