This pneumatic terminal crimping machine is specifically designed for processing tubular insulated terminals without requiring electrical connection. Operating solely on compressed air, it delivers reliable crimping performance in various industrial environments.
The machine features an innovative square change-free crimping die system that eliminates the need for die replacement when working with different terminal sizes. This flexible design enables efficient processing of tubular terminals ranging from 0.25 to 6mm² wire cross-sections.

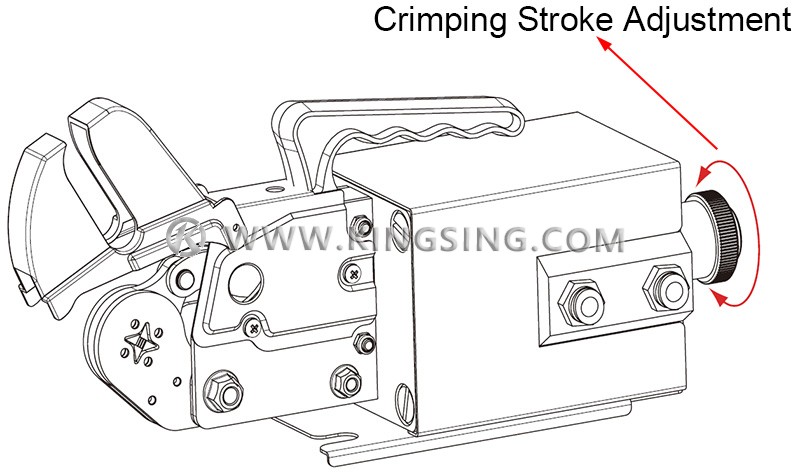

With stepless adjustment capability, operators can precisely set crimping specifications to achieve consistent, high-quality connections. The compact and portable design makes it ideal for both production line integration and field service applications.
Perfect for electrical manufacturing, automotive wiring harness production, and maintenance operations where reliable terminal connections are essential for system performance and safety.
| Terminal Type | Tubular insulated terminal |
| Applicable Wire Diameter | 0.25–6 mm² |
| Crimping Force | 13.5 KN |
| Crimp Shape | Square |
| Terminal Size | L2 ≤ 12 mm
|
| Air Pressure | 0.6–0.8 MPa |
| Net Weight | 5.5 kg |
| Dimensions | 260 × 120 × 140 mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
