Wire Cutting & Stripping Machine

Model
KS-09K
Brand
KINGSING
Price
Inquiry
  1. Description
  2. Specification
  3. Application
  4. Wear Parts

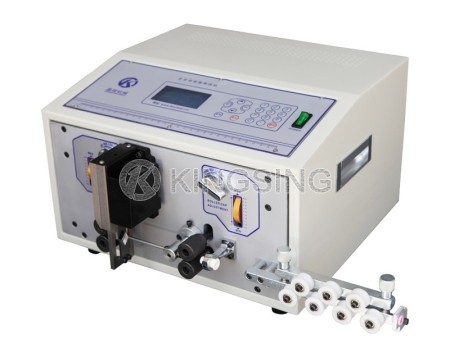

KS-09K is a basic type of thick wire/cable stripping machines, it is designed relatively compact and lightweight, easy to transport. It delivers an extraordinarily wide range of applications, simple handling and increased productivity. Rated for high power, the cutting unit performs perfect cuts of stranded wires up to 16mm². Wire feeding, cutting and stripping are all integrated as a one, allowing these units to be expanded into a highly automatic stripping machine. KS-09K satisfies the ever tougher quality requirements in wire processing, especially for its affordable price level and wide processing range. This stripping machine supports multiple working mode, such as long wire cutting and stripping, multiple layer wire cutting and stripping, jacket wire cutting and stripping, multiple place middle stripping, etc. All process parameters can be saved along in the touch screen. The user has his choice of rubber rollers or iron rollers depending on his requirements. This stripping machine is equipped with superior tungsten steel blades/knife, guarantee smooth and stable working performance.

10mm<sup>2</sup> 10mm<sup>2</sup> BV Wire

Available Wire Size: 0.1 ~ 16mm² (AWG30 ~ AWG5)
Max. Conduit Diameter: Φ10mm
Cutting Length: 5 ~ 20001mm
Stripping Length: Head 0~99mm, End 0~70mm
Max. Middle Stripping Section: 13 places (2 places stripping length can be set independently)
Memory Function: Max. 99 group of programs
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Speed: 2000pcs/hour
Drive Mode: 4-wheel drive
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Power Rating: 450W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 36Kg
Dimension: 420 × 390 × 280mm
