Desktop Multi-core Sheath Wire Stripping Machine

  • Model:KS-W030 Series
  • Wire Size:
  • Net. Weight:
  • Dimension:

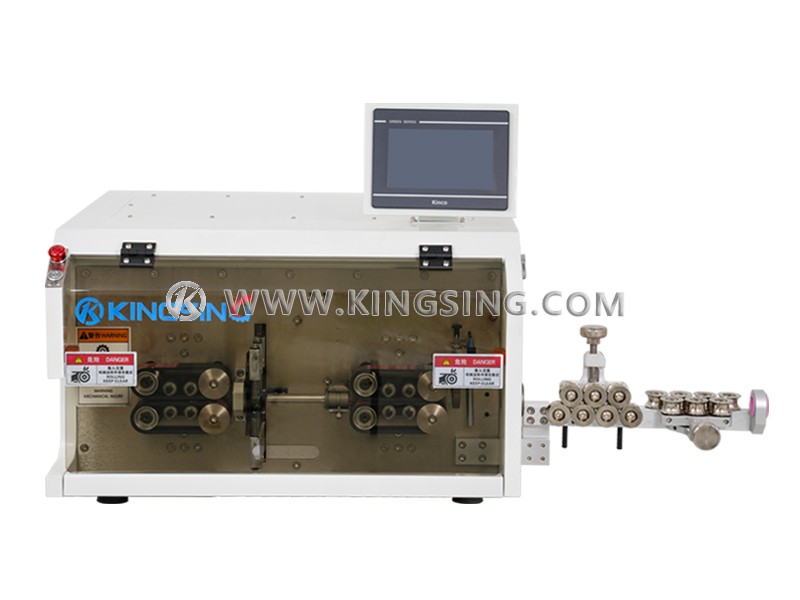

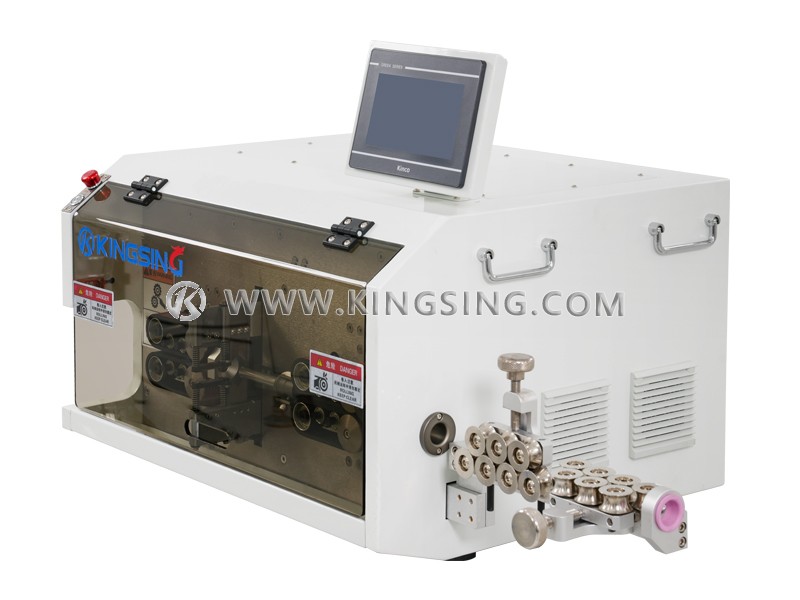

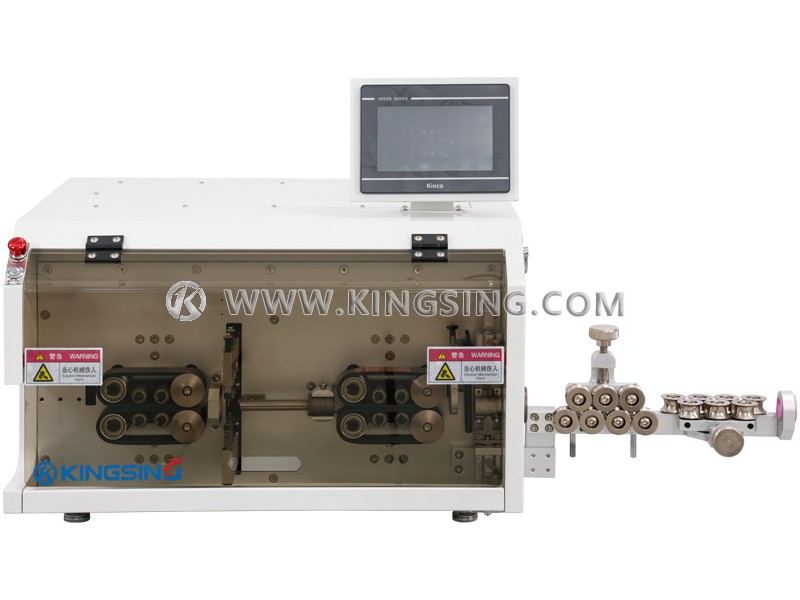

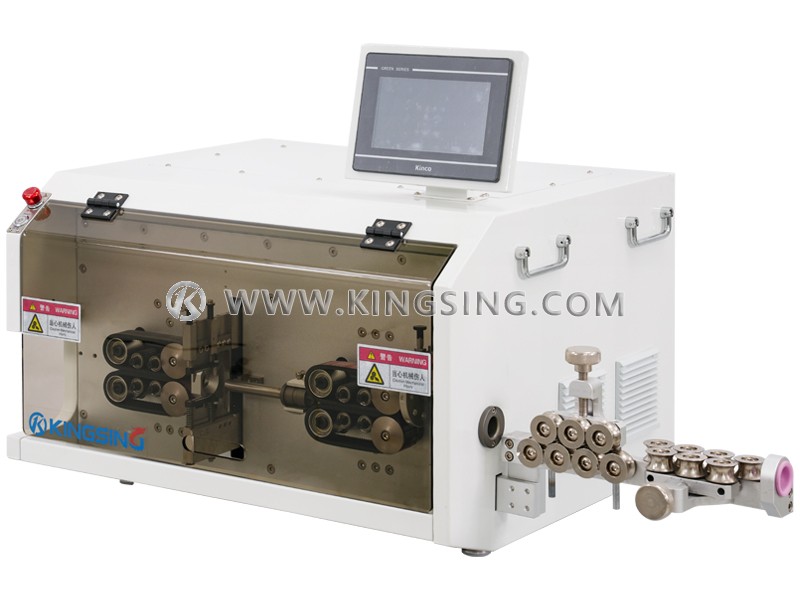

  1. This series of wire stripping machines includes 6 sub-models (see technical parameters for details), which are specially designed for processing multi-core sheathed wires. The outer sheath and core wire can be stripped at a time, and some models also support the core wire twisting function. The cutter holder adopts a double-blade structure. The round blade is used for stripping the outer sheath, and the flat blade is used for stripping the core wire. The cutter holder automatically shifts to switch the appropriate blade. This machine can also be used to process common wires and has a wide range of applications.

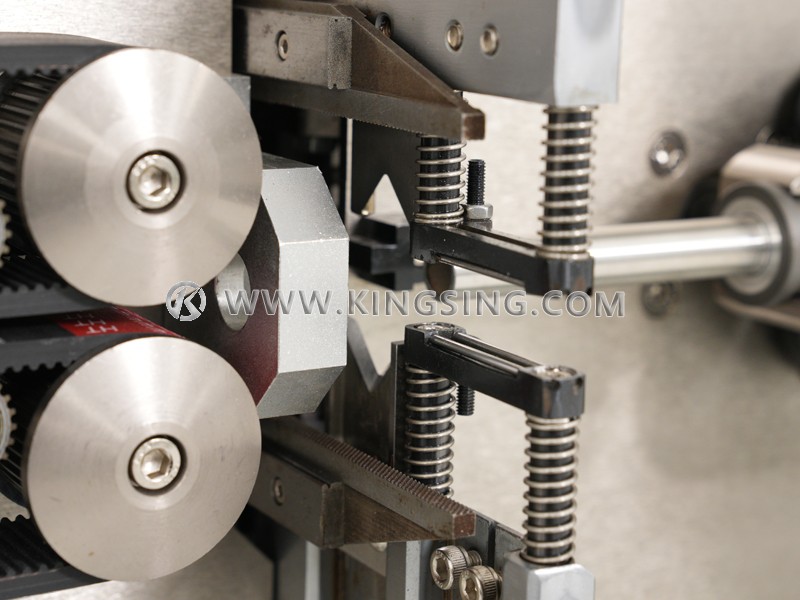

  2. The belt feeding replaced the traditional roller feeding, which greatly increased the contact area of the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The cutter holder is driven by a high-precision servo motor, which is fast and powerful.

  3. The upper and lower sets of wire feeding rollers are driven by positive and negative screw rods, which can be opened and closed at the same time, when processing wires of different thicknesses. The position of the center line of the wire can always be kept unchanged, and the wire is always aligned with the center of the blade opening, which can effectively prevent the stripping from tilting. The pressure of the wire feeding rollers can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

  4. This machine also has the function of automatic roller lifting and conduit jumping. The automatic roller lifting means that the output roller can automatically open for avoidance when stripping the wire head. The conduit jumping function means that when the wire tail is stripped, the wire conduit is automatically lifted to avoid collision, which greatly increases the stripping length range.

  5. The program memory function can store the processing parameters of different wires into different program numbers, and can save up to 100 groups of programs. When processing the wire again, the corresponding program can be called out with one key. One machine can complete the processing of various types of wires, which is very versatile.

  6. Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:

  • A slitting jig can be added. For wires with a long stripping length and a tight sheath, the slitting jig can be used to split the wire sheath on both sides to reduce the stripping resistance.

  • Add inkjet printers, wire number hot stamping machines and other equipment to realize marking while stripping wires.

  • Optional computer industrial control system (Windows operation interface), supports MES system and document import, remote order dispatch, automatic marking, etc.

Download: (1) (2)
ModelFeaturesHardware Configuration

KS-W030

Sheath wire inner and outer stripping standard machine, which can strip the outer sheath and core wire at the same time

Servo cutter

KS-W030S

For high-end models, the cutter holder and feeding roller are both servo motors

Servo cutter, servo feeding

KS-W030A

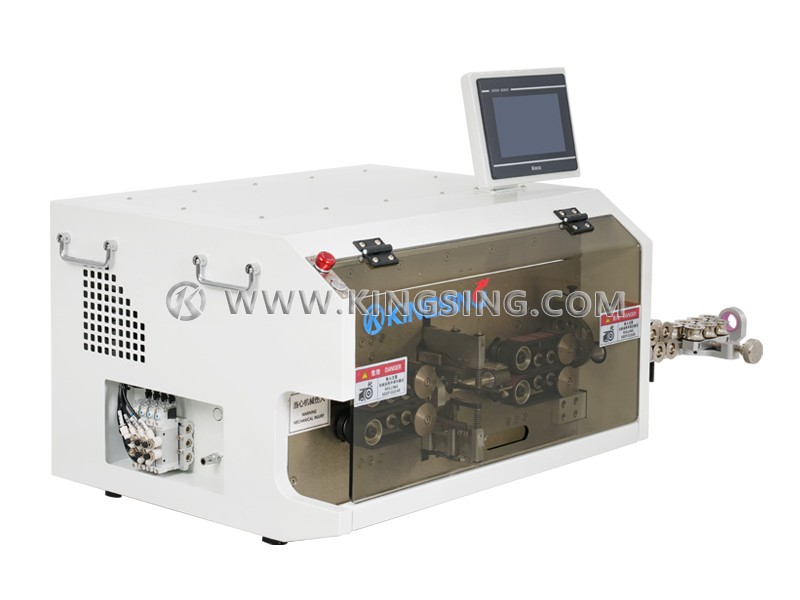

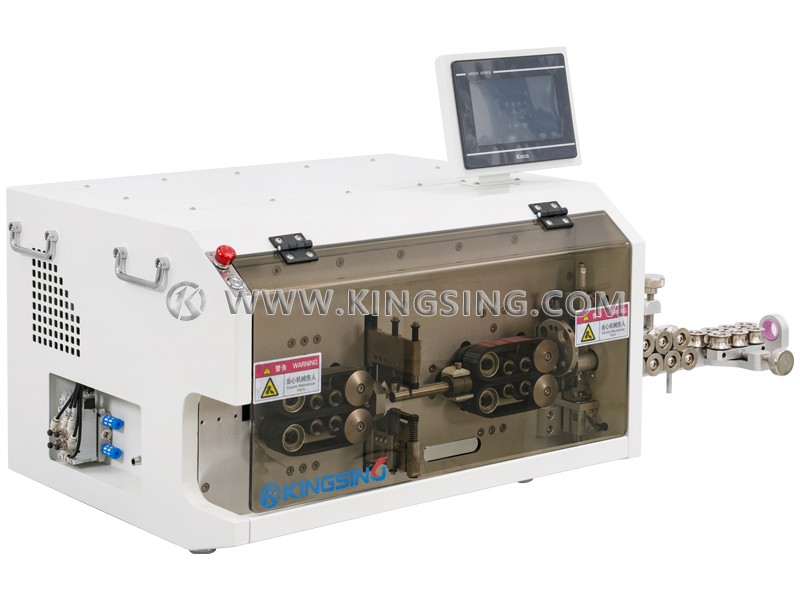

Equipped with a take-up manipulator, it is convenient to install an automatic take-up conveyor belt

Servo cutter

KS-W030M

With middle stripping and slitting function, suitable for middle stripping and extra long stripping

Servo cutter

KS-W030T

With core wire twisting function, the core wire can be automatically twisted after stripping

Servo cutter

KS-W030AT

With the core wire twisting function, it is also equipped with a wire taking manipulator

Servo cutter
KS-W0305
50mm2 enlarged sheath wire inner and outer stripping machineServo cutter

Applicable wire diameter: 1.0 ~ 30.0mm² (AWG18~2)

Full stripping length range: wire head 0~120mm, wire tail 0~80mm

Maximum half-stripped length: wire head 1000mm, wire tail 350mm (according to wire material)

Maximum cutting length: 100m (longer can be customized)

Operation interface: 7-inch color touch screen

Program memory: up to 100 groups of programs can be stored

Machine appearance: Multiple options (same function, but different appearance)

Cutting accuracy: 0.002*L (L refers to the cutting length)

Working voltage: 220V 50Hz

Rated power: 1000W

Net weight: 90~100kg

Dimensions: 845*540*625mm


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
