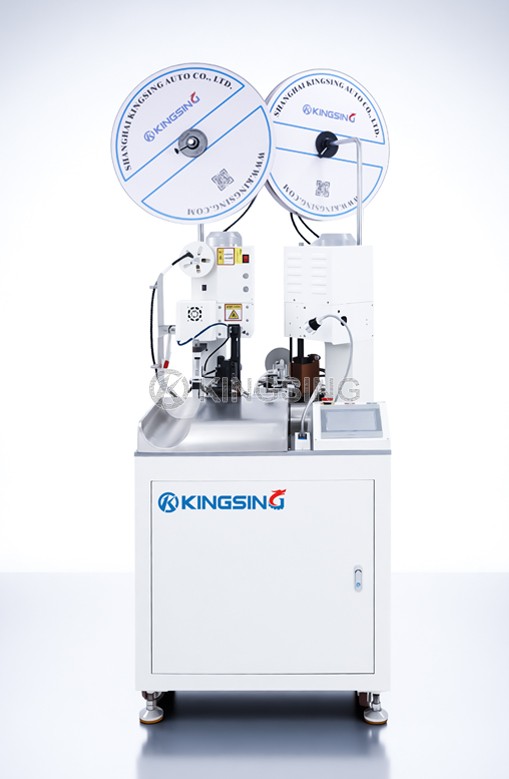

Two-sided Automatic Terminal Crimping Machine

  • Model:KS-T30 Series
  • Net. Weight:
  • Dimension:
  1. This is a general-purpose double-sided fully automatic crimping machine, which integrates functions such as wire cutting, stripping, and crimping terminals. It can crimp all kinds of cross-feed terminals, straight-feed terminals, and flag-shaped terminals. It is also suitable for crimping bulk terminals. Bulk terminals can be automatically fed through the vibrating plate. The terminal machine is integrally formed of ductile iron, which has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it will automatically alarm and stop. When processing long wires, you can also choose a conveyor belt, which can put the processed wires straight and neatly into the receiving tray.

  2. Adopting the concept of flexible design, one machine can process a variety of different products. When replacing wires and terminals, you only need to replace the corresponding wire inlet conduit and crimping applicator. The program memory function can save the processing parameters of different products in the database. When switching products, the corresponding processing parameters can be called out with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Download: (1) (2) (3)
ModelKS-T301KS-T302KS-T303
Cutter motorStepper MotorServo MotorServo Motor
Translation motorStepper MotorServo MotorServo Motor
Crimp motor

Frequency Conversion Motor

Frequency Conversion MotorServo Motor

Applicable wire diameter: AWG30~14 (0.1~2mm2)

Applicable terminal: cross-feed terminal, direct-feed terminal

Cutting length: 40~3000mm (can be customized)

Stripping length: ≤12mm

Cutting tolerance: ±(0.5+L*2‰)mm L=cutting length

Crimping force: 2T

Crimp stroke: 30mm (40mm stroke can be customized)

Production efficiency: 3000~4000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Dimensions: 840*770*1860mm

Optional configuration: long wire conveyor belt, crimping force monitor, safety shield

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
