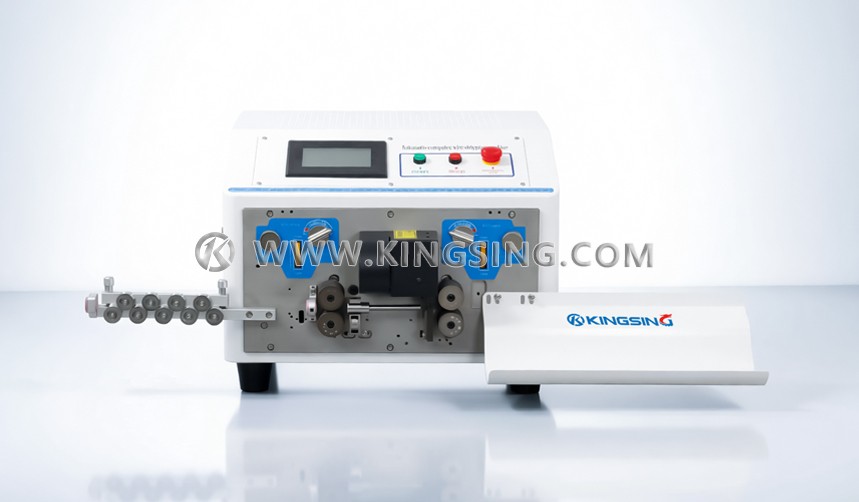

Touch Screen Version Left-feed Wire Stripping Machine

  • Model：KS-W125 series
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

  1. This is a general-purpose four-wheel drive wire stripping machine with left feed, including 7 sub-models (see technical parameters for details), and the wire feeding wheel can choose rubber wheel or iron wheel. It is suitable for processing various BVR electronic wires, BV hard wires, sheathed wires, etc. The processing parameters of different wire materials are saved in different program numbers, and the corresponding processing parameters can be called out with one key when switching wire materials.

  2. Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as cutting length, stripping length, cutting depth, retracting and output can be set freely in the program. There are single-step mode and automatic mode in the program. In single-step mode, one step of action can be executed every time the button is pressed, which is convenient for debugging parameters.

  3. The top of the machine is equipped with an emergency stop button, which is convenient for emergency shutdown. In addition, a safety protective cover can be selected, and the machine will automatically alarm and stop after opening the protective cover.

Download: (1) (2) (3)
ModelWire Size RangeStripping Length

KS-W125B

(Single Wire)

0.1 ~ 10.0mm²

AWG28~7

Head: 0~30mm

Tail: 0~15mm

KS-W125C

(Double Wires)

0.1 ~ 4.0mm²

AWG28~12

Head: 0~30mm

Tail: 0~30mm

KS-W125D

(Four Wires)

0.1 ~ 2.0mm²

AWG28~14

Head: 0~30mm

Tail: 0~30mm

KS-W125F

(Tube Jump)

0.1 ~ 8.0mm²

AWG28~8

Head: 0~30mm

Tail: 0~30mm

KS-W125G

(Roller Lift)

0.1 ~ 10.0mm²

AWG28~7

Head: 0~120mm

Tail: 0~30mm

KS-W125H

（16mm²）

1.0 ~ 16.0mm²

AWG18~6

Head: 0~30mm

Tail: 0~15mm

KS-W125K

（25mm²）

1.0 ~ 25.0mm²

AWG18~4

Head: 0~30mm

Tail: 0~15mm

Display Mode: 4.3 inch color touch screen

Working Mode: automatic mode, jog mode

Cutting Length: 0~99999.99mm

Cutting Tolerance: 0.002*L (L means cutting length)

Working Voltage: 220V/50Hz

Program Memory Function: save up to 100 sets of data

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
