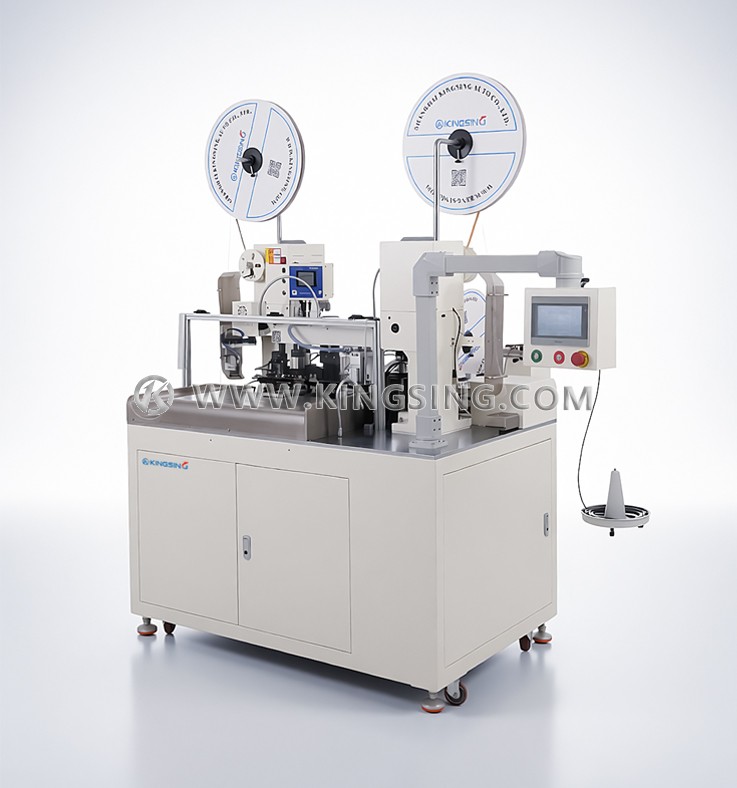

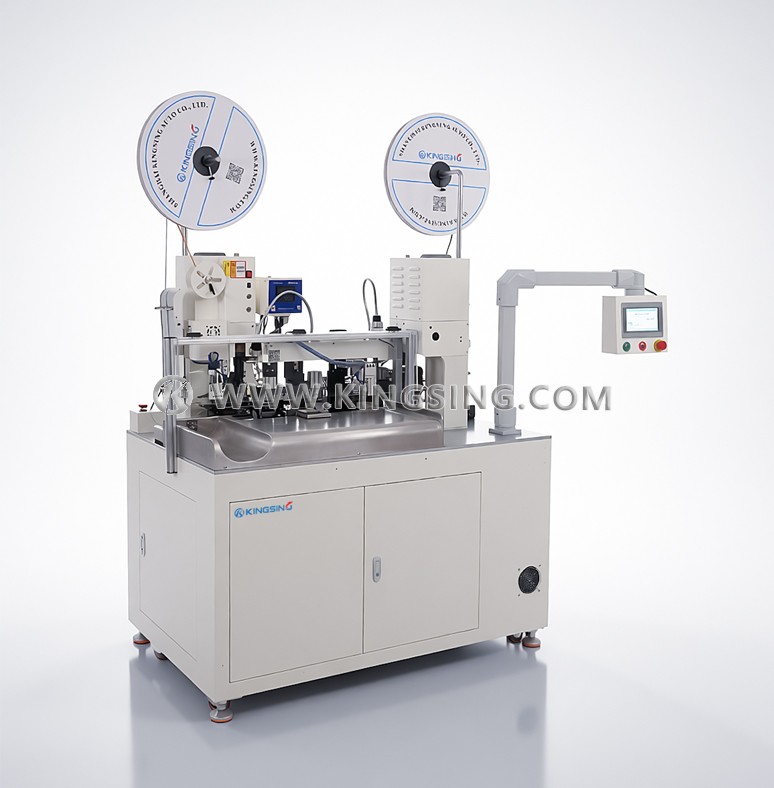

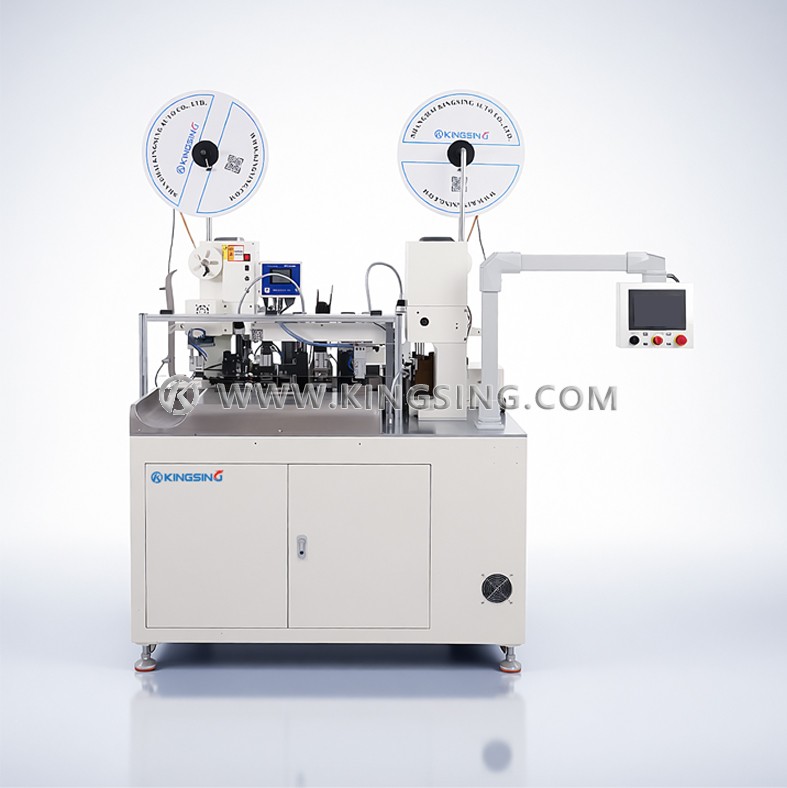

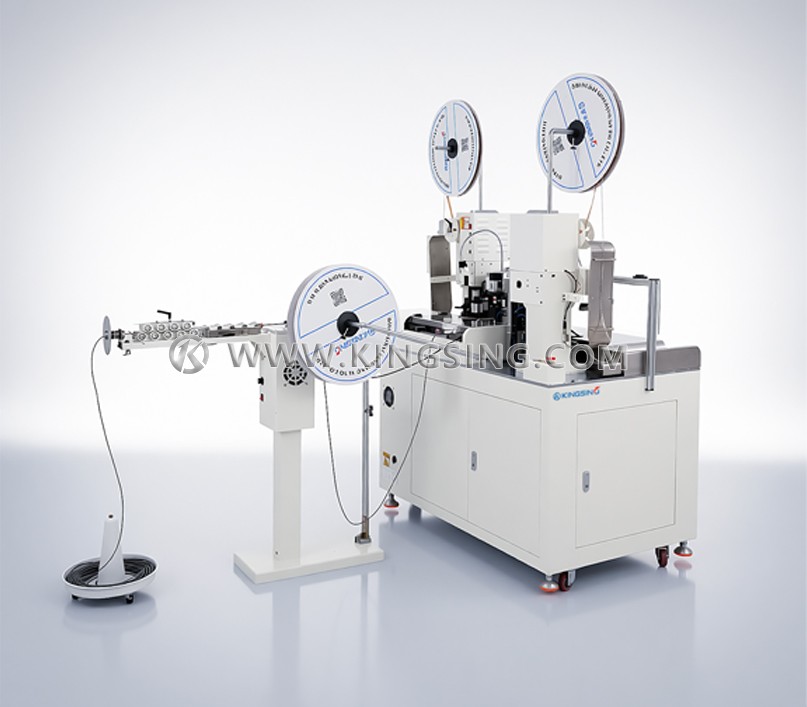

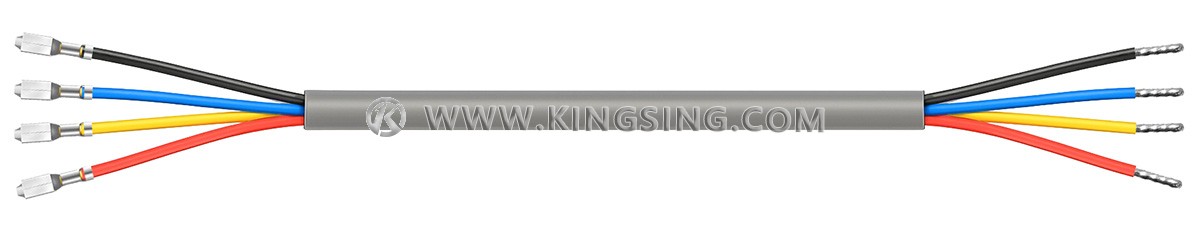

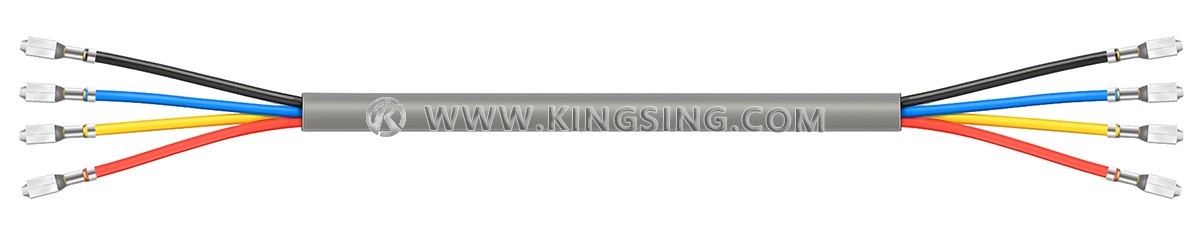

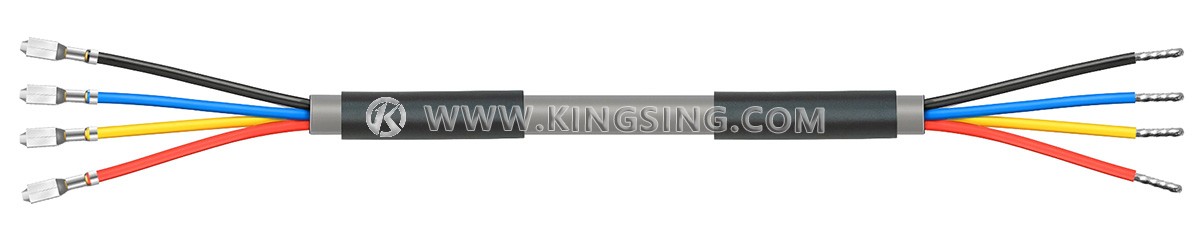

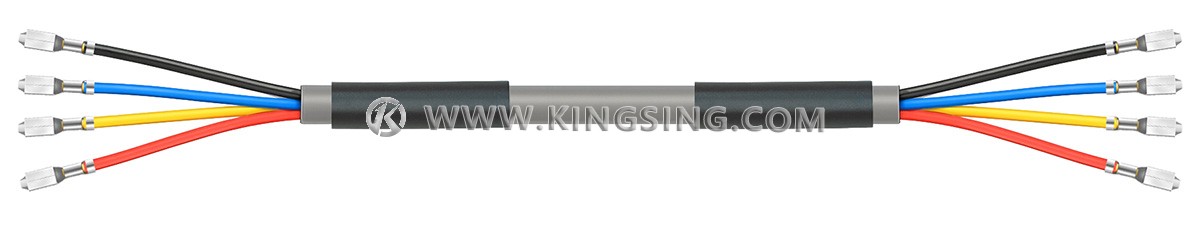

Multi-core Cable Stripping Crimping and Shrink Tube Inserting Machine

  • Model:KS-T3042
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for processing multi-core sheathed wires. It can process 2~13 cores sheathed wires. Heat-shrinkable tube and other functions are integrated. The plate-mounted heat-shrinkable tube can be cut to a fixed length. Before crimping the terminal, the heat-shrinkable tube is inserted into the wire, which has a high degree of automation and can greatly save labor.

  2. The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program, for example, the function of inserting heat shrinkable tube can be closed. When replacing wires and terminals, it is only necessary to replace the corresponding crimping mold and the corresponding positioning jig for inserting the heat shrinkable tube. The use of the machine is flexible. After the current product is produced, it will not cause idle waste of the machine, and it can be easily switched to produce other products.

  3. Both the wire cutting and stripping and translation mechanism are driven by high-precision servo motors, and the cutting blade adopts a positive and negative screw structure, with high stripping precision. This machine uses a translation mechanism to replace the traditional rotation mechanism. The wire is always kept straight during the processing process, and the positioning is accurate, which effectively solves the instability problem caused by the bending of the wire, and can easily handle various high-standard wire processing.

  4. The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height. It can be equipped with a terminal pressure monitor to monitor the pressure curve changes of each crimping process in real time. When the pressure is abnormal, it can automatically alarm and stop. In addition, a visual inspection system can also be selected to inspect the appearance and size after crimping to ensure product quality. The standard terminal crimping machine is driven by a variable frequency motor, and a servo terminal crimping machine can also be selected.

  5. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

Download: (1) (2)

Applicable wire: multi-core sheathed wire (2~13 cores)

Cable outer diameter: Φ3~7mm

Core wire range: AWG28~18 (0.1~1.0mm2)

Other conditions: there must be no other fillers between the outer sheath and the core wire, such as braided mesh

Cutting length: 120~9999mm (can be customized)

Stripping length of the outer sheath: thread head 30~120mm, thread tail 30~60mm

Core wire stripping length: ≤8mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰)   L=cutting length

Maximum pressure: 2T (3T models can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminal: horizontal feed terminal, straight feed terminal

Production efficiency: 800~1000 pieces/hour (5-core sheathed wire, 500mm)

Operation interface: color touch screen

Air pressure: 0.5~0.8Mpa

Rated power: 2300W

Working voltage: 220V 50/60Hz (110V can be customized)

Dimensions: 1450*900*1560mm

Main function: double-head crimp terminal, insert 2 heat shrinkable tubes

Optional configuration: long wire conveyor belt, safety shield, terminal pressure monitor, servo terminal machine, computer industrial control system

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
