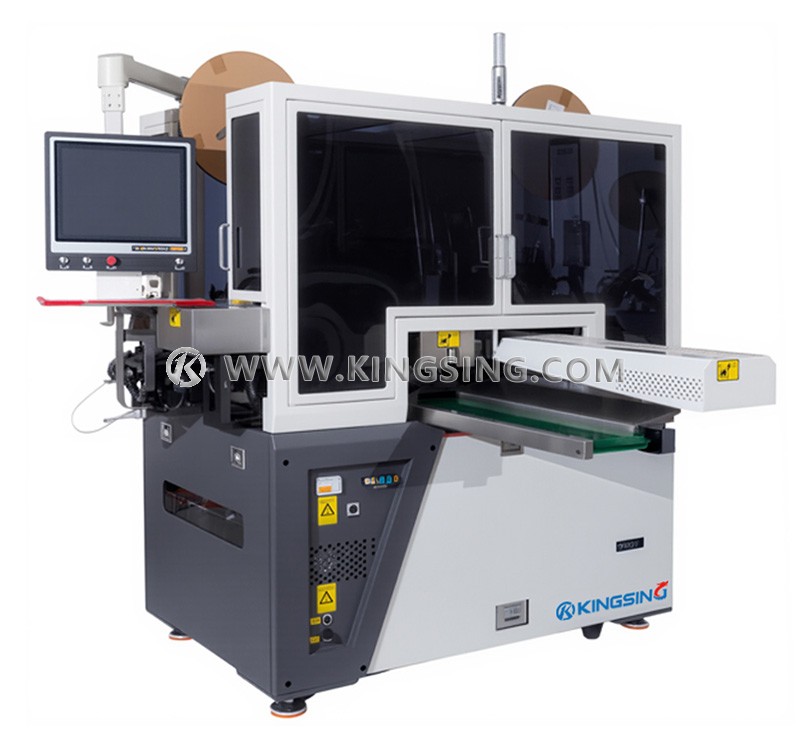

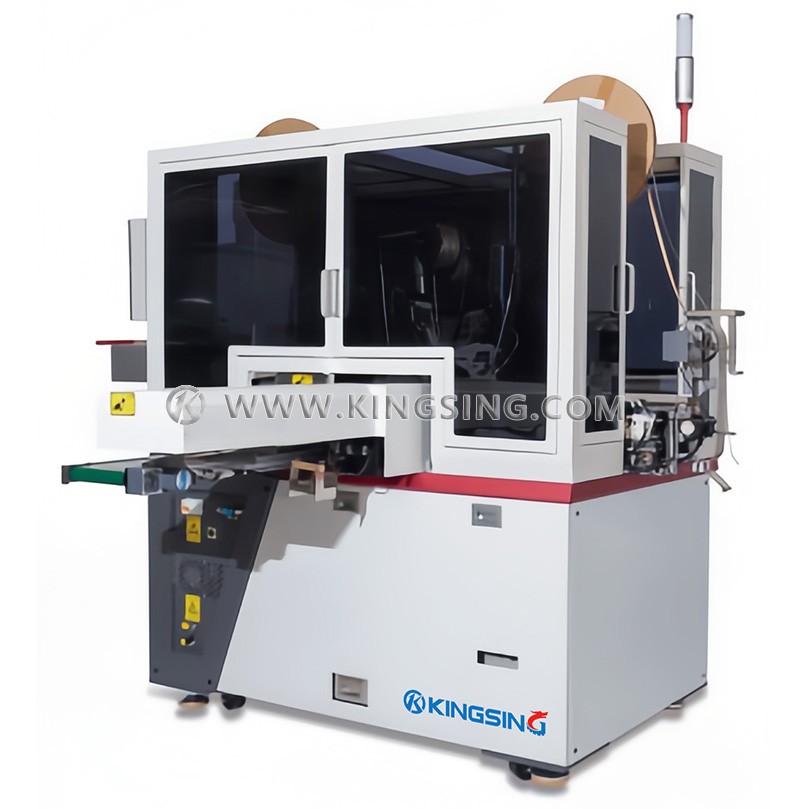

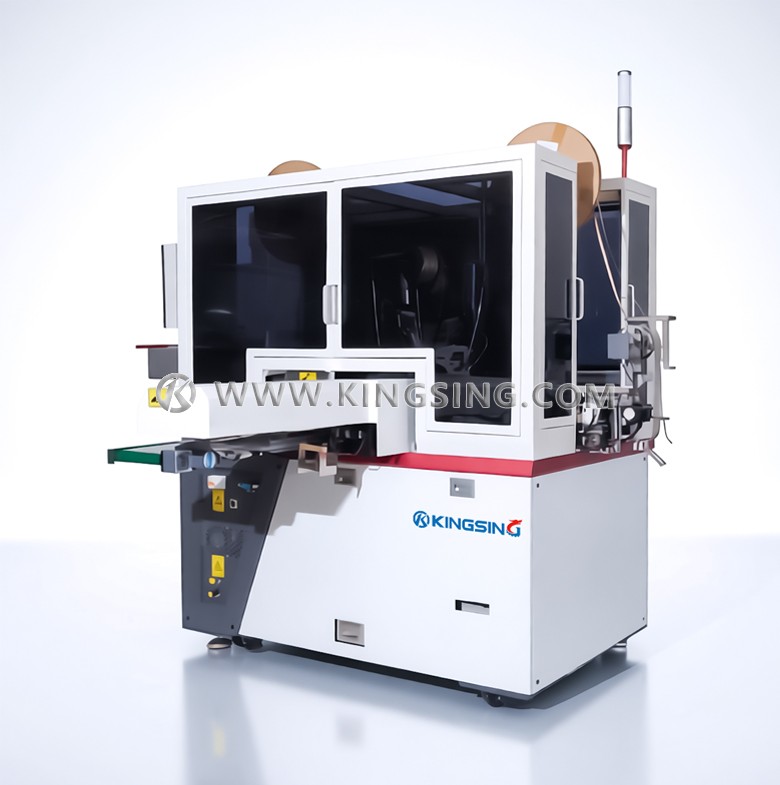

Fully Automated IDC Connector Assembly Machine

This fully automated IDC connector crimping machine streamlines insulation displacement connector processing with its advanced dual-end crimping capabilities. Designed for high-efficiency production, it automates the feeding and crimping of boxed IDC connectors, reducing manual intervention.

The machine is ideal for handling multiple connector sets simultaneously, enhancing throughput for high-volume operations. It supports flexible configurations, processing up to four sets of 2-pin IDC connectors or two 4-pin sets concurrently, significantly boosting manufacturing productivity.

With advanced customization options, this system allows hybrid processing — one end can manage piercing-style IDC termination while the other performs terminal crimping and housing insertion. The model even incorporates optional automatic tinning for applications requiring wire tinning on one end.

Equipped with comprehensive safety features, including full enclosure guards and an integrated conveyor for automated product handling, it ensures secure and efficient operation. The intuitive Windows-based control system and integrated CCD visual inspection uphold stringent quality standards, minimizing manual quality checks.

This versatile IDC processing machine is essential for industries like consumer electronics, automotive wiring harness production, and industrial cable assembly, offering enhanced efficiency, reduced labor requirements, and high-quality output in demanding production environments.
