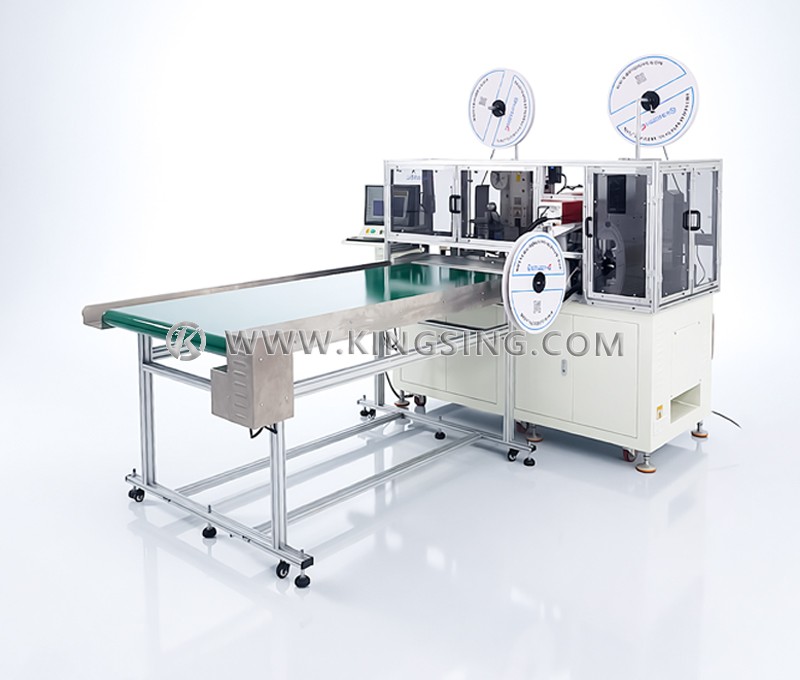

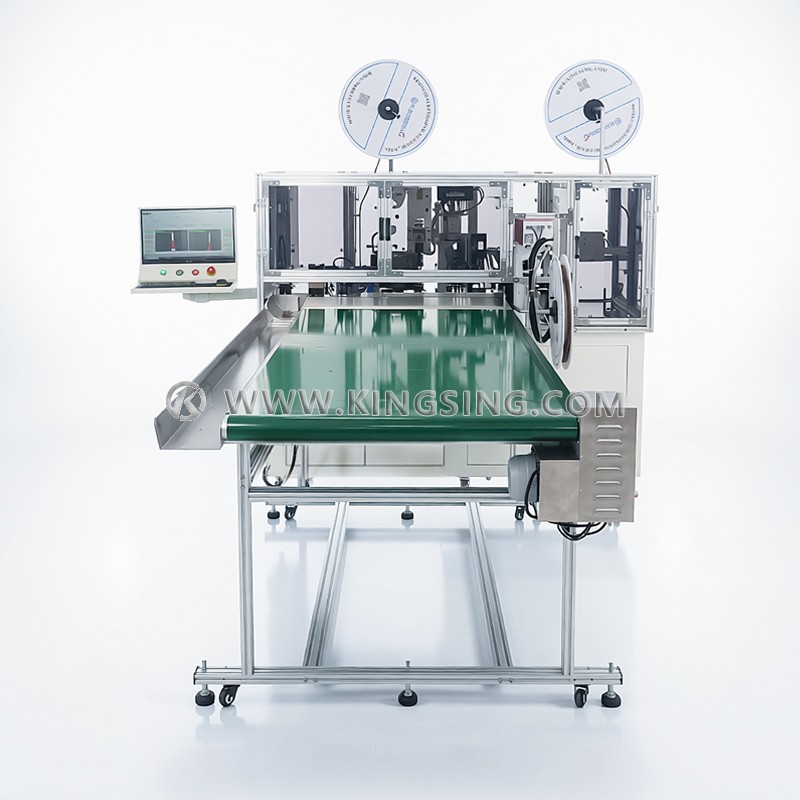

Fully Automatic 2-sided Terminal Crimping Machine

  • Model:KS-T3103
  • Net. Weight:
  • Dimension:
  1. This is an automatic laser marking double-sided insertion number tube and crimping machine that supports the use of both PVC number tubes and heat shrink tubes. After printing, the heat shrink tube can be automatically pushed to the designated position and heated and shrunk in place. The coding method can be optionally equipped with laser marking or ribbon thermal transfer. The coding content is controlled by computer software and supports different printing content for each wire. Data can be imported in batches through Excel tables to produce wires with different cutting lengths and different coding contents at one time. The built-in network interface can be connected to the MES system through the LAN to realize remote reading or setting parameters, remote release of production tasks and other functions.

  2. This machine is also suitable for crimping various pre-insulated terminals. It has a built-in twisting function, which can twist the copper wires together and then insert them into the inner hole of the terminal for crimping, effectively preventing wire reversal. It is recommended to use connected pre-insulated terminals. Our company can provide various specifications of connected pre-insulated terminals specially developed for automatic machines. It also supports the use of bulk terminals. Bulk terminals need to be automatically fed by a vibrating plate. Different types of terminals need to replace the vibrating plate.

  3. Adopting a modular and flexible design concept, the whole machine can easily process a variety of different products. Each functional module can be freely turned on or off in the program. For example, the function of inserting heat shrink tube can be turned off. When replacing wires and terminals, you only need to replace the corresponding crimping applicator and insertion jig. The machine is flexible in use. After production is completed, the machine will not be idle and wasted, and it can be easily switched to produce other products.

  4. The wire cutting, stripping and translation mechanisms are all driven by high-precision servo motors. It adopts a belt feeding mechanism to ensure precise wire feeding length without damaging the core sheath; the cutter adopts a positive and negative screw structure to ensure high precision in wire stripping. The terminal crimping machine is made of ductile iron and is integrally formed. The whole machine has strong rigidity and the crimping height is stable. It can also be equipped with a terminal pressure monitor to monitor the pressure curve changes in each crimping process in real time. It can automatically alarm and shut down when the pressure is abnormal. In addition, a visual inspection system can be selected to inspect the appearance and size after crimping to ensure product quality. The crimping machine is driven by a variable frequency motor as standard, and a servo terminal crimping machine is also optional.

KINGSINGKINGSING

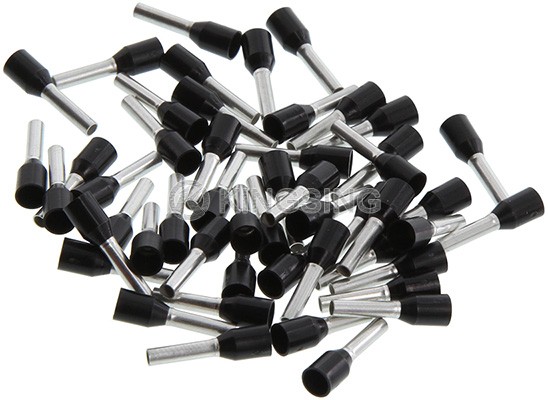

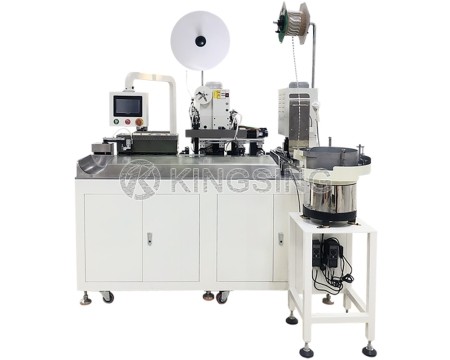

Bulk TypeReel Type
Download: (1)

Applicable Wire Diameter: AWG24~9(0.2~6mm2)

Crimping Stroke: 30mm (40mm stroke model can be customized)

Function: Wire cutting, stripping, terminal crimping, tube insertion, printing

Crimping Force: Standard 2T (3T models can be customized)

Applicable Terminals: Joint insulated terminals (loose terminals can be equipped with vibrating plate feeding)

Capacity: 1600~2000pcs/hour (double ends insert heat shrinkable tubes, depends on the cutting length)

Stripping Length: ≤14mm (can be customized)

Cutting Accuracy: ±(0.5+L*2%o)L=cutting length

Tube Positioning Accuracy: ±0.5mm

Crimping Motor: Servo Motor

Cutting Length: 70~9999mm

Rated Power: 2500W

Net Weight: 800KG

Dimension(LxWxH): 2050*1350*1750mm

Display Mode: Computer industrial control system

Work Voltage: AC220V/50Hz Single Phase (110V can be customized)

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Print Function: Built-in 2 laser marking machines (also optional ribbon printer)

Control Mode: MSP430E microcontroller, 165NA/MIPS working mode, 5US standby wakeup, high-speed computing

Detection Device: 1.Lack of wire 2. Wire Knotting 3. Air pressure detection 4. Door opening5. Terminal crimping detection 6. Machine is abnormal 7. Total quantityreached

Optional Parts: 1.OTP applicator and blades 2. Vertical wire pre-feeder 3. Reel type wire prefeeder 4. Long wire conveyor belt 5. Crimping force monitor 6. Visual inspection system 7. Laser marking system 8. Computer industrial control system 9. Protective cover

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
