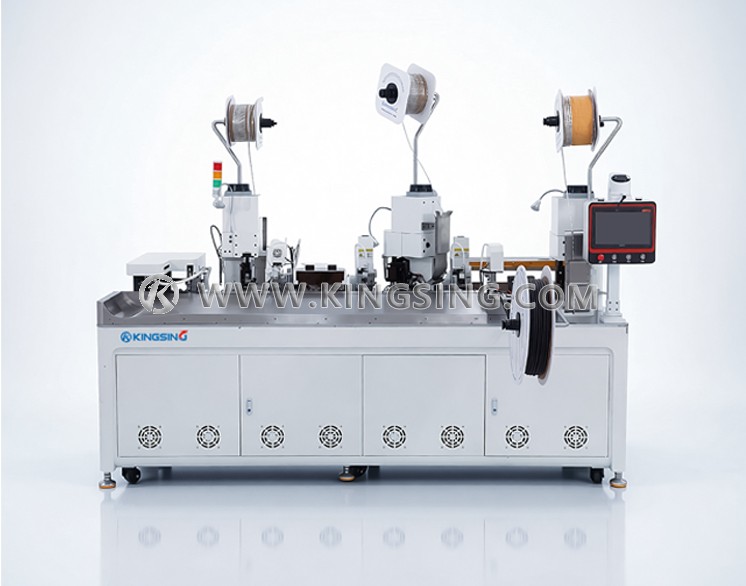

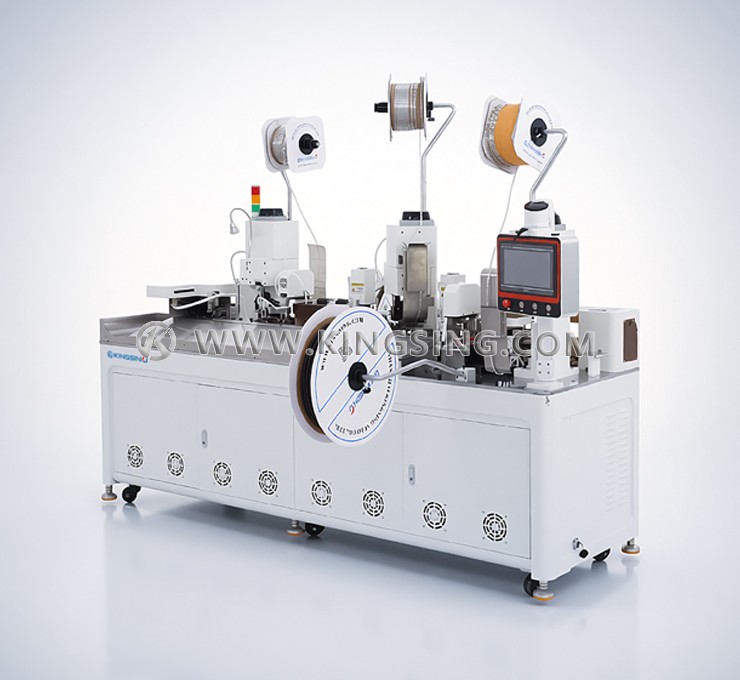

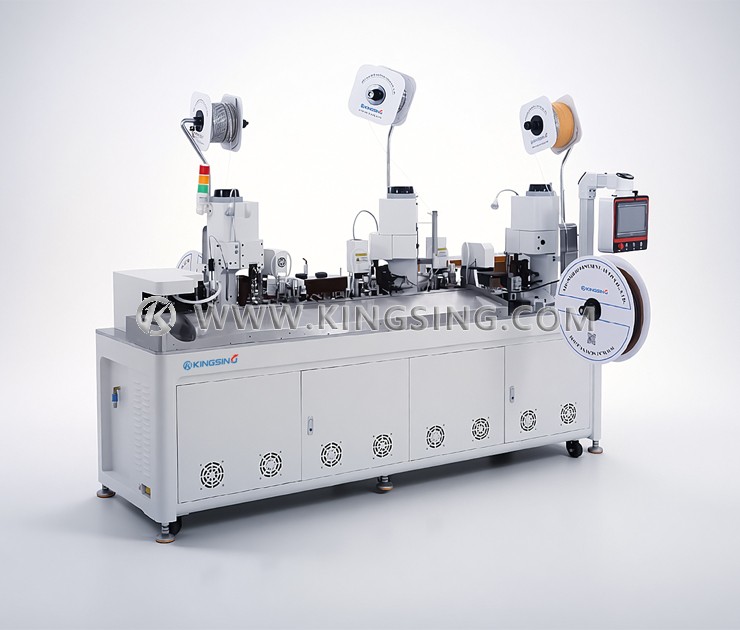

Automatic Double-combined Wire Heat Shrink Tubing Insertion and Crimping Machine

  • Model:
  • Net. Weight:
  • Dimension:

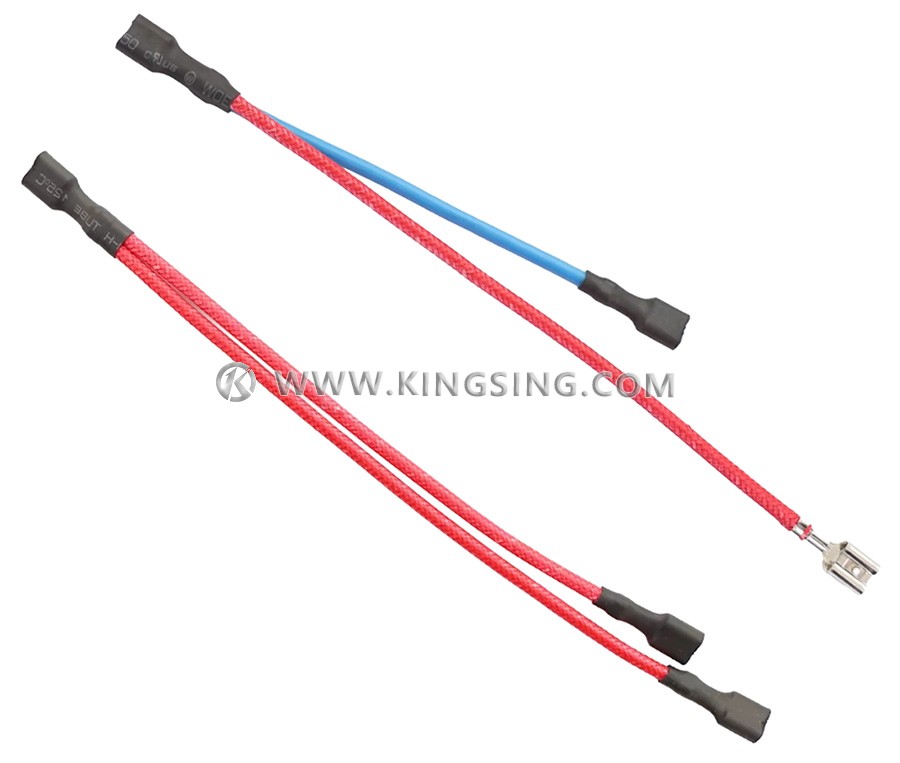

  1. This is an automatic two-wire combination crimping and heat shrink tube insertion machine that integrates wire cutting, stripping, heat shrink tube inserting, terminal crimping, heating and shrinking and other functions. Built-in 2 sets of wire entry mechanisms, 3 crimping stations and 2 heat shrink tube insertion stations. It supports processing two wires of different diameters at the same time, and can insert two heat shrink tubes of different inner diameters respectively. Up to 3 ends of the heat shrinkable tube can be inserted, that is, one end of the combined crimping joint and the other two ends are inserted into the heat shrinkable tube.

  2. Adopting the concept of modular and flexible design, one machine can process a variety of different products. When replacing terminals, you only need to replace the corresponding crimping applicator. The color touch screen operation interface makes parameter settings intuitive and easy to understand. The program memory function can save the processing parameters of different products into the database. When switching products, the corresponding processing parameters can be recalled with one click. Each functional module can be freely turned on or off in the program. For example, you can turn off the heat shrink tube insertion function, crimping function, etc.

Download: (1) (2)

Applicable wire diameter: AWG28~16 (0.1~1.5mm2)

Cutting length: 50~9999mm (can be customized)

Stripping length: ≤10mm (can be customized)

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2T (3T model can be customized)

Crimping stroke: 30mm (40mm stroke can be customized)

Applicable terminals: cross feed terminals, direct feed terminals, flag terminals, etc.

Production efficiency: 1000~1500 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.8Mpa

Power rating: 4000W

Power supply: 220V 50/60Hz (110V can be customized)

Net weight: 1000kg

Dimension: 2440*850*1600mm

Optional configurations: safety shield, crimping force monitor, visual inspection system, servo crimping machine

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
