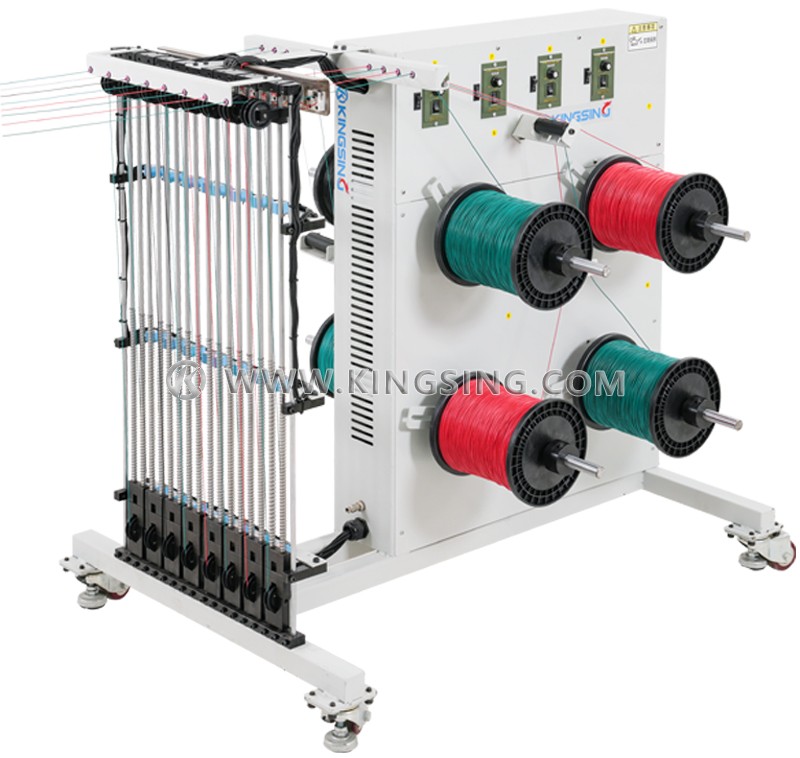

Eight Station Wire Spool Prefeeder

  • Model:KS-W2258S
  • Net. Weight:
  • Dimension:

The Eight Station Wire Spool Prefeeder KS-W2258S feeds the wire gently and continuously to the active wire storage, while the intake of the fully automatic wire harness processing machine takes the wire out of the storage in order to further processing, the wire is led under constant tension for trouble-free feeding. It features 8 wire feeding reels which driven by 8 independent motors, each of the 8 reels can work individually, the speed and rotating direction of each motor can be adjusted freely. Both loose wire and reel wire are applicable for this machine. Thanks to this wire prefeeder, it is possible to run the fully automatic wire harness processing machines at a high speed without worrying about the feeding capacity.

Download: (1)

Available Wire Diameter:Φ0.5-4mm

Wire Spool Weight:Max.20kg

Scope Of Application:Reel wire or Loose wire

Wire Spool Diameter:Max. 300mm

Wire Spool Width:Max. 250mm

Wire Feeding Speed:0~1.5m/s (Adjustable)

Storage Capacity:About 1m

Power Supply:AC 220V 50/60Hz

Power Rating:980W

Dimensions (L×W×H):1200×1150×900mm

Net Weight:130Kg

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
