Ribbon Cable Tinning Crimping and Housing Insertion Machine

  • Model:KS-T512H
  • Net. Weight:
  • Dimension:

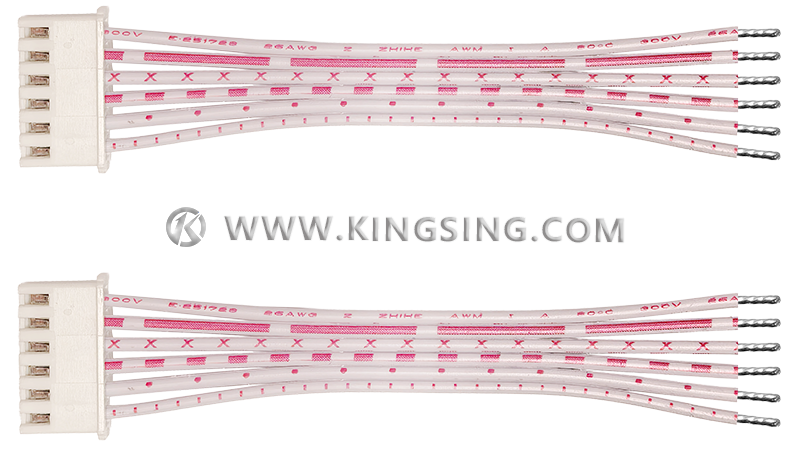

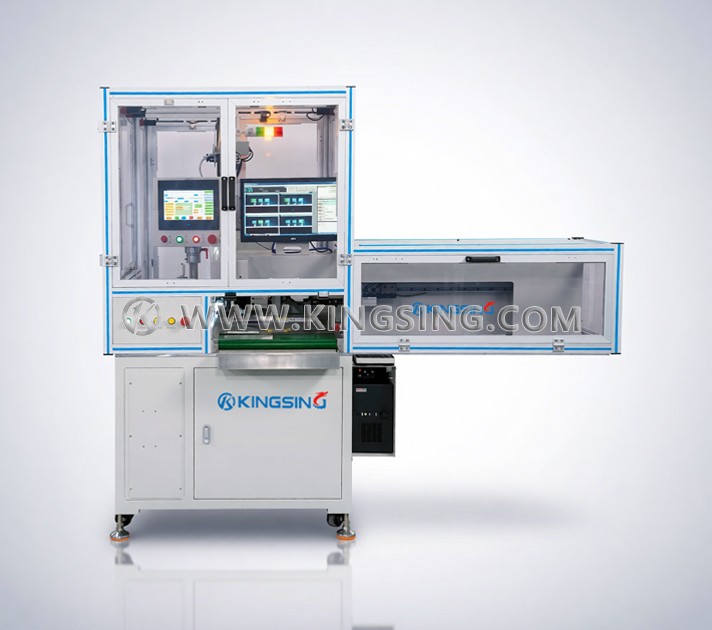

  1. This is a fully automatic tinning and casing insertion machine for wire arrangement, which is specially designed for processing flat wires. The length of the sub-wire can be set in the program, and the housing is automatically fed through the vibrating plate. For the flat wire with a small number of Pins, multiple groups of wires can be processed at the same time, which greatly improves the production efficiency. This machine also has a laser marking function, and the marking content can be input arbitrarily in the computer.

  2. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time. Each functional module can be turned on or off freely in the program. For example, after turning off the function of inserting housing, it can be used as an ordinary single-end twisting and tinning terminal machine. This machine is also equipped with CCD visual detection function, which can detect whether the color sequence of the wire harness is correct. If the operator reverses the front and back of the flat wire, the machine will not start.

  3. The wire cutting and stripping and translation mechanisms are driven by high-precision servo motors, and the cutter adopts a positive and negative screw structure, with high stripping precision. The terminal machine is integrally formed of ductile iron, with strong rigidity and stable crimping height. In addition, a terminal pressure monitor can be selected to monitor the pressure curve change of each crimping process in real time, and it can automatically alarm and stop when the pressure is abnormal.

Download: (1)

Main functions: Crimp terminals and insert housing on one end, tin on the other end, UV laser marking

Applicable wires: Cables within 24Pin, double combination cables, electronic cables

Applicable wire diameter: 0.1~1.0mm2 (AWG28~18)

Maximum width of cable: 28mm

Cutting wire length: 50~1000mm (can be customized)

Stripping length: ≤8mm

Cutting tolerance: ±(0.5+L*2‰)mm L=cutting length

Terminal machine pressure: 2T

Crimping stroke: 30mm (40mm stroke can be customized)

Applicable terminals: horizontal delivery terminals

Cable production efficiency: 700~900 pieces/hour (narrower cables can also be processed at the same time 2 or more)

Electronic wire production efficiency: 6000~10000 wires/hour (efficiency of processing 10 wires at the same time)

Operation interface: color touch screen

Air pressure requirement: 0.5~0.7Mpa

Power Supply: 220V 50/60Hz


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
