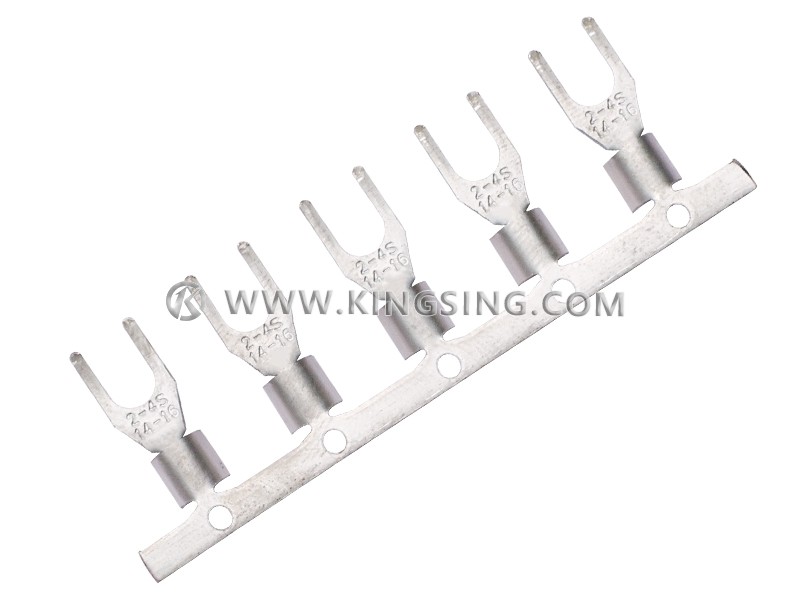

Non-Insulated Spade Terminal(apply in flexible wire)

  • Model:SNB2-4S
  • Net. Weight:
  • Dimension:
Item NoCable Size AWG
Thickness(mm)Max CurrentUSA ScrewScrew Dia.d2(mm)Dimensions(mm)
W L F EWsH
SNB 1.25-3
0.5~1.5(22~16)0.7519A #43.25.716.06.54.84.24.0
SNB 1.25-3.5S
#63.75.716.06.5
SNB 1.25-3.5L
#63.76.416.06.5
SNB 1.25-4S
#84.36.416.06.5
SNB 1.25-4M
#84.37.216.06.5
SNB 1.25-4L
#8 4.38.116.06.3
SNB 1.25-5S
#105.38.116.0 6.5
SNB 1.25-5L
#105.39.516.0 6.5
SNB 1.25-6S
1/46.49.516.0 6.5
SNB 1.25-6L
1/46.412.022.010.6
Item NoCable Size AWG
Thickness(mm)Max CurrentUSA ScrewScrew Dia.d2(mm)Dimensions(mm)
W L F EWsH
SNB 2-3
1.5~2.5(16~14)0.827A #43.25.716.06.54.85.05.0
SNB 2-3.5S
#63.75.716.06.5
SNB 2-3.5L
#63.76.216.06.5
SNB 2-4S
#84.36.416.06.5
SNB 2-4M
#84.37.216.06.5
SNB 2-4L
#8 4.38.116.06.3
SNB 2-5S
#105.38.116.0 6.5
SNB 2-5L
#105.39.516.0 6.5
SNB 2-6S
1/46.49.516.0 6.5
SNB 2-6L
1/46.412.022.011.0
Item NoCable Size AWG
Thickness(mm)Max CurrentUSA ScrewScrew Dia.d2(mm)Dimensions(mm)
W L F EWsH
SNB 3.5-3
2.5~4(14~12)1.037A #43.25.718.07.06.87.05.8
SNB 3.5-4S
#84.37.218.07.0
SNB 3.5-4
#84.38.018.07.0
SNB 3.5-5
#105.38.018.07.0
SNB 3.5-6
1/46.412.021.58.0
Item NoCable Size AWG
Thickness(mm)Max CurrentUSA ScrewScrew Dia.d2(mm)Dimensions(mm)
W L F EWsH
SNB 5.5-3.5
4~6(12~10)1.048A #63.77.218.07.56.88.0
6.6
SNB 5.5-4S
#84.38.319.07.0
SNB 5.5-4L
#84.39.019.07.0
SNB 5.5-5
#105.39.019.07.5
SNB 5.5-6S
1/46.49.019.07.5
SNB 5.5-6L
1/46.412.025.512.0
SNB 5.5-8
5/168.414.024.511.5

Terminal body:Copper

Plating:Tin
