Double Station Heat Shrink Tube Processing Equipment

  • Model:KS-H180
  • Net. Weight:
  • Dimension:1200×1054×990mm

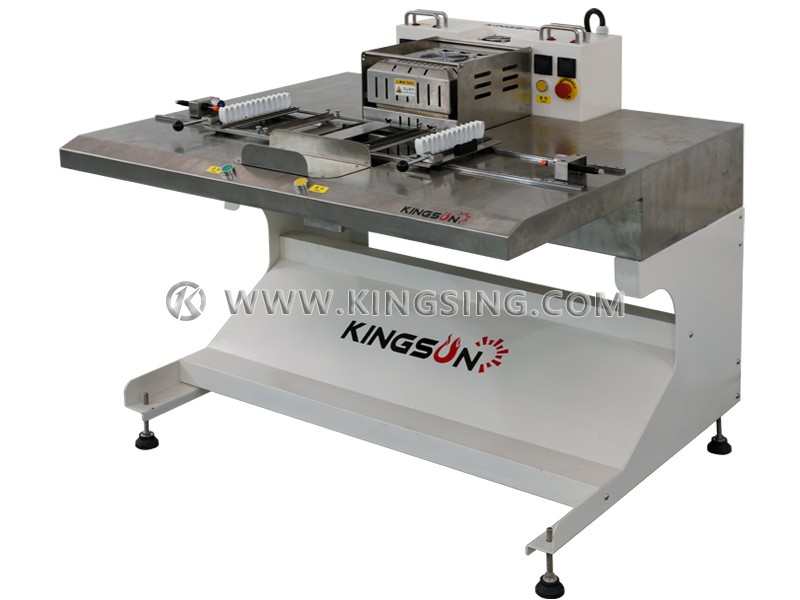

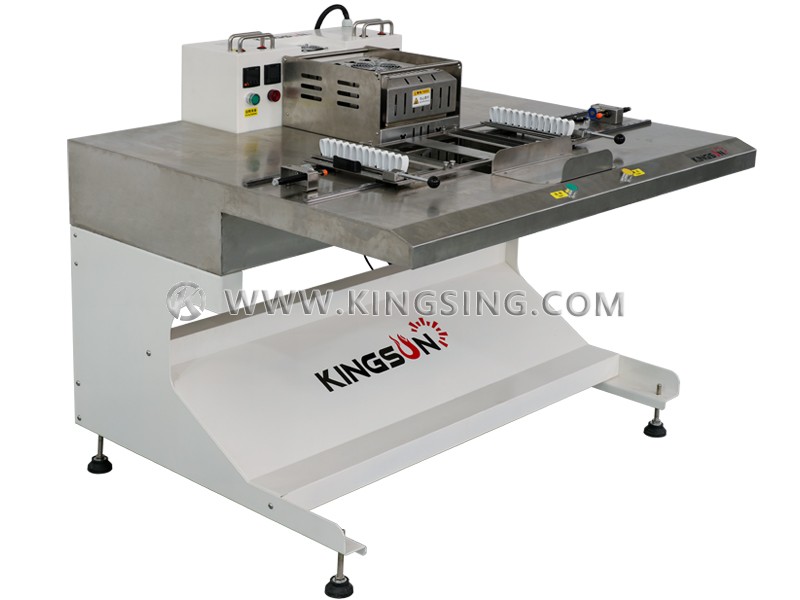

This is a double station heat shrinkable tube heat shrinking machine, which can batch process multiple wires at one time. When one of the stations is heating, another station can take and pay off the wire at the same time, saving the waiting time and greatly improving the work efficiency.

There are ceramic infrared heating plates on the upper and lower sides of the heating chamber, which can ensure that the heat shrinkable tube is heated evenly.

Wire fixture can be customized according to your product, which can precisely limit the position of the heat shrink tube on the wire. The heating chamber adopts a telescopic design, which automatically retracts after the heating is completed, it is convenient for the operator to take and pay off the wire.


Download: (1)

Max. Temperature: 570℃ (ceramic heater)

Max. Tube Length: 180mm

Heating Area: 180×240mm

Power Rating: 5000W

Power Supply: 380v 50/60Hz

Net. Weight:

Dimension: 1200×1054×990mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
