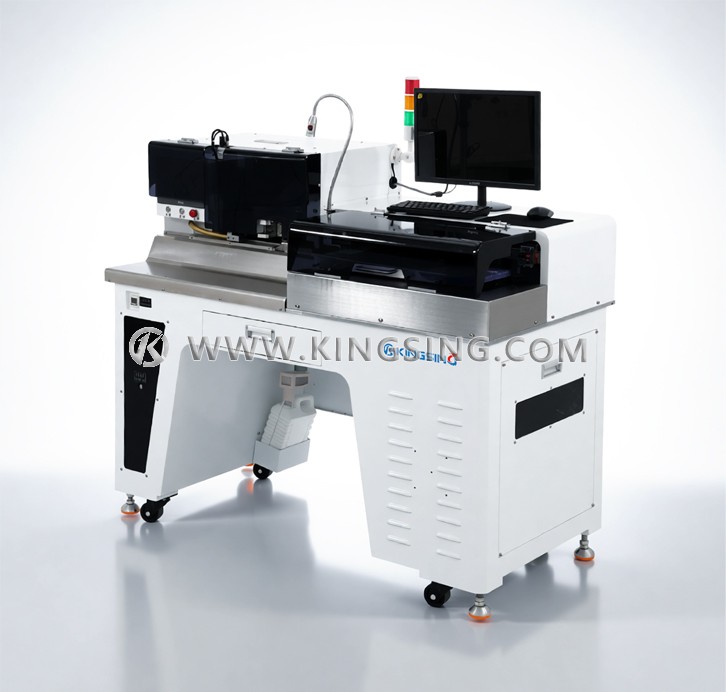

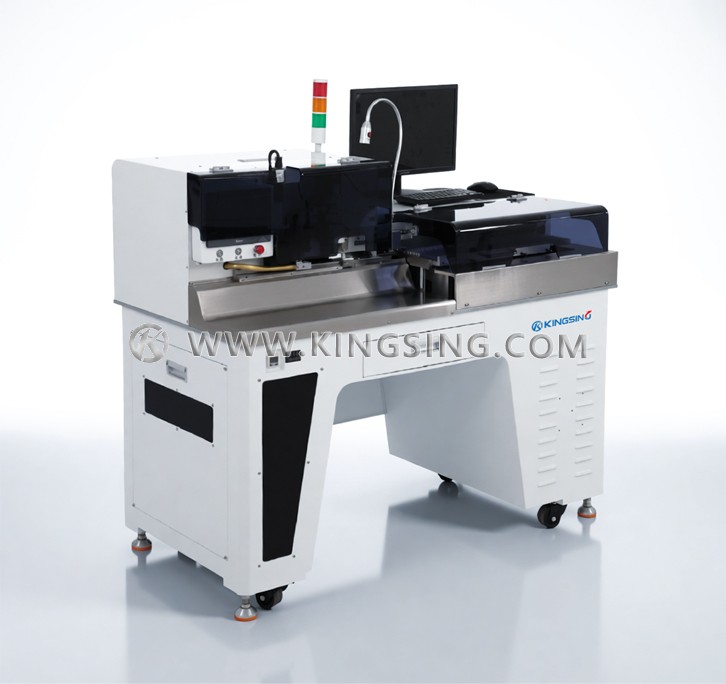

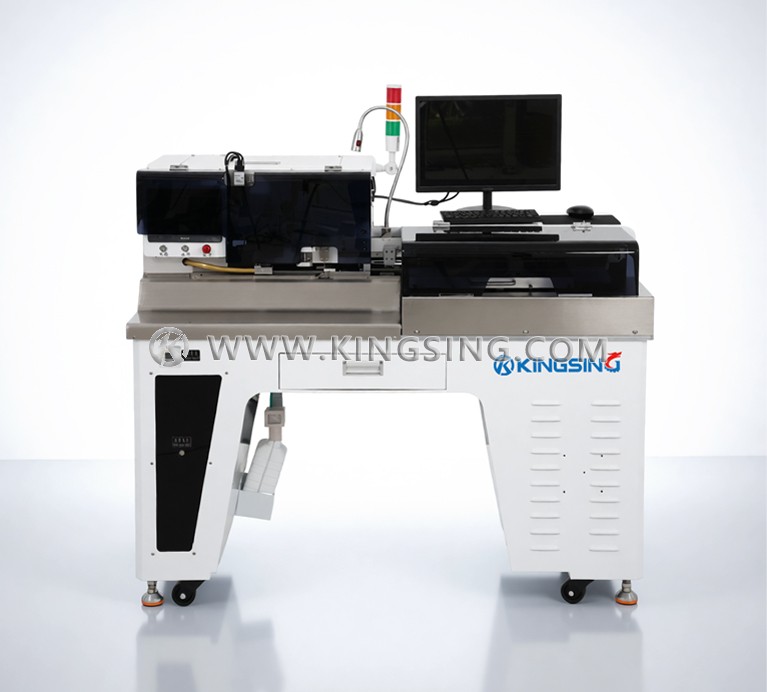

This semi-automatic pierce connector crimping machine is engineered for efficient processing of RAST IDC connectors with advanced quality control capabilities. The integrated CCD vision inspection system automatically checks the copper wire count before crimping, preventing defective connections by halting the process when wires are missing or insufficient.
The flexible feeding system can be customized according to incoming material requirements, supporting boxed connectors, reel-fed connectors, and continuous-wound IDC connectors. This adaptability makes it suitable for various production setups and connector types commonly used in appliance manufacturing.
Built with exceptional craftsmanship, all moving components are powered by Mitsubishi servo motors, ensuring reliable performance and extended operational life. The machine delivers outstanding accuracy in terminal crimping applications, making it ideal for high-volume production environments where quality consistency is paramount.
This versatile crimping solution is extensively utilized in the drum washing machine industry and electric tool manufacturing sector, where consistent terminal connections are critical for product reliability and safety. The intuitive color touchscreen interface provides easy operation and monitoring, while the servo-driven system ensures precise control over the crimping process.
| Crimp Motor | Mitsubishi servo motor |
| Vision System | Built-in CCD inspection system |
| Feeding System | Customizable (boxed, reel-fed, continuous-wound) |
| Connector Types | RAST, IDC pierce connectors |
| Production Efficiency | 1500 Pin/hour |
| Operation Interface | 7-inch color touch screen |
| Air Pressure | 0.5~0.7 Mpa |
| Working Voltage | 220V 50/60Hz (customizable) |
| Net Weight | 180 kg |
| Dimensions | 1400 × 800 × 1500 mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
