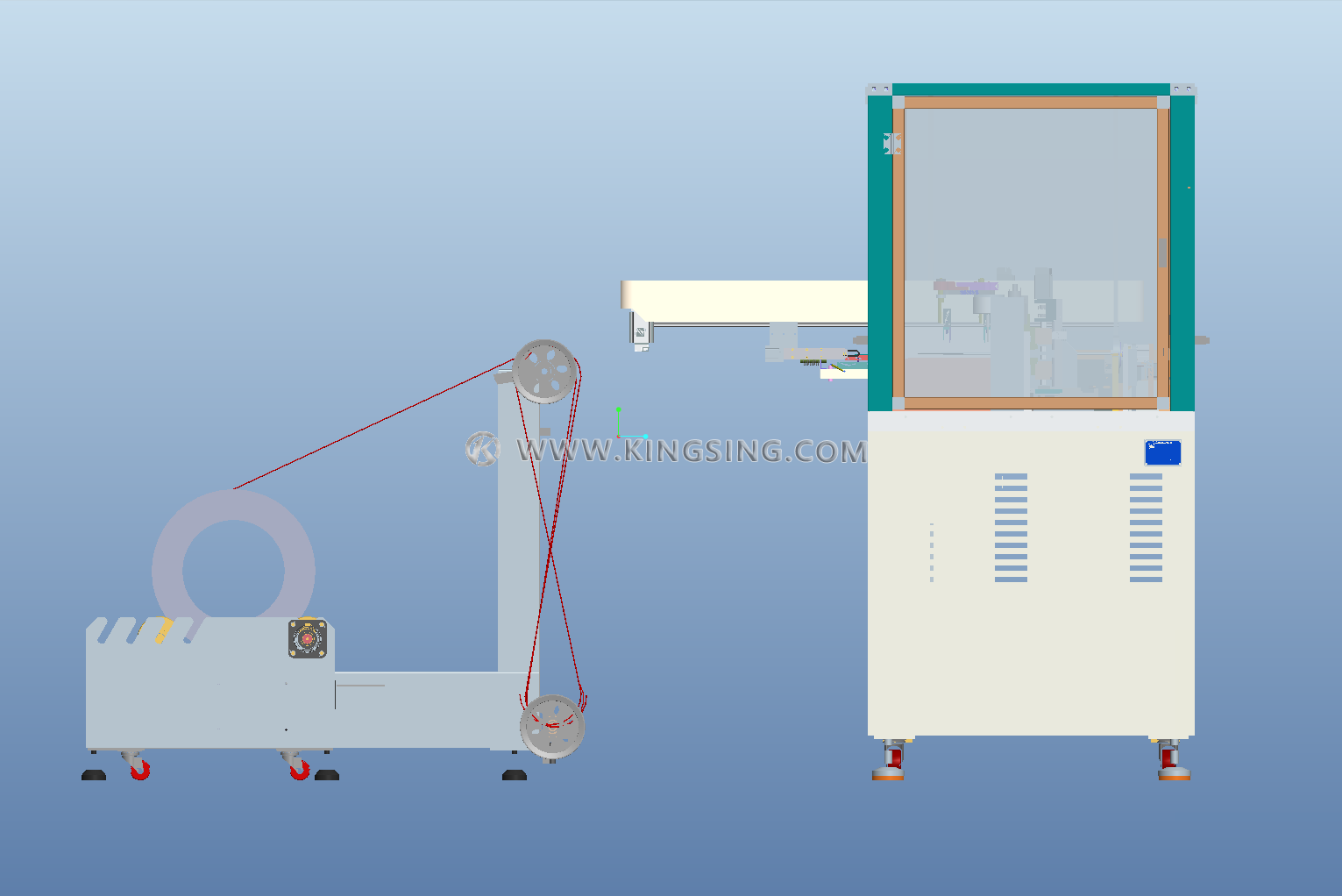

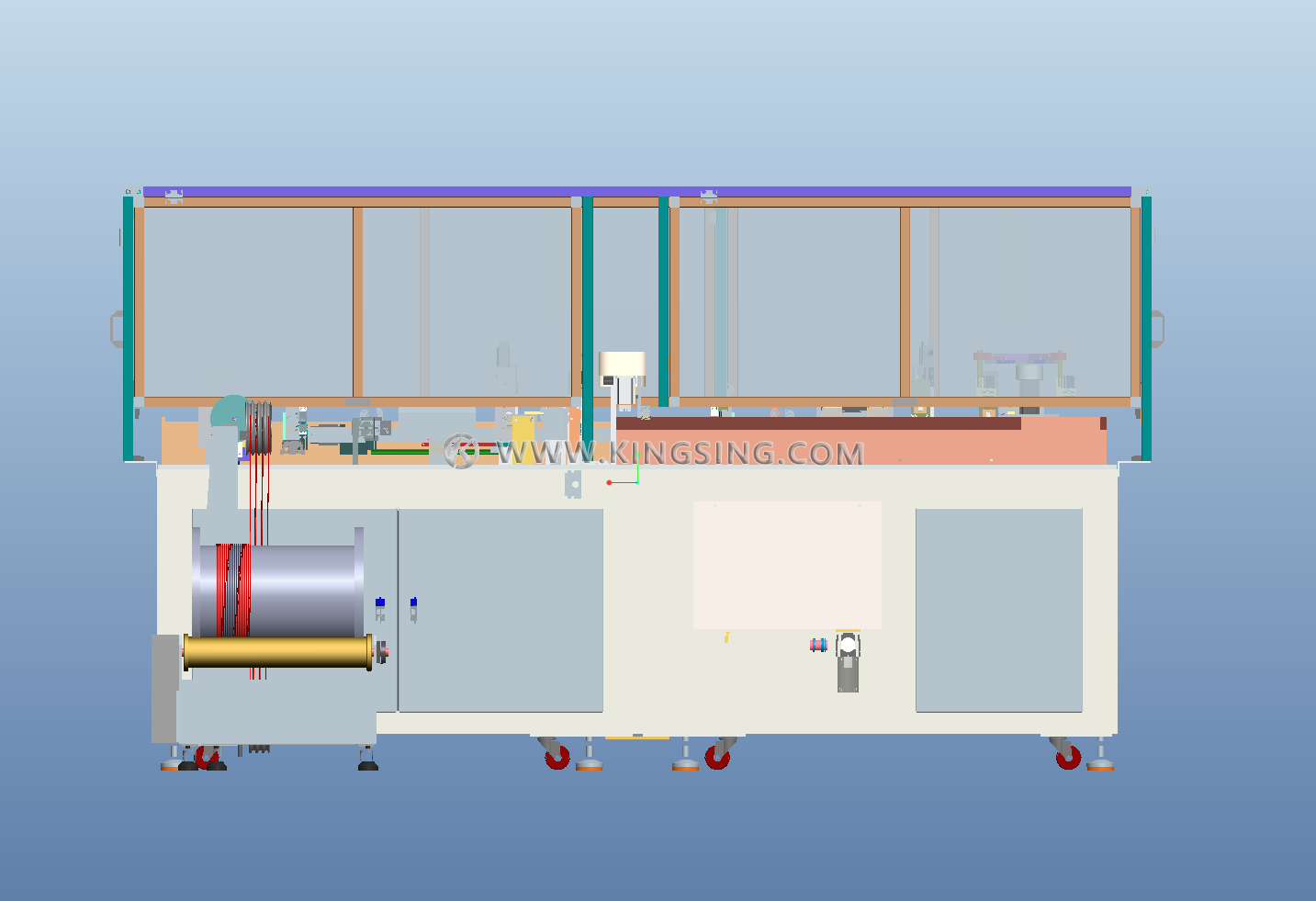

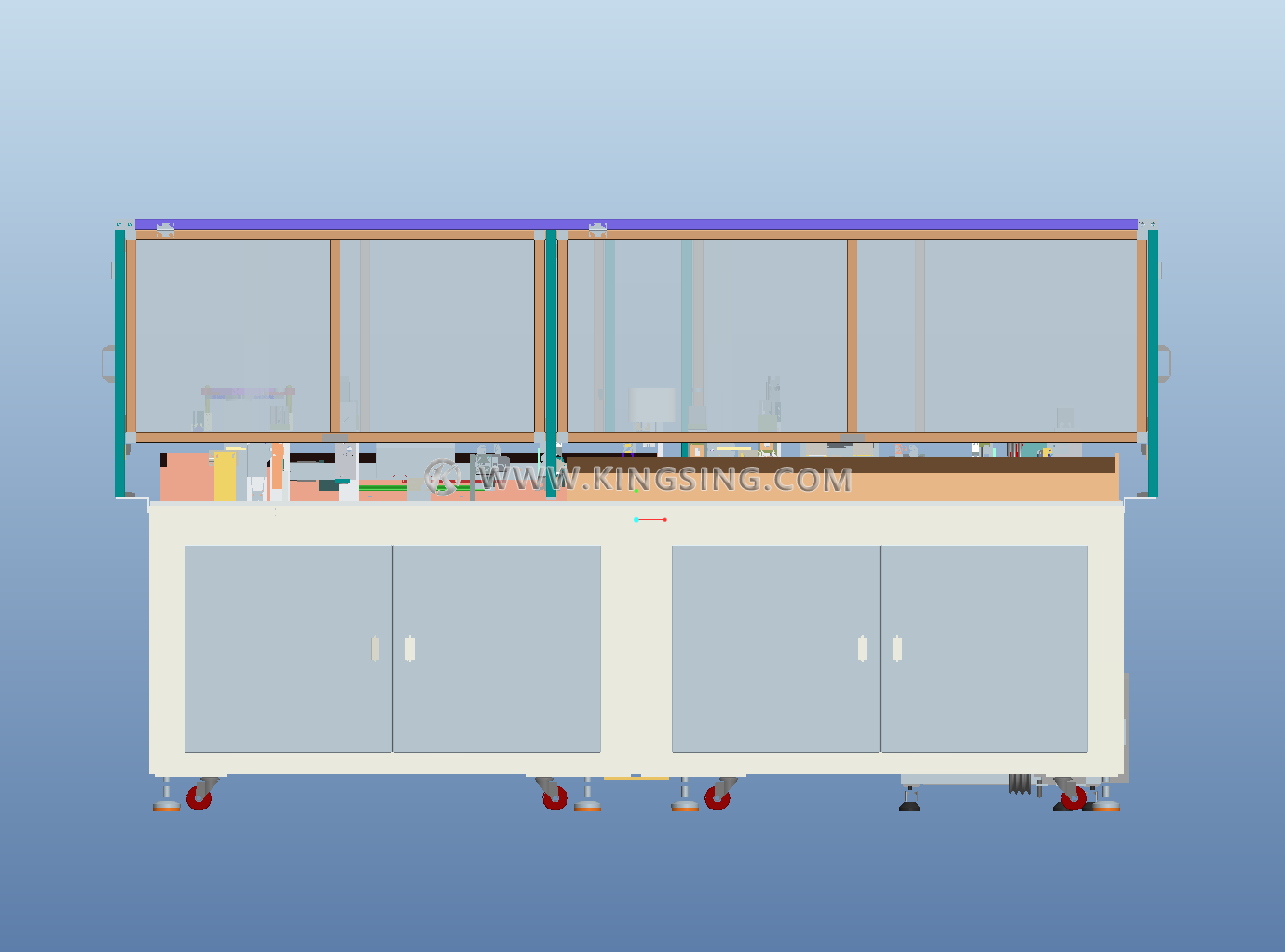

This advanced multi-core cable processing machine revolutionizes IDC connector assembly by automatically handling the complete workflow from jacket stripping to final connector crimping. Designed specifically for multi-core sheathed cables containing up to 10 individual wires, the system strips the outer jacket with precision while maintaining the integrity of internal conductors.
The machine incorporates sophisticated CCD vision detection technology that intelligently identifies the initial color sequence of wire cores and automatically rearranges them according to pre-programmed specifications. This eliminates human error in wire positioning and ensures consistent color-to-terminal matching across all production runs.

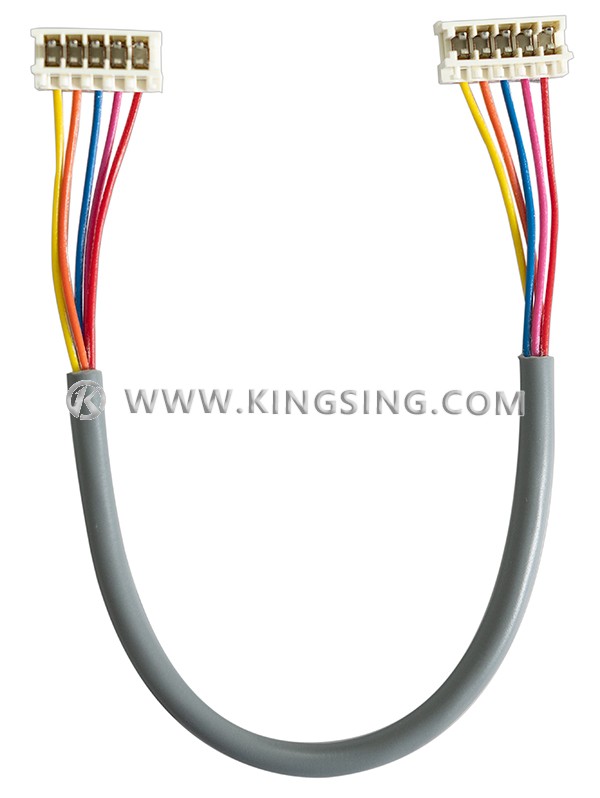

Supporting versatile RAST IDC connector configurations including boxed, loose, and continuous-belt types, the system adapts to diverse production requirements. Individual wire cores are automatically inserted into IDC connectors with programmable feeding methods, followed by precise servo-controlled crimping operations that guarantee reliable electrical connections.
The automated color sequence detection and correction capability makes this machine ideal for applications requiring precise wire-to-terminal matching, such as automotive harnesses, industrial control cables, and electronic device interconnects. The system significantly reduces manual labor while maintaining consistent quality standards throughout high-volume production runs.
Optional CCD vision inspection systems can be integrated to perform comprehensive post-crimping quality verification, ensuring each finished assembly meets specified electrical and mechanical standards. This complete automation solution streamlines the entire manufacturing process from initial cable preparation through final connector assembly and quality control.
| Applicable Wire | Multi-core sheathed cable (2-10 cores) |
| Min. Jacket Stripping Length | >35 mm |
| Compatible Connector | RAST IDC Connector |
| Crimping Motor | Servo motor (programmable crimping height) |
| Control System | Industrial PC system (Windows 11) |
| Detection Device | CCD color sequence detection |
| Air Pressure | 0.5-0.7 MPa |
| Power Supply | AC 220V 50Hz (customizable) |
| Optional Configuration | CCD vision inspection system, conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, customized solutions available upon request |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
