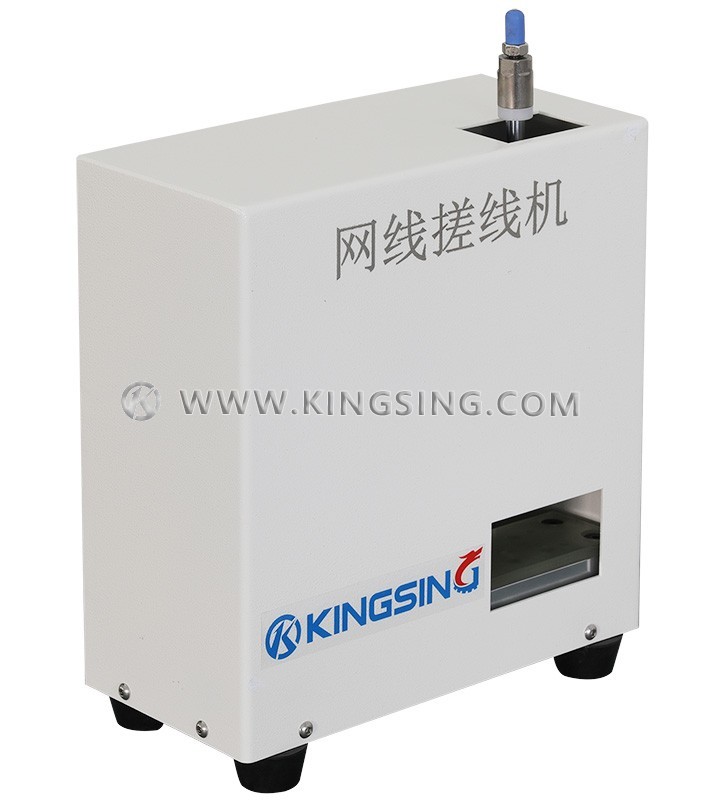

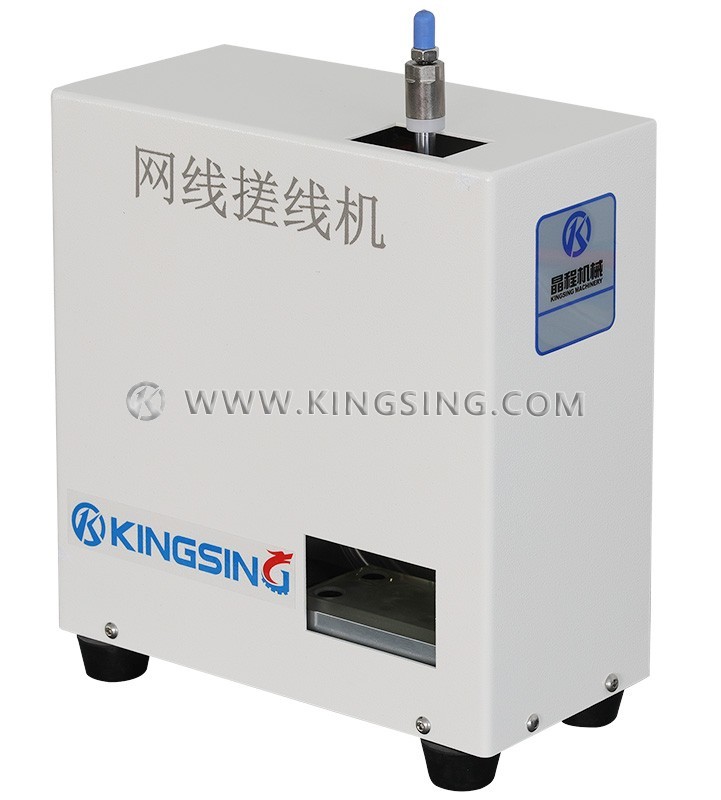

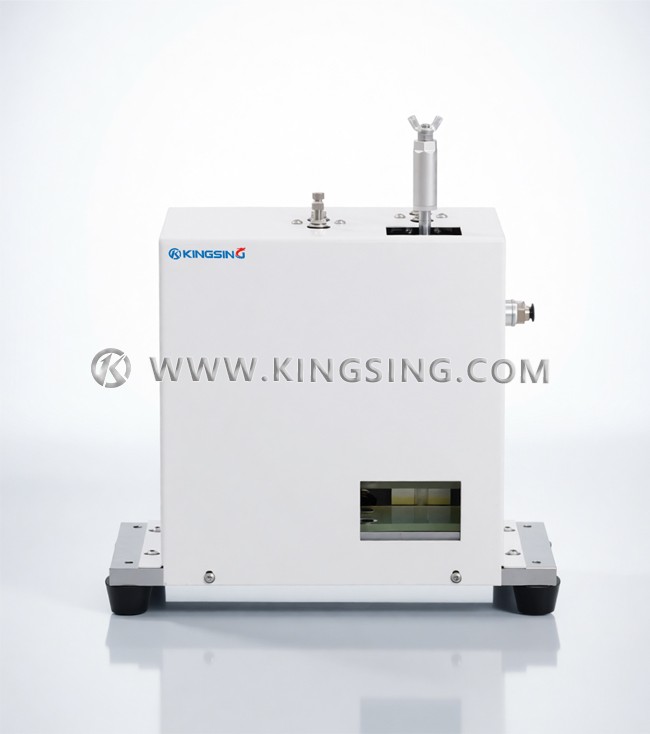

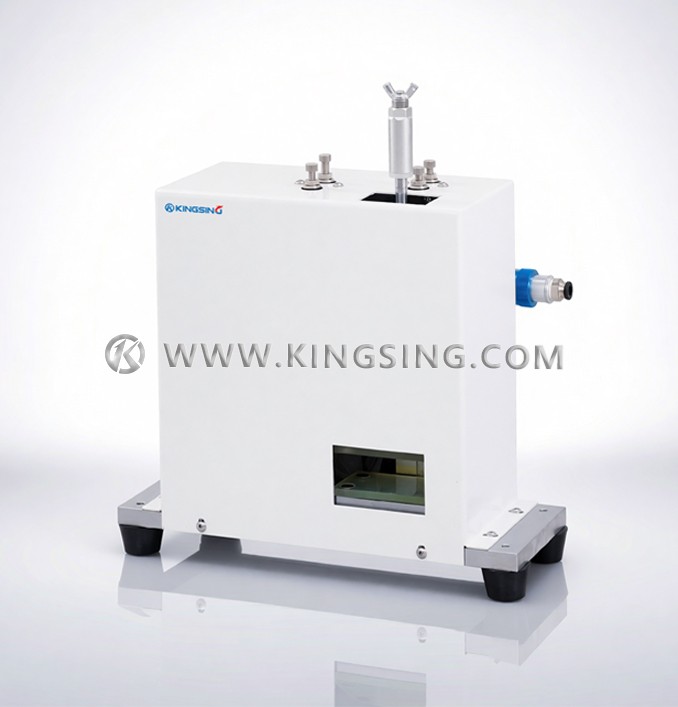

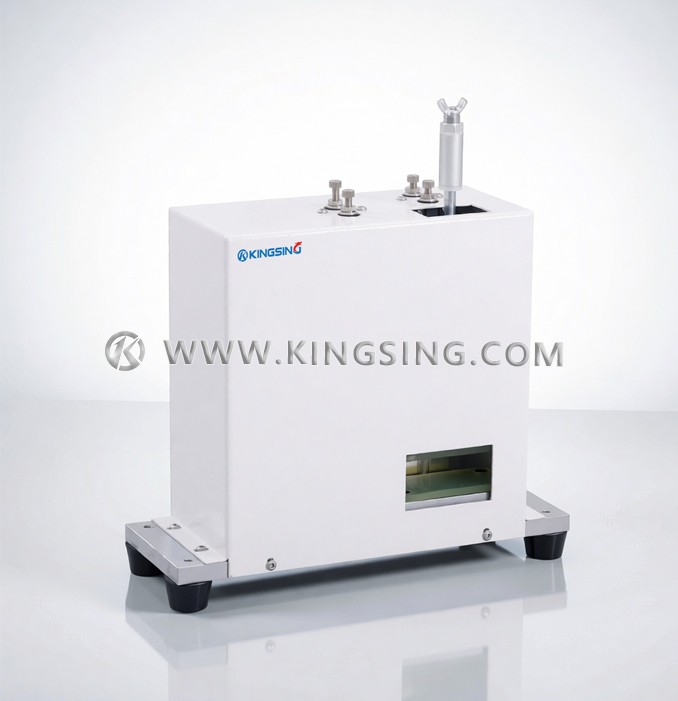

Cable Twisted Pair Wire Separating and Staightening Machine

  • Model：KS-W5110
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Simple operation, easy to use, saving time and labor cost.

  • The twisting gap can be adjusted automatically during operation.

  • Fast speed and high efficiency.

  • Low power consumption: input voltage is 220V. power rating is 120W.

  • lmported cylinder has long service life and high safety.

  • Compact size, light weight, easy to carry, suitable for assembly line work.

  • Speed of cylinder pressure plate can be adjusted freely in left, right, up and down directions to meet the needs of different wires.


Download: (1)

Power Supply:AC220V~240V

Available Cable:standard network cables

Max. Straighten Length:45mm

Operation Model:foot pedal switch

Power:Gas-electric combination

Air Pressure:0.5~0.8Mpa

Adapter Output:DC24V 3.0A

Net Weight:8.2Kg

Dimension:290*100*270mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
