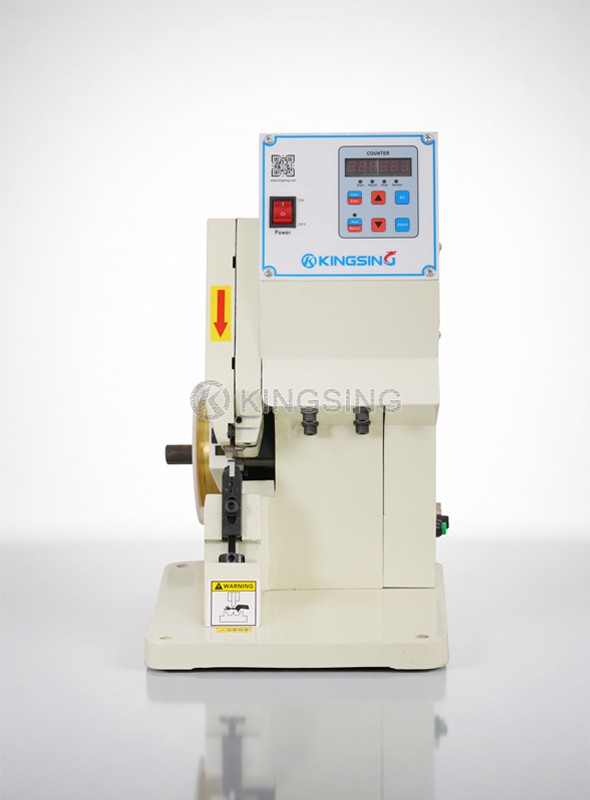

Super Mute Copper Wire Splicing Machine

  • Model：KS-T928 series
  • Net. Weight：
  • Dimension：
Online Inquiry

This automatic copper tape splicing machine provides a robust and reliable solution for producing low-cost, high-reliability wire connections in industrial applications. Designed with an inverter motor, it ensures quiet operation and energy efficiency by activating only during crimping.

The machine integrates cutting, forming, and crimping processes in a single cycle, ensuring stable quality and high productivity. It supports a wide range of wire diameters and allows programmable copper tape feeding length, eliminating the need for mechanical adjustments and enhancing operational convenience.

With simple operation and quick setup, the machine requires no specialized training, making it ideal for high-mix production environments. One unit can process multiple product types—simply switch crimping molds, which can be customized based on product specifications.

Commonly used in LED, resistor, transformer, and high-temperature heating element assemblies, this machine replaces traditional welding methods with a cleaner, safer crimping process, suitable for sensitive electronic and automotive applications.

KINGSINGKINGSINGKINGSINGKINGSING
KINGSINGKINGSINGKINGSINGKINGSING


Download: (1) (2) (3) (4)

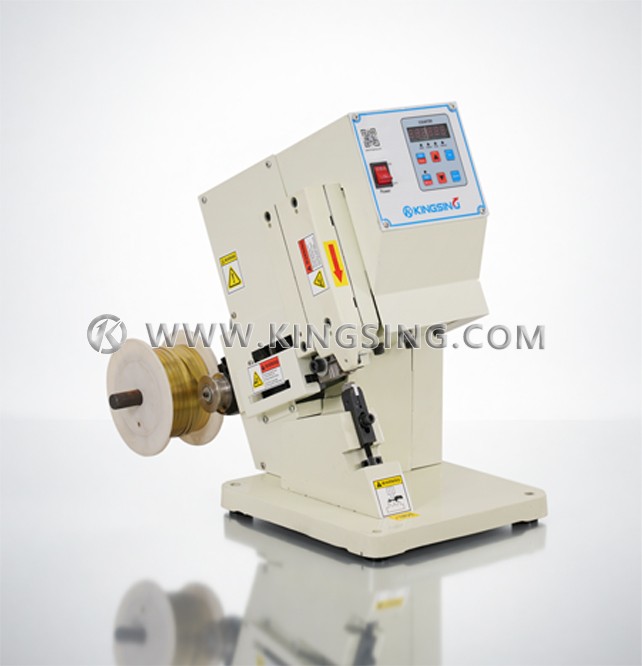

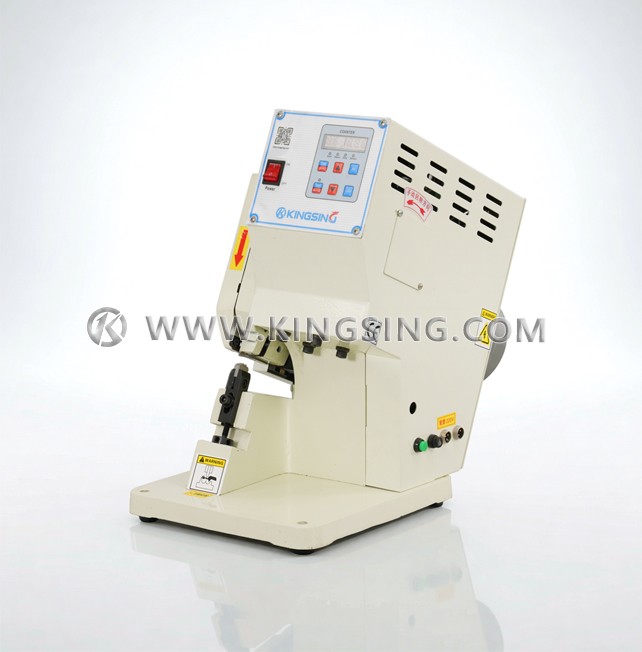

ModelKS-T928SKS-T928MKS-T928L
Crimping Force2 Ton3 Ton4 Ton
Motor Power550 W750 W1.5 KW
Applicable Wire DiameterΦ0.1–4 mmΦ1–10 mmΦ2–15 mm
Copper Tape Length≤22 mm≤35 mm≤45 mm
Copper Tape Width1–6 mm1–8 mm2–12 mm
Power SupplyAC 220V/50Hz or AC 110V/60Hz (customizable)
Net Weight50 kg50 kg115 kg
Dimensions (L×W×H)520×320×520 mm520×320×520 mm650×400×650 mm
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
