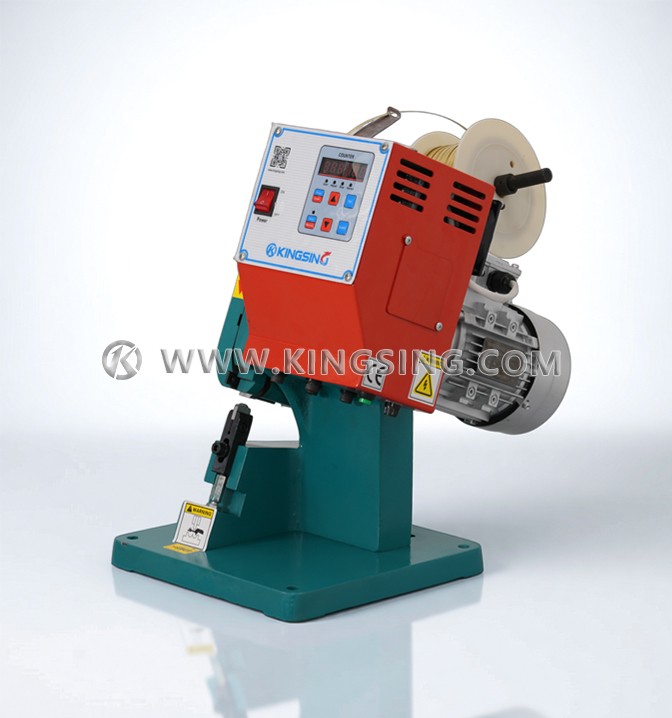

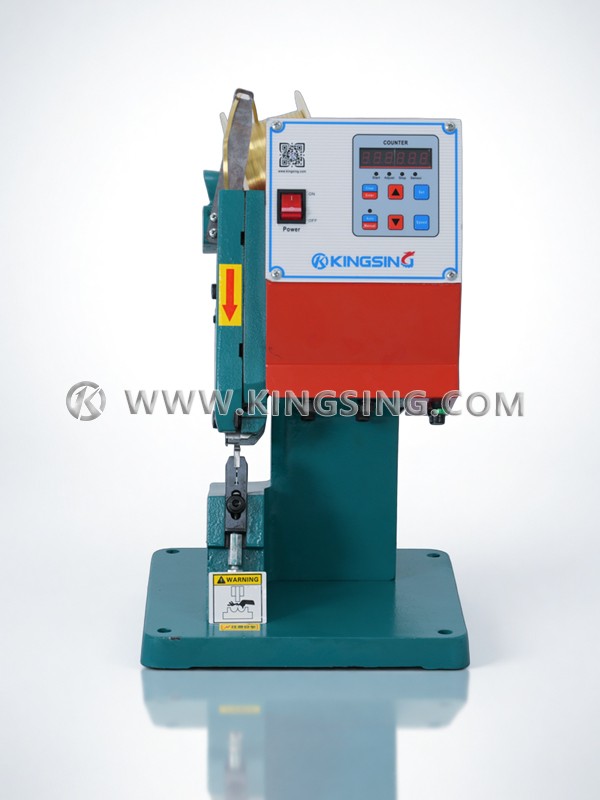

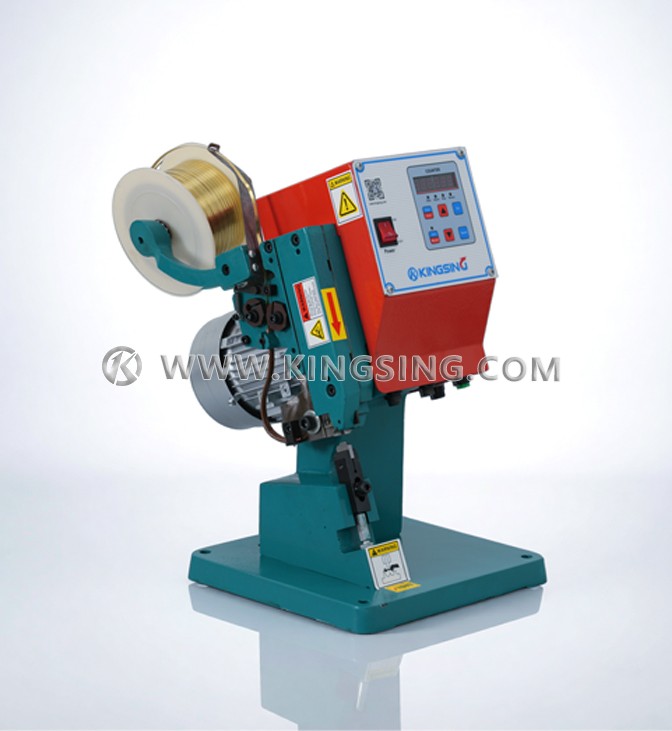

Semi-automatic Copper Band Splicing Machine

  • Model:KS-T9200
  • Net. Weight:
  • Dimension:

This is an economical silent copper tape machine, which uses copper tape to splice wires, and is often used for the connection of wires and wires and the connection of wires and electronic components. The cost of splicing wires with copper tapes is lower than that of traditional crimping terminals or soldering. The cutting, forming, and crimping of copper tapes are completed at one time. , stable quality.

Driven by variable frequency motor, the motor only works when crimping, energy saving and low noise. The width of the copper tape is available in a variety of specifications, and the common widths are 1mm, 1.5mm, 2mm, 4mm, 6mm, etc. The crimping die can be customized according to the size of the product. One machine can process many different products, just change the corresponding crimping die.


Download: (1)

Maximum pressure: 2T

Applicable wire diameter: 0.1~4mm2

Copper tape width: 1~6mm

Copper tape length: ≤22mm

Crimping accuracy: ±0.1mm

Motor power: 550W

Voltage: 220V 50/60Hz (110V can be customized)

Net weight: 55kg

Dimensions: 460*320*460mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
