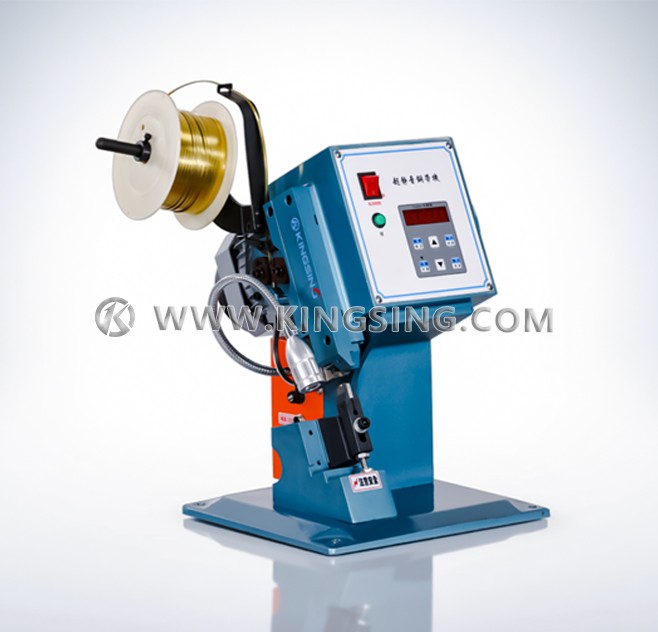

Semi-automatic Copper Tape Splicing Machine

  • Model:KS-T246 series
  • Net. Weight:
  • Dimension:
  1. This series of economical silent copper tape machines has 3 sub-models to choose from (see technical parameters for details). It uses copper tape to splice wires, and is often used for wire-to-wire butt and wire-to-electronic component butt. The cost of splicing wires with copper tapes is lower than that of traditional crimping terminals or soldering. The cutting, forming, and crimping of copper tapes are completed at one time. , stable quality.

  2. Driven by variable frequency motor, the motor only works when crimping, energy saving and low noise. The width of the copper tape is available in a variety of specifications, and the common widths are 1mm, 1.5mm, 2mm, 4mm, 6mm, etc. The crimping die can be customized according to the size of the product. One machine can process many different products, just change the corresponding crimping die.


Download: (1)
Max Pressure2T3T4T
Motor Power550W
Applicable Wire DiameterΦ0.1~4mmΦ1~10mmΦ2~15mm
Copper Tape Width1~6mm2~10mm2~12mm
Net Weight55kg86kg92kg

Working voltage: 220V 50/60Hz (110V can be customized)

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
