Automatic RF Coaxial Cable Stripper

  • Model:KS-W50 Series
  • Net. Weight:
  • Dimension:

1、This series is a semi-automatic coaxial cable stripping machine, suitable for processing various flexible and semi-flexible coaxial cables, automotive cables, medical cables, etc. It uses 2 pieces of high-precision tungsten steel blades to rotate and strip the wire, which can cut the stripping position 360 degrees, the stripping is smooth, the stripping length is accurate, and the cutting accuracy can reach 0.01mm, without damaging the inner layer. This series of wire stripping machines also has the function of rotary stripping, that is, when stripping the wires, they are stripped while rotating, and the copper wires can be twisted together for multi-strand copper wires.

2、Color touch screen operation interface, parameter setting is intuitive and easy to understand. It can be stripped in up to 9 layers, and the cutting depth and stripping length of each layer can be freely set in the program. For example, when stripping a coaxial cable, the outer layer, braided layer, and core wire can be stripped to different lengths. Up to 99 groups of programs can be saved, and the processing parameters of different wire materials can be saved in different program numbers. When switching wire materials, the corresponding parameters can be called out with one key without mechanical adjustment.

Download: (1)

Model selection: This series of coaxial machines includes 3 sub-models. W500 is characterized by affordable price, but there is no ejector rod to start; W5001 is based on W500, which adds ejector rod to start. The wire head will automatically start the machine when it touches the ejector rod , no need to step on the foot switch or press the start button, of course, if you want to use the foot switch or button to start, it is also supported; W501 is a high-precision type, has a wider processing range, and has a coaxial wire with a processing diameter below 0.81mm It is recommended to choose this model when processing thin wires with a diameter of less than 1mm. When processing coaxial cables with a diameter of 1.13mm or more, the processing capabilities of these three models are basically the same.

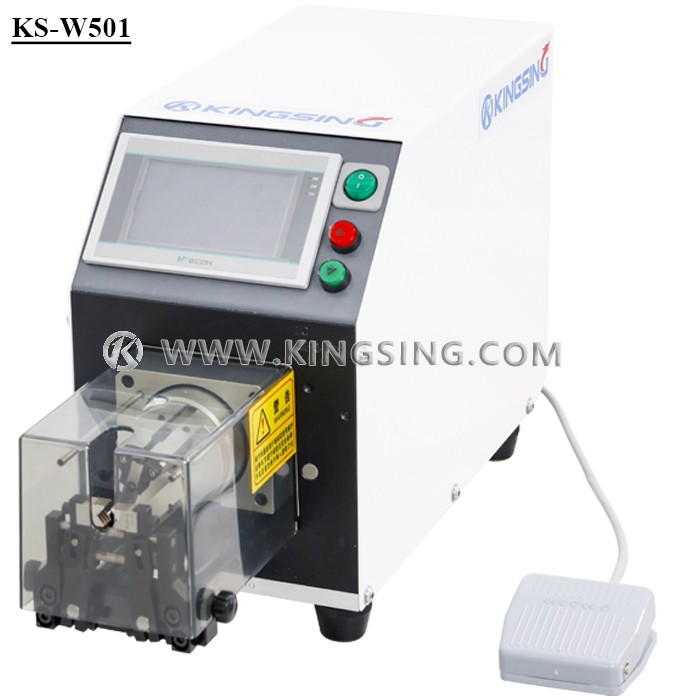

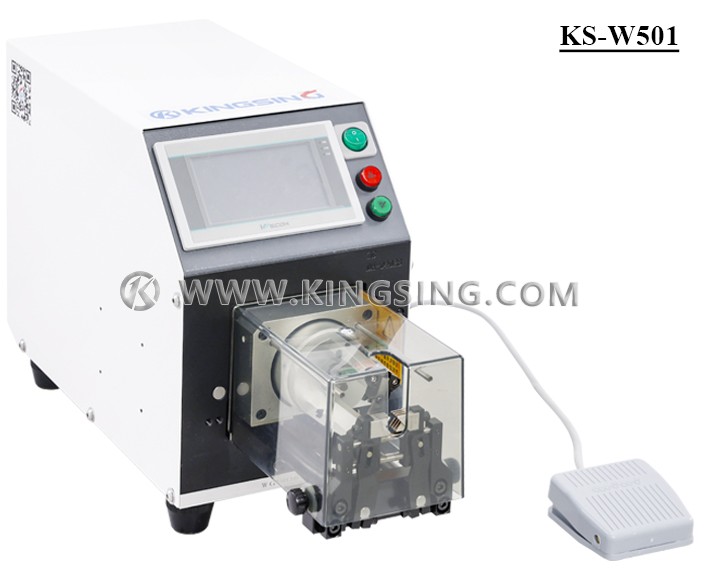

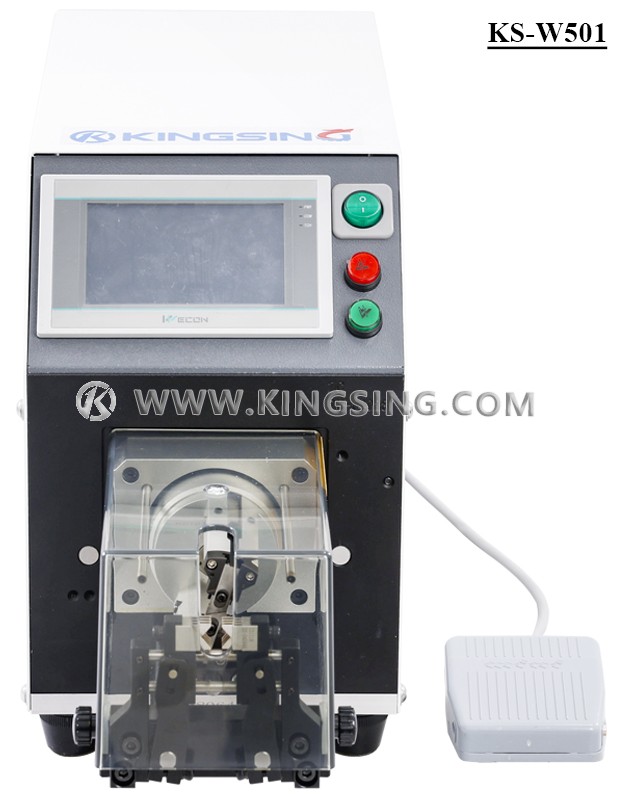

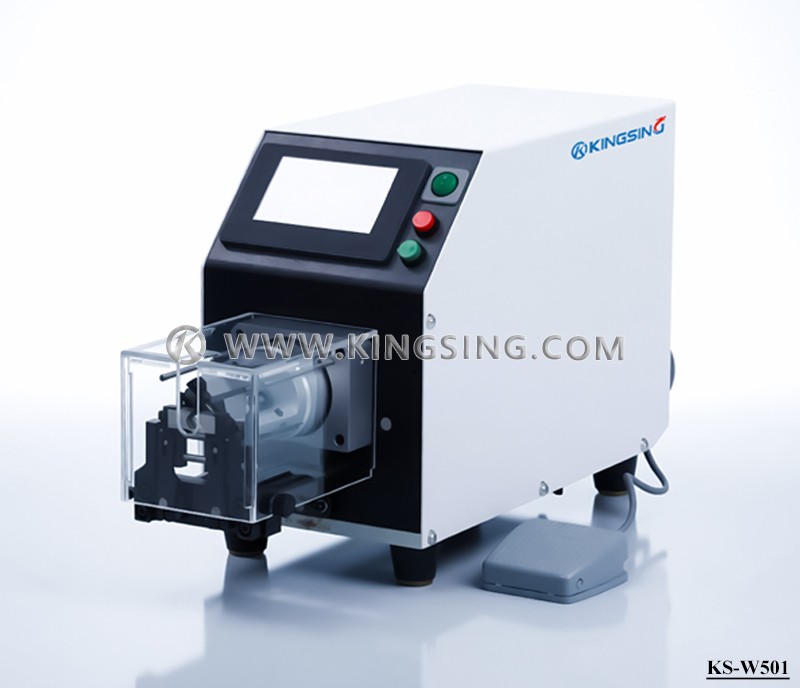

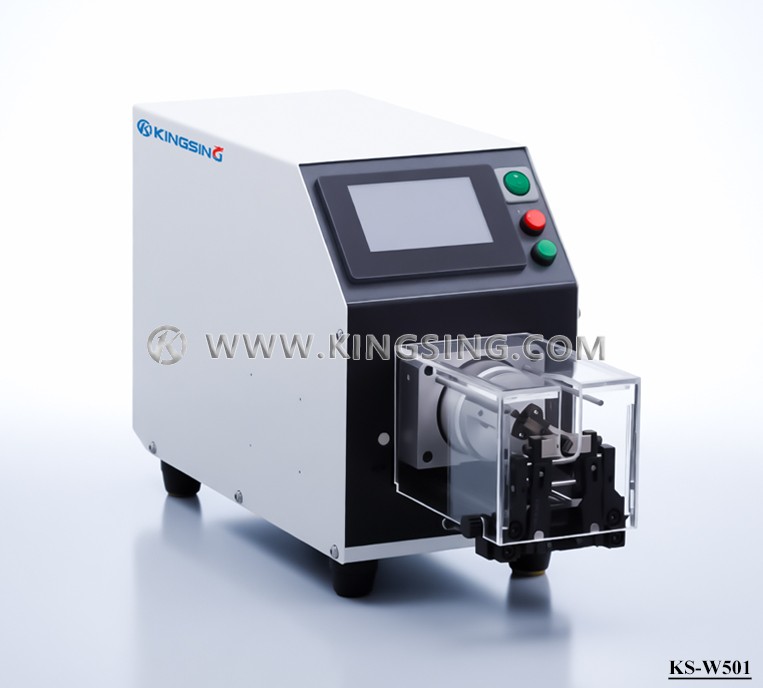

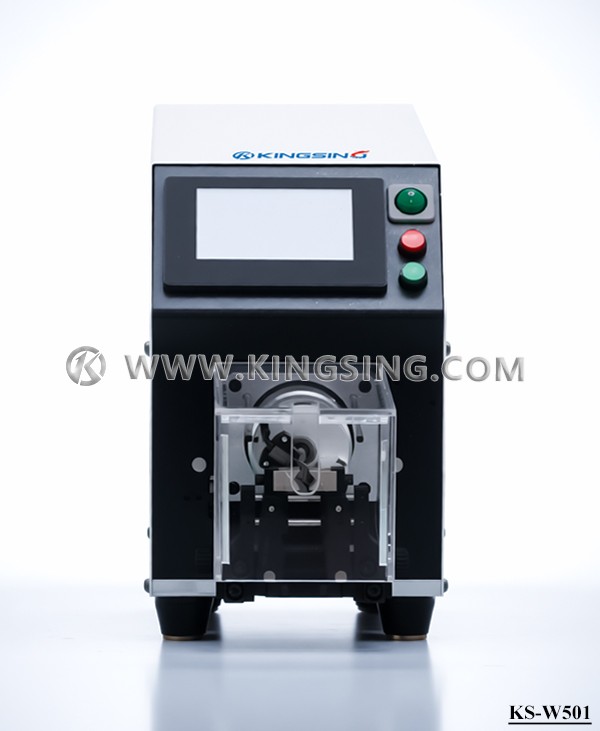

Physical picture
KINGSING
KINGSING
ModelKS-W500KS-W5001KS-W501
Applicable wire diameterΦ0.8~7mmΦ0.8~7mmΦ0.5~7.5mm
Stripping Length0.1~54mm0.1~45mm0.1~48mm
Start Methodfoot switch, buttonfoot switch, button, ejector rodfoot switch, button, ejector rod
Rated Power400W
400W250W
Net Weight26kg27kg19kg
Dimensions600*185*280mm600*185*280mm530*190*300mm

The minimum unit of stripping length: 0.01mm

Number of blades: 2 pieces

Minimum unit of cutting depth: 0.01mm

Maximum stripping layers: 9 layers

Program memory function: up to 99 groups of programs can be saved

Production efficiency: 700~1100 pieces/hour

Working voltage: AC220V/110V 50/60Hz

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
