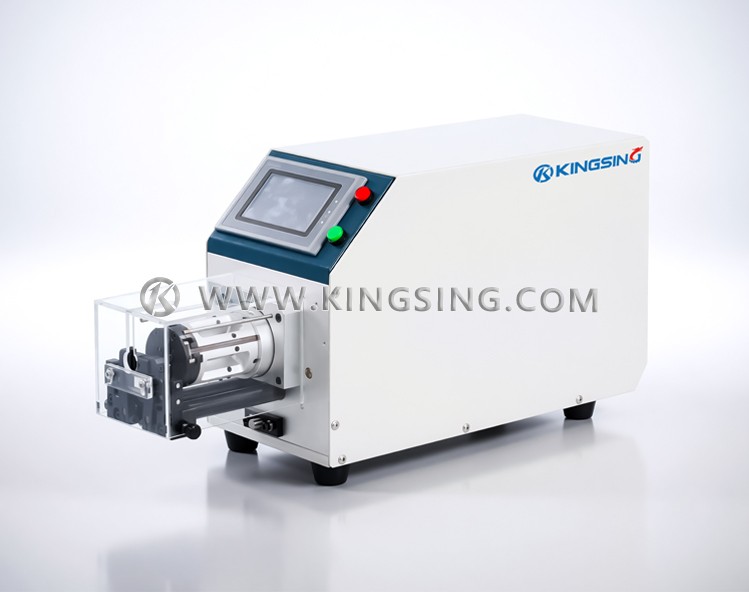

Rotary Blade Coaxial Cable Stripping Machine

  • Model:KS-W502
  • Net. Weight:
  • Dimension:

Rotary Blade Coaxial Cable Stripping Machine KS-W502 is specially designed for processing coaxial cables in the communication field. This machine uses a rotary cutter to rotary cutting, which can perfectly strip the woven net layer without hurting the inner layer. It can strip up to 9 layers, which greatly improves the efficiency and quality of the coaxial cable processing.

  • Robust & reliable;

  • High working efficacy;

  • Excellent price/performance ratio;

  • Easy to program and operate (menu-guided);

  • Blade changes are eliminated and conversion times are reduced;

  • Support full stripping, half stripping, middle stripping and twisting;

  • The blades displace the insulation uniformly; conductors are not bent;

Download: (1)

Suitable Material: Coaxial cable, triaxial cable, shielded cable, TV signal cable, audio cable etc.

Display Mode: Color touch screen

Stripping Method: Rotary Blade

Operating Mode: Foot switch / Manual

Driving Mode: Motor / ball screw drive

Display Language: Chinese / English

Storage Capacity: 99 sets of programs

Available Wire Size: Ф1.5mm~Ф9.5mm

Capacity: 200~500 pcs/hour

Tolerance: 0.01mm

Power Supply: 220V 50Hz / 110V 60Hz

Stripping Length: 0.1mm~65mm

Dimension: 600L×185W×290mmH

Centering Slice: 4 Pcs

Net. Weight: 25Kg

Blade Quantity: 4 Pcs

Power Rating: 400W

Blade Material: Tungsten Steel

Max. Stripping Layer: 9 layers


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
