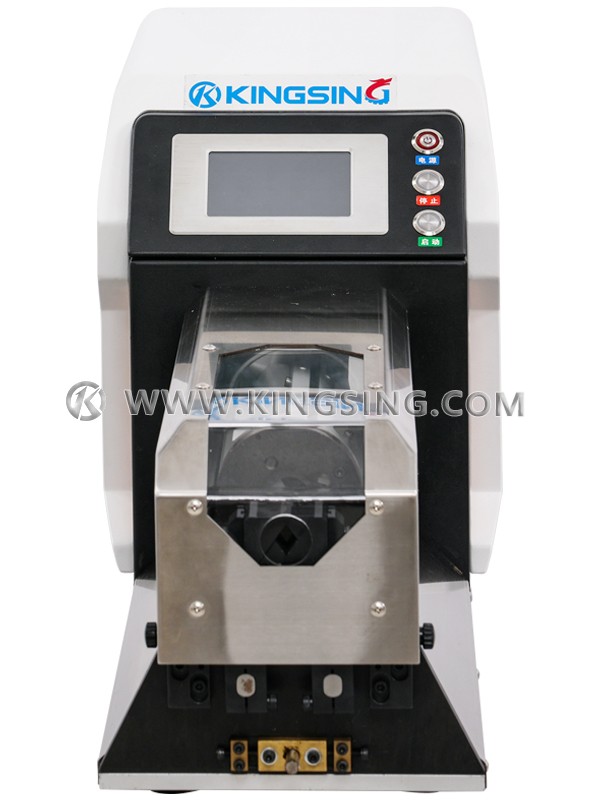

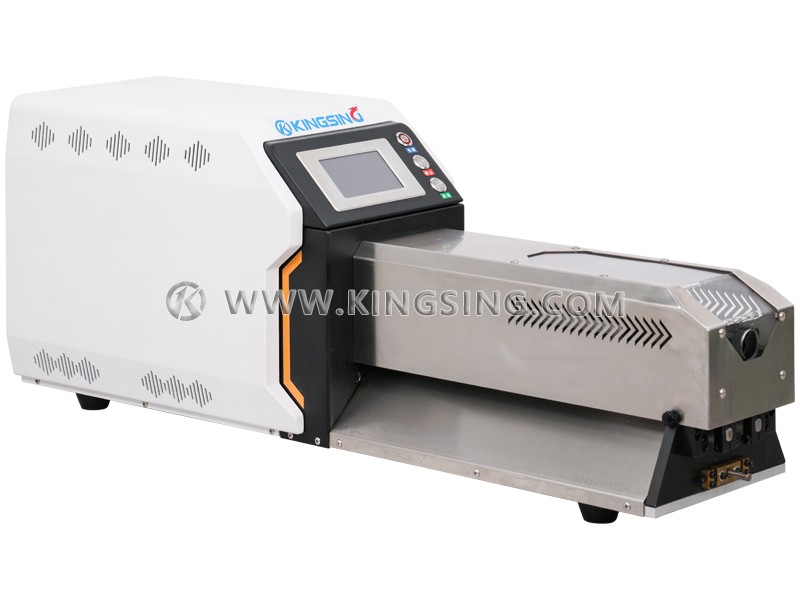

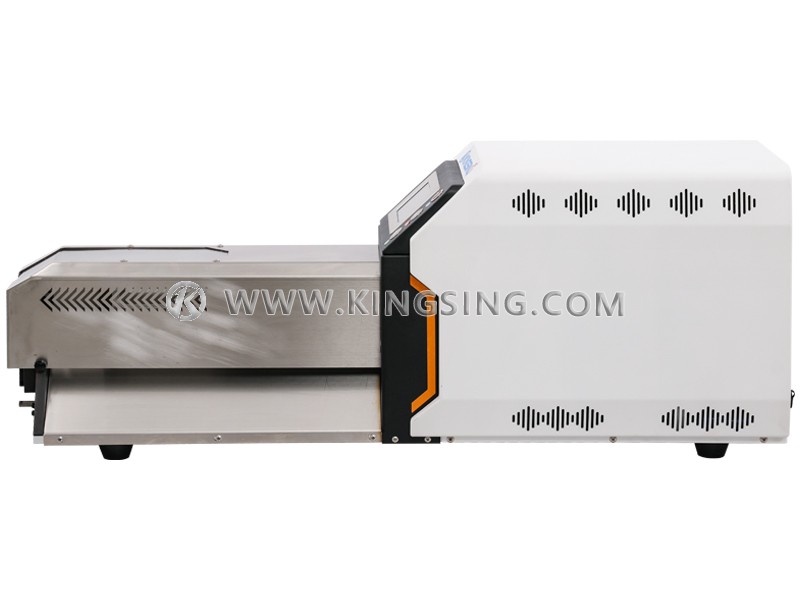

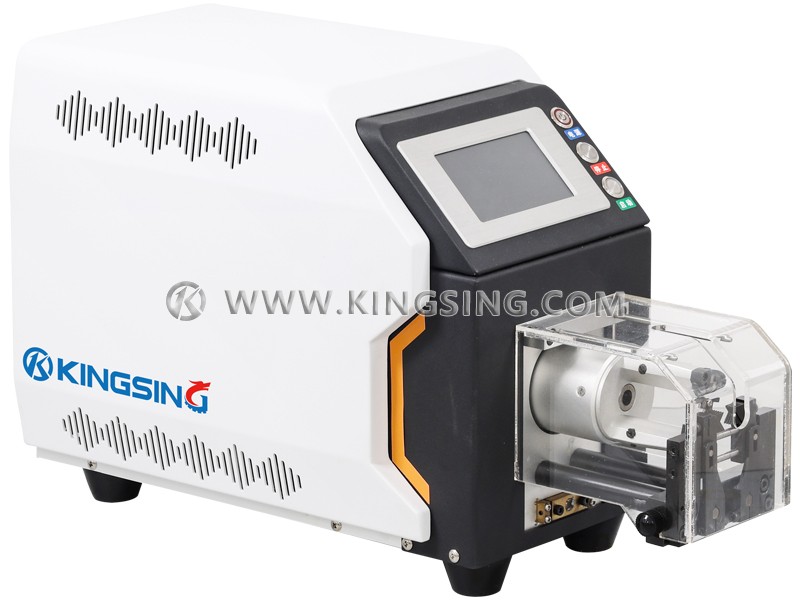

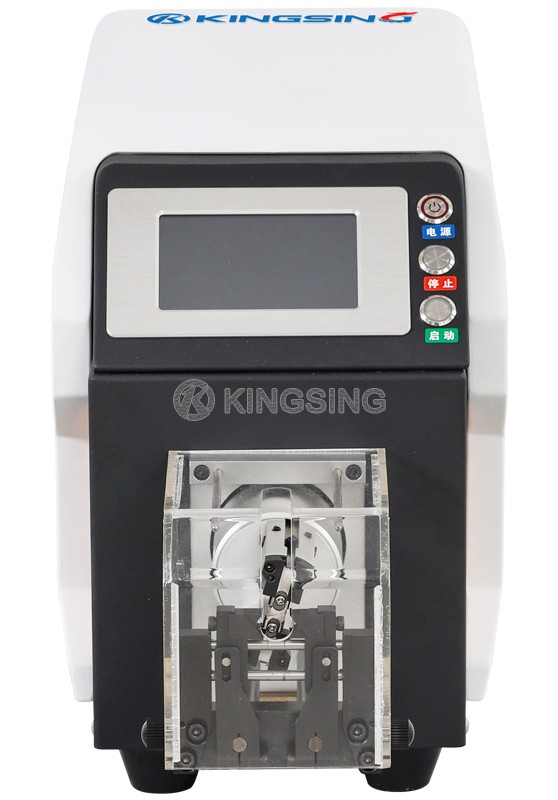

Semi-automatic Coaxial Cable Stripping Machine

  • Model:KS-W5/6 Series
  • Net. Weight:
  • Dimension:
  • Excellent price/performance ratio;

  • Easy to operate and have extremely short cycle times;

  • lt supports full stripping, half stripping, multi-layer stripping and twisting functions;

  • The top-quality, durable blades and components enable high processing speeds, which reducesthroughput times accordingly;

  • Color touch screen operation interface, parameter setting is intuitive and easy to understand.

  • lt can strip up to 10 lavers, the cutting depth and stripping length of each layer can be set freely inthe program;

  • Up to 99 groups of programs can be saved, and the processing parameters of different wires canbe saved in different program numbers, when the wire is replaced, the corresponding parameters can be called up with one key without any mechanical adiustments, which greatly increase the working efficiency;

  • Minimum conductor damage: the blades cut through the insulation and down to a thin ring around the conductor. That means the remaining area to be pulled off is small and the pull-off force is lower;

  • The rotating blades cut the entire circumference of insulation with precision. The cutting surfaceis smooth and free of lines or ridges.

Download: (1)
Wire DiameterΦ0.8~7mmΦ1.5~15mmΦ2.5~25mmΦ2.5~25mm
Strip Length0~55mm0~100mm0~80mm0~200mm
Blade Qty2pcs4pcs4pcs4pcs
Capacity800~1000 pcs/hour700~800 pcs/hour600~700 pcs/hour600~700 pcs/hour
Power Rating300W500W600W800W
Net weight25kg34kg38kg51kg
Strip Accuracy±(0.1+L*2‰)mm (L+stripping length)
Display ModeColor touch screen
Operating ModeFoot switch/Button Control
Starting ModeSingle step/Single cycle/Automatic
Display LanguageChinese/English
Stripping MethodRotary Blade
Driving ModeMotor/Ball screw drive
Stripping LayerMax.10 layers
Storage Capacity99 sets of programs
Power Supply220V 50Hz
Suitable MaterialCoaxial cable, triaxial cable, shielded cable, TV signal cable, audio cable etc.


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
