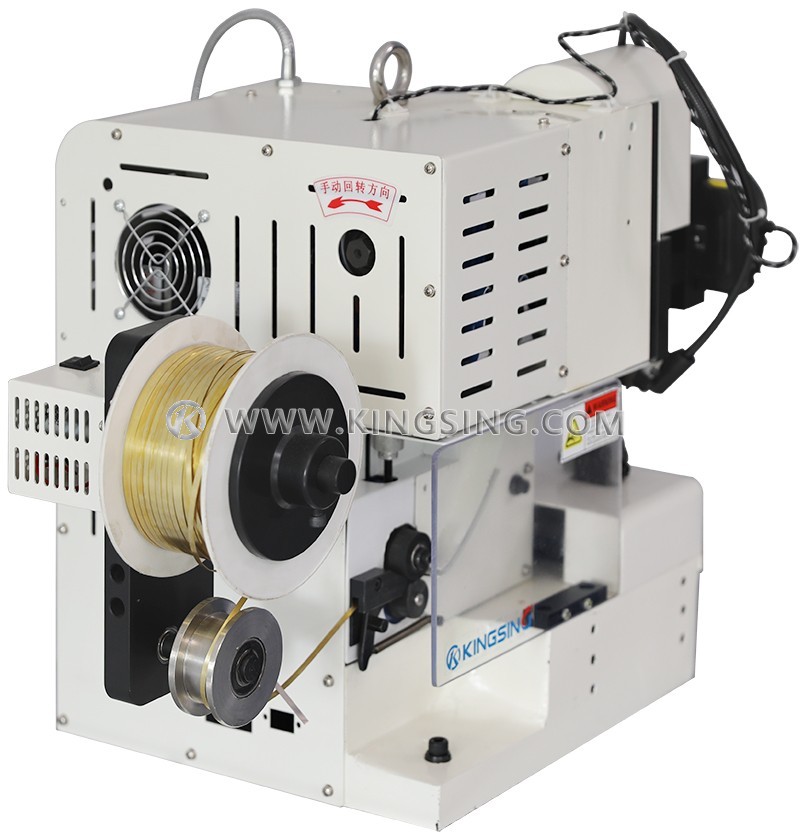

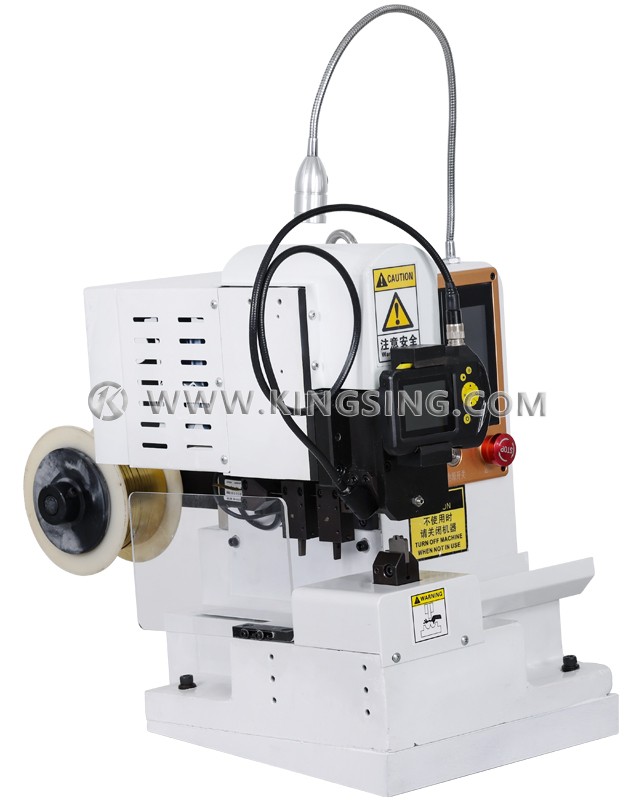

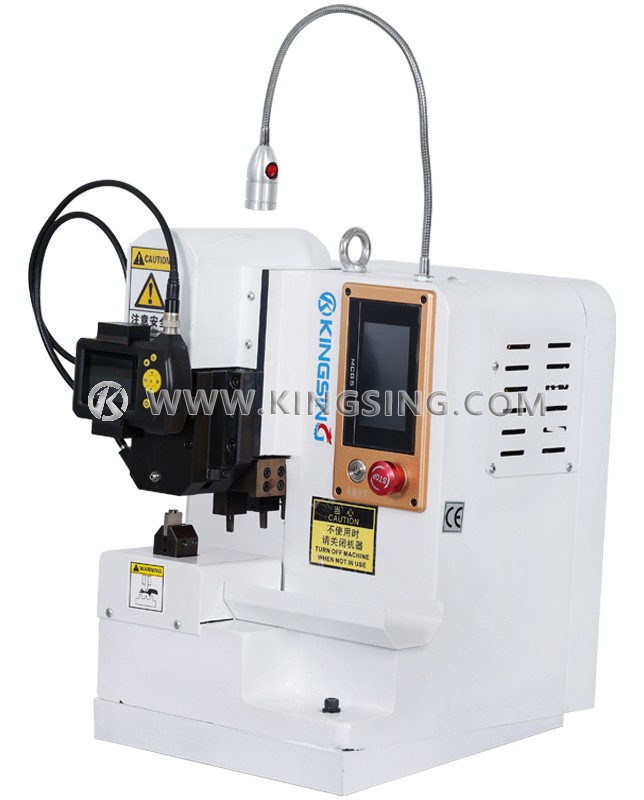

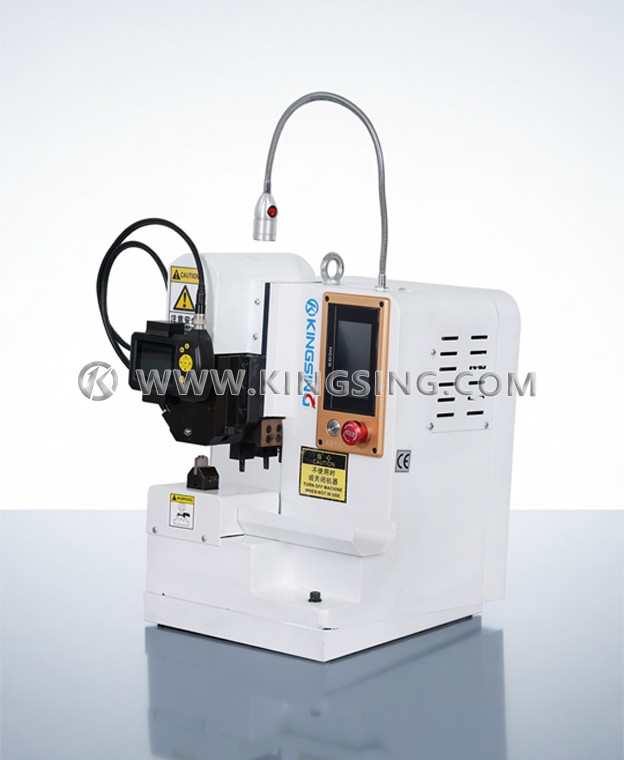

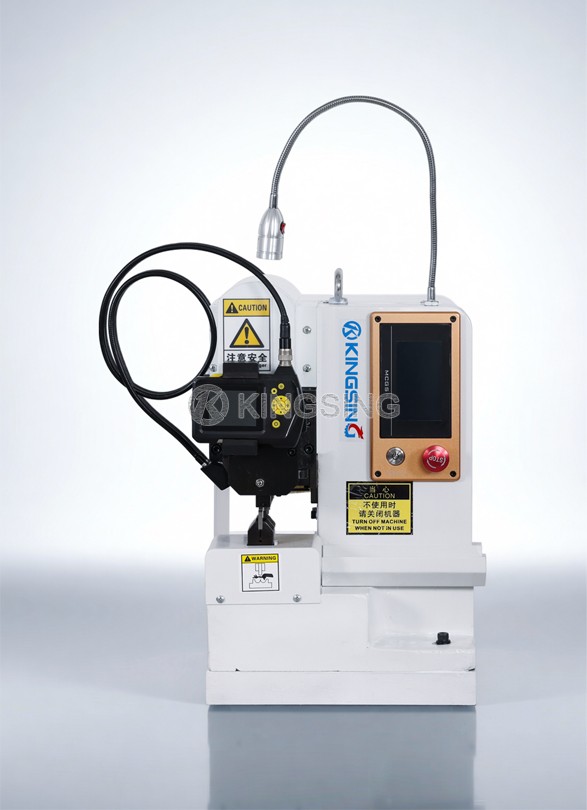

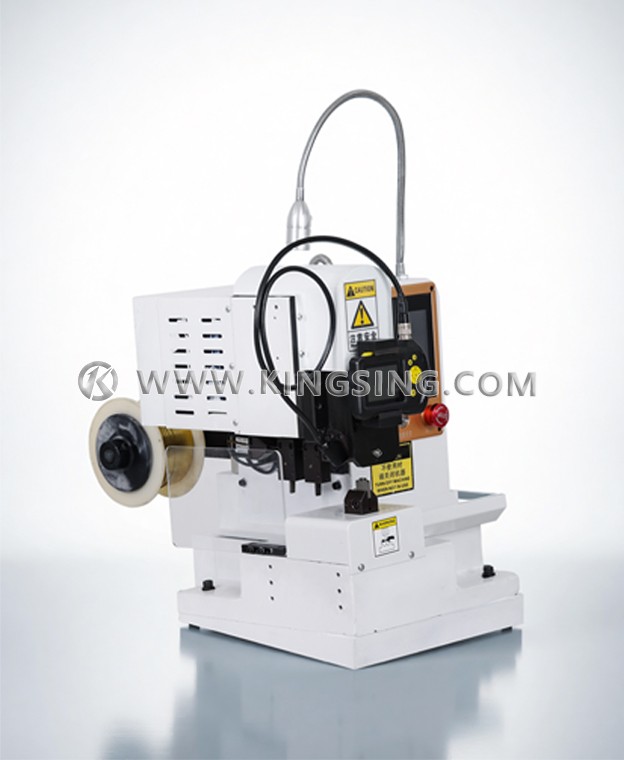

Servo Motor Driven Copper Band Splicing Machine

  • Model:KS-T925 Series
  • Net. Weight:
  • Dimension:
  1. This series is a servo-type copper tape crimping machine, driven by a servo motor, with high crimping precision, specially designed for processing high-end precision wire rods, and there are 2 sub-models to choose from (see technical parameters for details). The modular crimping fixture is easy to replace. One machine can crimp a variety of products of different sizes, and only need to replace the corresponding crimping die. The width of the copper tape is available in various specifications, commonly used are 1mm, 2mm, 4mm, 6mm, 8mm, etc. The whole machine has strong rigidity and can be equipped with a pressure monitoring system. When the pressure is abnormal, it will automatically alarm and stop.

  2. It uses copper tape splicing wire, which is often used for the butt connection of wires and wires and the butt connection of wires and electronic components. The cost of splicing wires with copper tapes is lower than that of traditional crimping terminals or soldering. The cutting, forming, and crimping of copper tapes are completed at one time, and no waste is generated during the splicing process. Strong pulling force and stable quality.

  3. Color touch screen operation interface, feeding length, crimping height and other parameters can be set in the program, to adjust the pressure only need to modify the corresponding parameters, no need to manually adjust the screw. With the program memory function, the corresponding parameters can be called out with one key after changing the mold or switching products, saving debugging time.


Download: (1)
Max Pressure2T3T
Motor Power750W1000W
Applicable Wire Diameter0.1~4mm2
Copper Tape Width1~6mm2~8mm
Net Weight60kg70kg

Crimping accuracy: ±0.05mm

Operation interface: color touch screen

Start mode: foot switch

Motor Type: Servo Motor

Voltage: 220V 50/60Hz (110V can be customized)

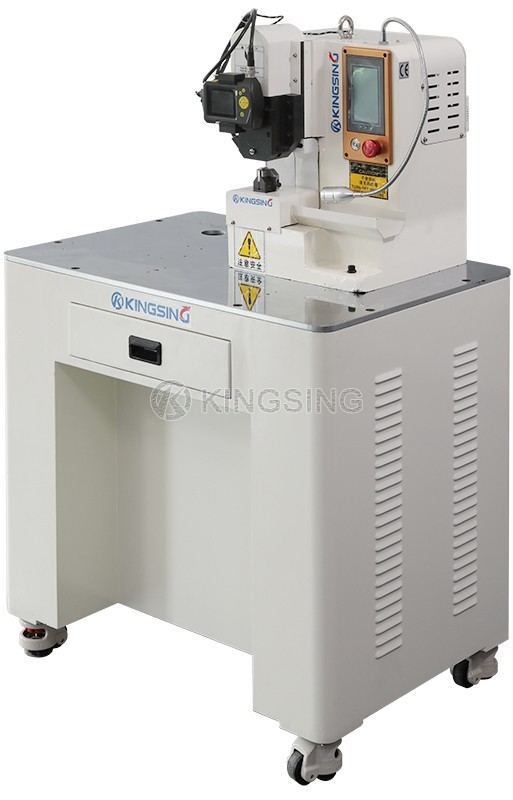

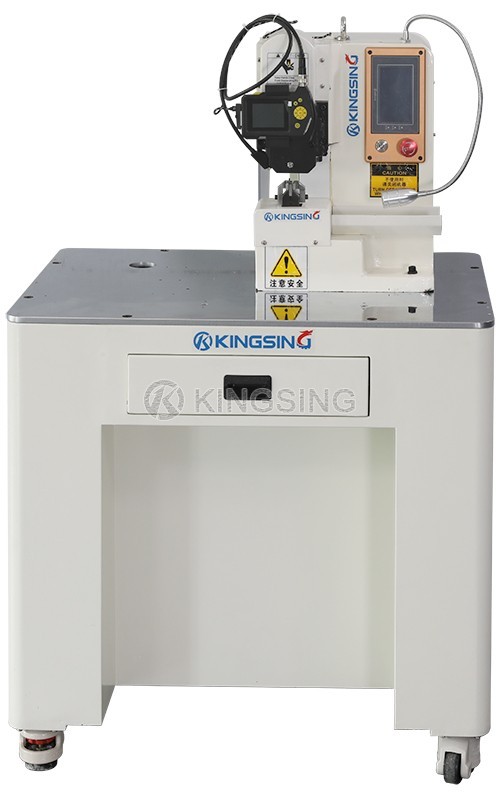

Optional features: pressure monitor, electron microscope, workbench with swivel casters

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
