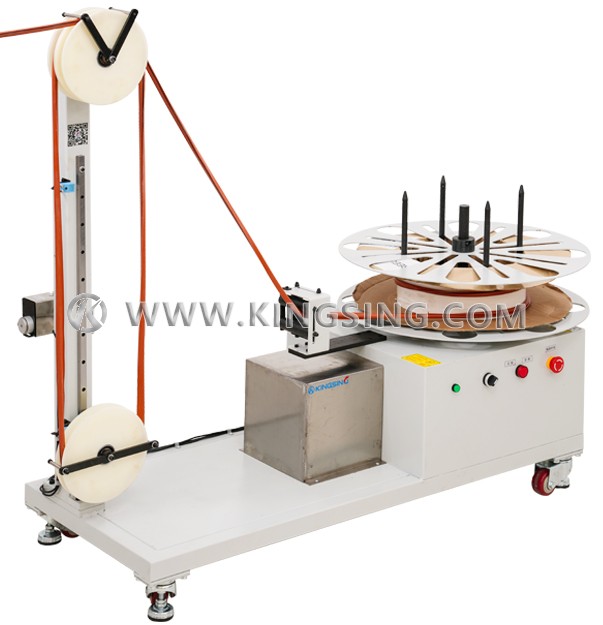

Automatic Horizontal Wire Coil Feeder

  • Model：KS-W220
  • Net. Weight：
  • Dimension：
Online Inquiry

  • Stable & reliable;

  • Excellent price/performance ratio;

  • Easy to operate;

  • High working efficacy:

  • Four adjustable fixed pins allow various sizes of bulk coils to be installed;

  • Forward and reverse design leaves adjustment of this machine more convenient;

  • This machine is equipped with potentiometer and proximity switch;

  • Adjustable wire guiding unit is beneficial for feeding different sizes of wire;

  • Available wire coil fixture in accessories can be applied to install axis wire coils;

  • Linkage system is optional, which is to control wire processing equipment by signal output line;

  • It can effectively prevent the wire from being knotted and twisted during feeding process.


Download: (1) (2)

Scope of Application: Bulk Coil or Axis Wire Coil

Wire Feeding Speed: Max. 3m/s

Storage Capacity: about 4m

Available Wire Diameter: Φ0.5~7mm (0.02~0.28in)

Bulk Coil Inner Diameter: Min. 85mm   Max. 320mm

Axis Wire Coil Diameter: Min. Inner Diameter 25mm Max. Outer Diameter 500mm

Wire Coil Weight: Max. 82Kg

Signal Output line: Optional

Power Rating: 500W

Power Supply: 220V 50Hz/60Hz

Gross Weight: 106Kg

Dimension(L×W×H): 800×530×1230mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.


Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
