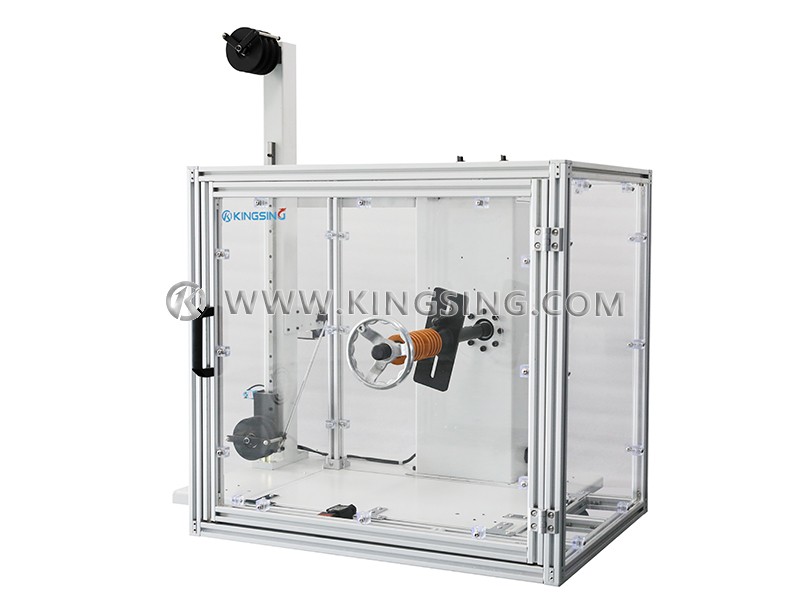

Automatic Wire Pre-feeder With Motorized Reel

  • Model:KS-W221
  • Net. Weight:
  • Dimension:

The automatic wire prefeeder KS-W221 is specifically produced for reel material, it's able to feed the wire gently and continuously to the active wire storage. The intake of other wire processing machines such as wire cutter and strippers, terminal crimpers, takes the wire out of the storage and prepare for further processing. Thanks to this wire prefeeding machine, it is possible to run the fully automatic processing machines at a high speed without worrying about the feeding capacity.

  • KS-W221 is characterized by utilizing frequency control technology to guarantee a smooth and consistent wire feeding performance, motorized brake control method allows accurate feed effect.

  • lt has an adjustable speed control system, which automatically controls accurate and effective wire feeding procedure, it has a high application range and does not require any electrical connection to its host machine, the wire dereeling speed automatically adjusts to the speed of demand.

  • The vertical structure saves installation space and features quick loading and unloading, robust design enables wire reel loading up to 50 Kg. Easy installation and operation, limited training required.

  • Easy transport for its compact frame and medium weight, convenient to move with four movable feet.

Download: (1)

Available Wire Size: Φ0.5~10mm

Wire Spool Outer Diameter: Max. 600mm

Wire Spool Inner Diameter: Min. 35mm

Wire Spool Width: Max. 300mm

Wire Spool Weight: Max. 50Kg

Wire Feeding Speed:1~3m/s, stepless speed

Storage Capacity: about 4m

Motor Power:0.75KW

Power Supply: 220V 50/60Hz

Net. Weight: 69Kg

Dimensions: 860×700×1100mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
