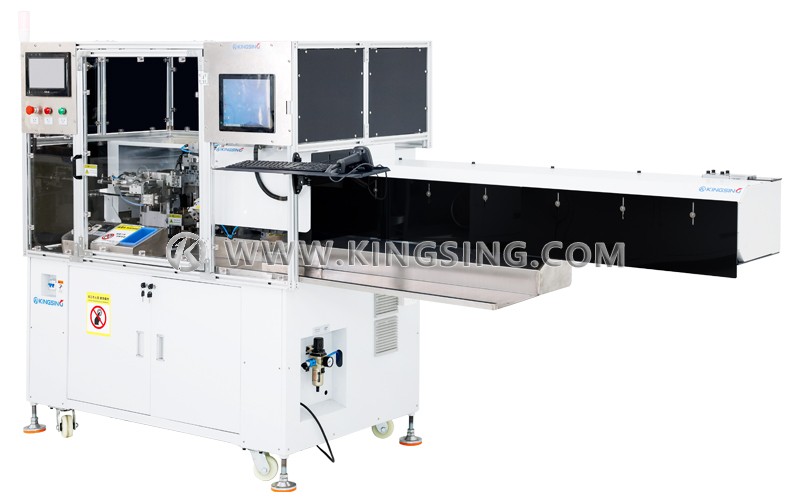

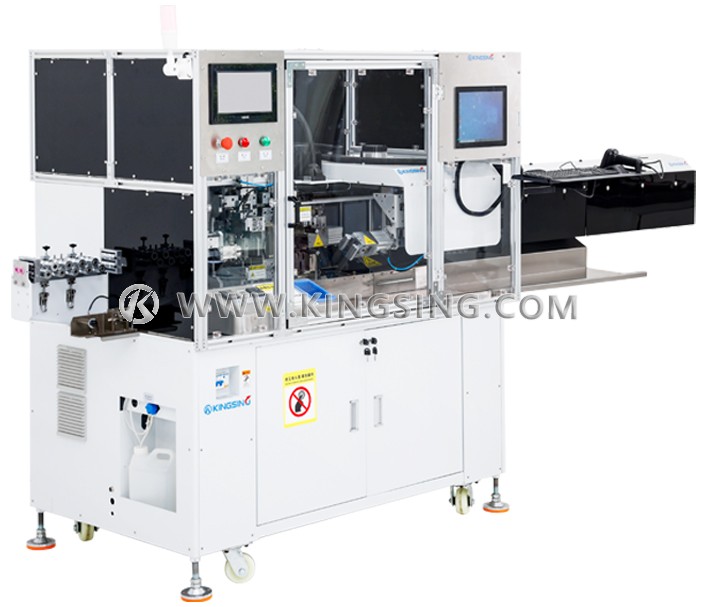

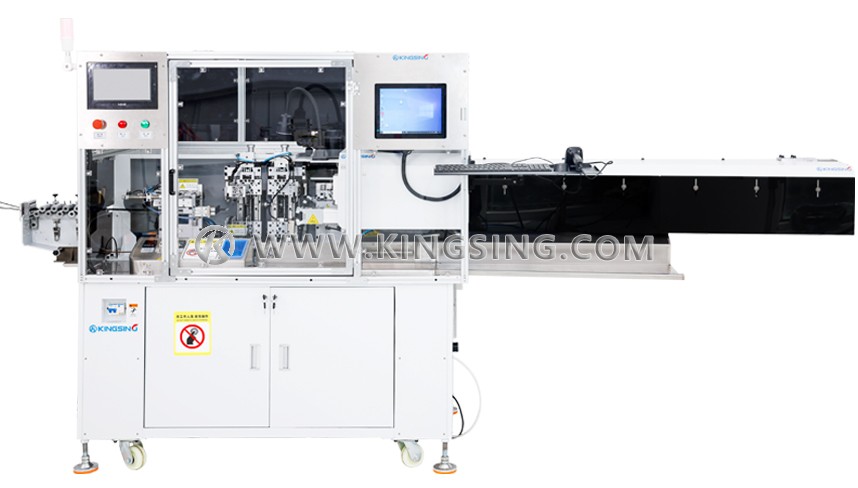

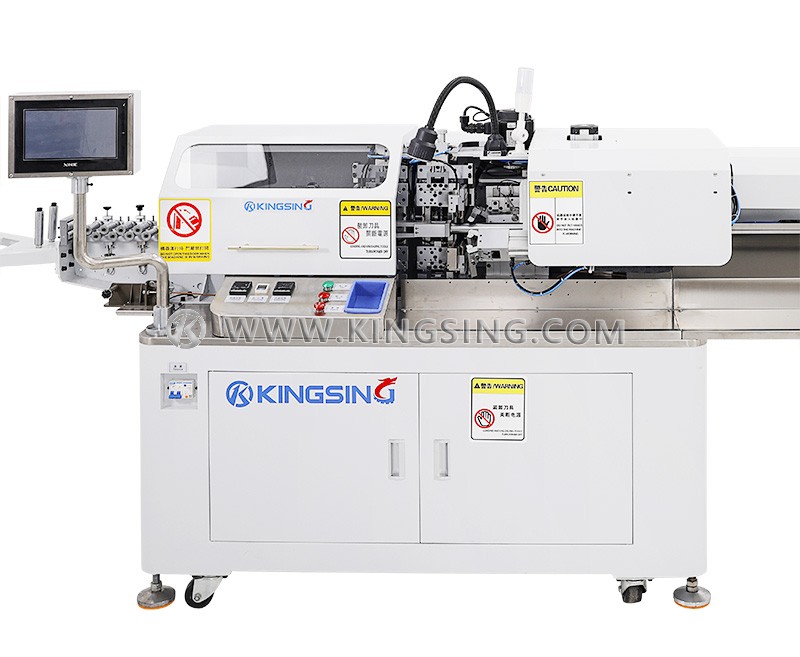

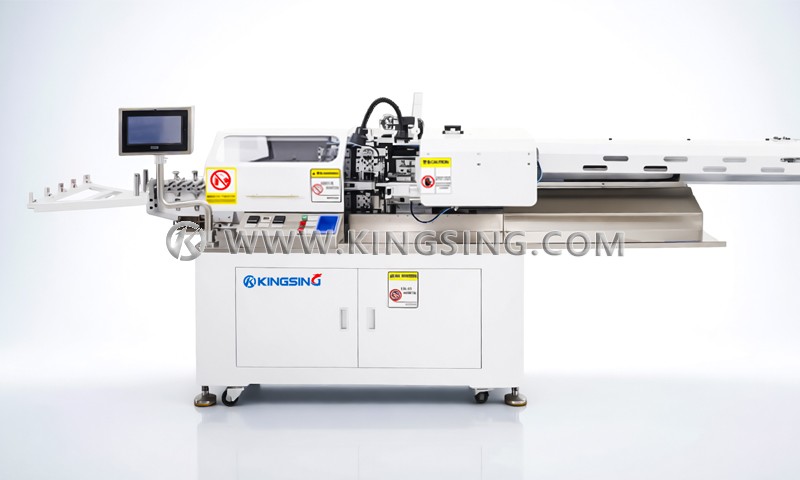

This multi-core cable processing machine is specifically designed for processing multi-core sheathed wires, integrating cutting, outer jacket stripping, core wire stripping, wire twisting, and tinning functions into one comprehensive system. It supports both flat and round sheathed cables, ensuring versatile processing capabilities for various industrial applications including automotive wiring harnesses, electronic assemblies, and telecommunications equipment.

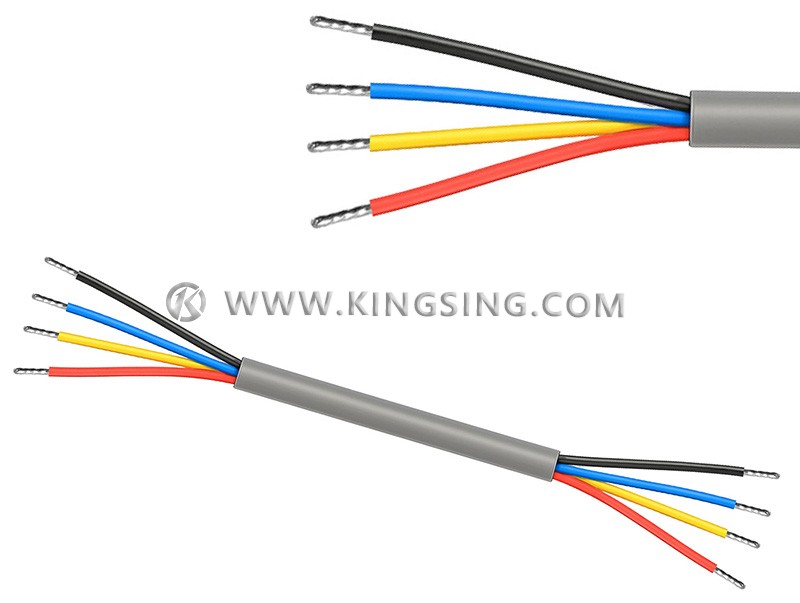

When processing round sheathed cables, the machine employs a special mechanism to arrange core wires in a horizontal position before trimming and stripping, ensuring consistent stripping length for each individual core wire. This precision feature guarantees uniform results across all processed cables, eliminating manual variations and reducing quality control issues in production lines.
Powered by 12 servo motors, the machine delivers exceptional precision and fast processing speeds. Depending on wire diameter, it can simultaneously process up to 5 sheathed wires, significantly boosting production capacity and efficiency for high-volume manufacturing environments. The servo-driven system ensures smooth operation and minimal maintenance requirements.
The machine features a user-friendly color touchscreen interface with PLC control system, making parameter setting simple and intuitive for operators of all skill levels. With program memory function, operators can easily switch between different wire specifications without lengthy setup times. This flexibility makes it ideal for manufacturers handling multiple product lines.
An optional Windows 11 computer control system is available for advanced operations, enabling MES integration for seamless factory automation. This upgrade supports remote monitoring, production data collection, and automated task scheduling, helping manufacturers achieve Industry 4.0 objectives and improve overall equipment effectiveness.
Built with industrial-grade components and robust construction, this machine is designed for continuous operation in demanding manufacturing environments. Optional safety enclosures and automatic wire prefeeding systems further enhance operational safety and productivity, making it a complete solution for modern cable processing facilities.
| Applicable Wire Type | Multi-core sheathed wire (round or flat) |
| Applicable Wire Diameter | ≤Φ8mm |
| Cutting Length | 120~1500mm (customizable, Max. 20 meters) |
| Cutting Accuracy | ±1mm |
| Jacket Stripping Length | Wire head ≤ 55mm, wire tail ≤ 190mm |
| Core Wire Stripping Length | Wire head ≤ 22mm, wire tail ≤ 18mm |
| Number of Input Wires | 1-5 (depends on wire diameter) |
| Production Efficiency | 1000-2000 pcs/hour |
| Control System | PLC with 10-inch color touch screen |
| Motor Type | 12 sets of servo motors |
| Working Voltage | AC 220V 50/60Hz (customizable) |
| Rated Power | 3500W |
| Net Weight | 380kg |
| Dimensions | 3900×850×1650mm |
| Optional Configuration | Windows 11 computer control system (MES integration supported), full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, customized solutions available upon request |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
