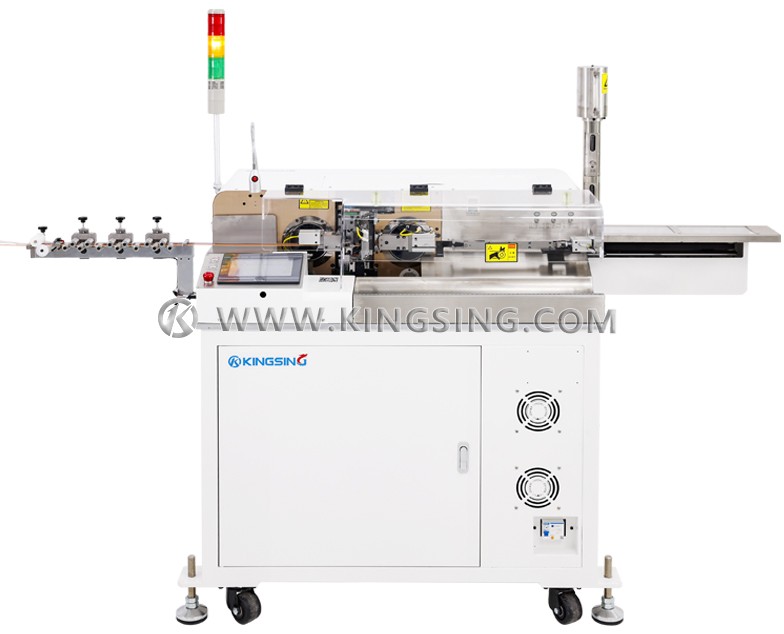

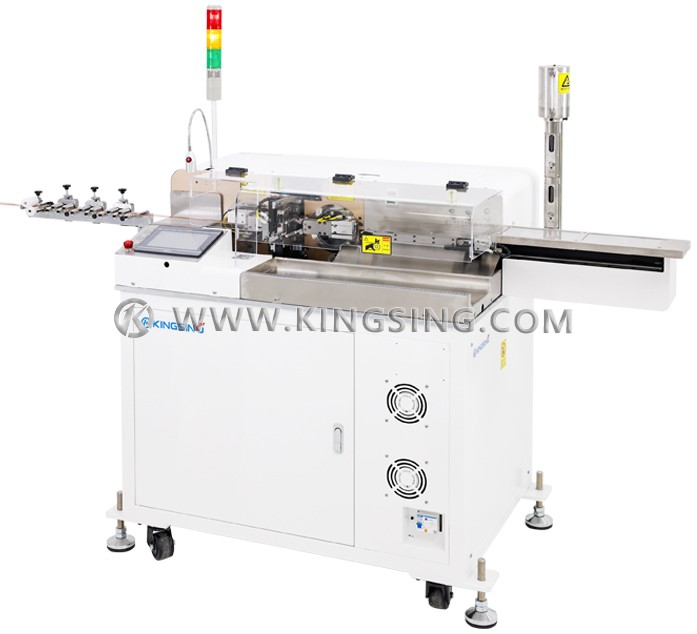

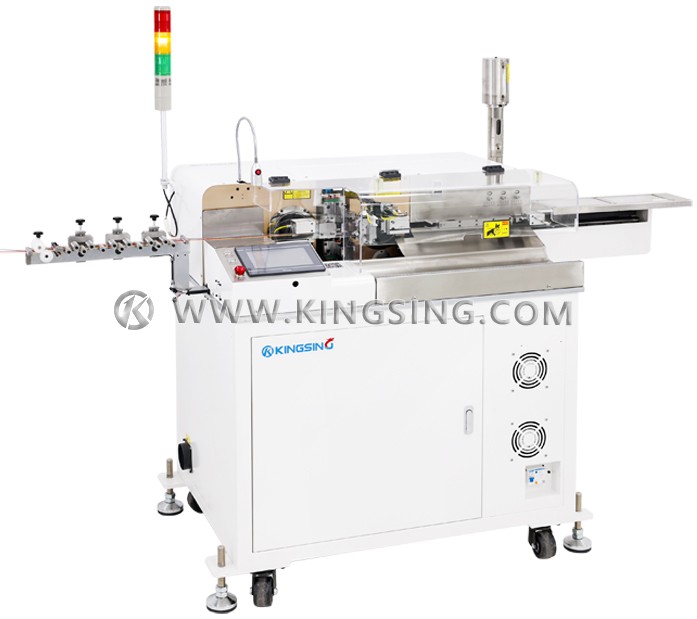

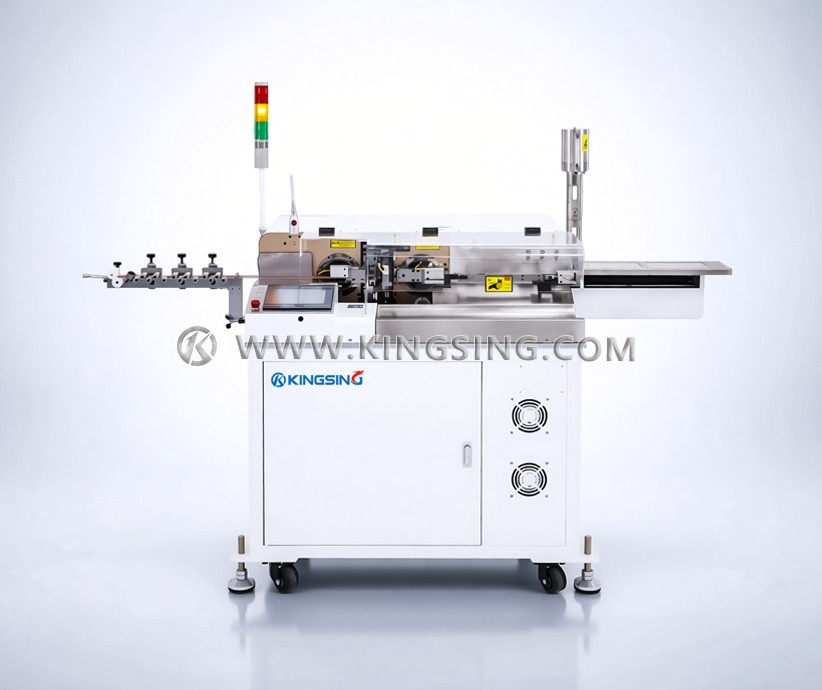

This fully automatic dual-head tinning machine integrates comprehensive wire processing capabilities, including wire cutting, single-end stripping, dual-end stripping, dual-end semi-stripping, dual-end twisting, single-end tinning, and dual-end tinning functions. The machine simultaneously outputs 8 wires, significantly enhancing production efficiency in industrial wire harness manufacturing.
Equipped with advanced computerized parameter adjustment, this machine allows precise control of wire length, stripping parameters, strip length, and tinning depth through a 7-inch full touchscreen interface. The computer-controlled knife adjustment system eliminates the need for manual shims, ensuring consistent and accurate processing results.
The machine features a pure titanium tin furnace with a flat bottom design, providing environmental friendliness and easy maintenance after extended use. High-quality pneumatic components and temperature controllers ensure reliable operation and precise temperature control during the tinning process.
With servo-driven mechanisms and precision guide rails, this machine delivers exceptional production capacity, processing multiple wire gauges simultaneously. It is ideal for electronics manufacturing, automotive wiring harnesses, and high-volume cable assembly operations where efficiency and precision are critical.
| Wire Diameter | AWG32 ~ AWG16 |
| Wire Cutting Length | 10mm~600mm (customizable) |
| Cutting Accuracy | ±(0.5 + 0.2%*L)mm L=Cutting Length |
| Stripping Length | 0~20mm |
| Stripping Length Accuracy | ±0.05mm |
| Twisting Length | 3~10mm |
| Tinning Length | 0~20mm |
| Production Capacity | AWG32 - AWG22: 1~8 wires, 9000~11000 wires/hour AWG20 - AWG18: 1~5 wires, 4000~5500 wires/hour AWG18 - AWG16: 1~3 wires, 2700~3000 wires/hour |
| Air Pressure | 0.5~0.7Mpa |
| Power Supply | AC 220V 50/60 Hz (customizable) |
| Weight | 380kg |
| Dimensions | 1210×770×1370mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
