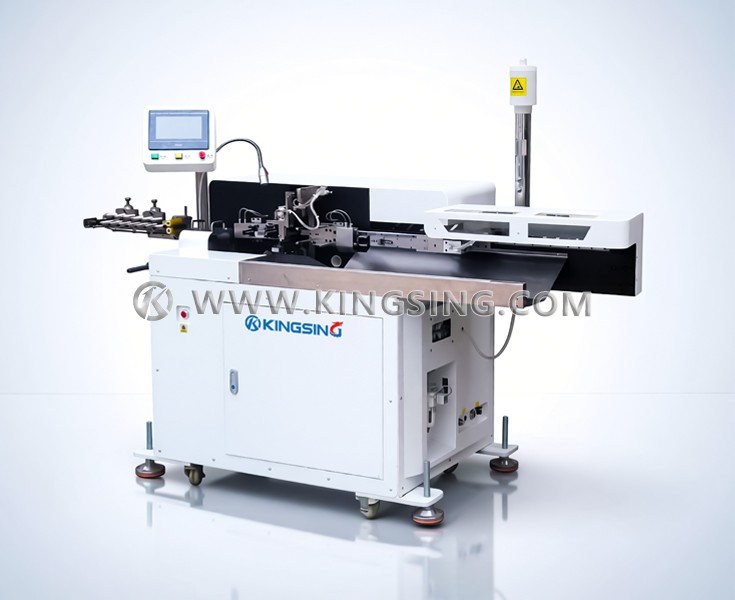

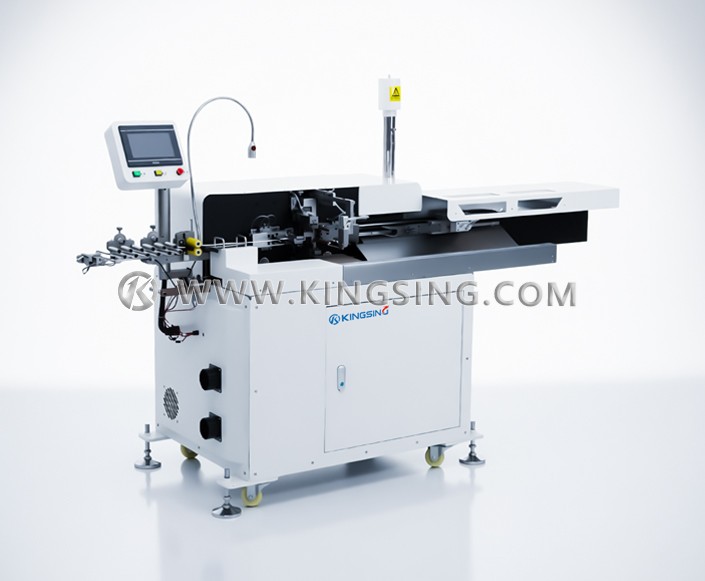

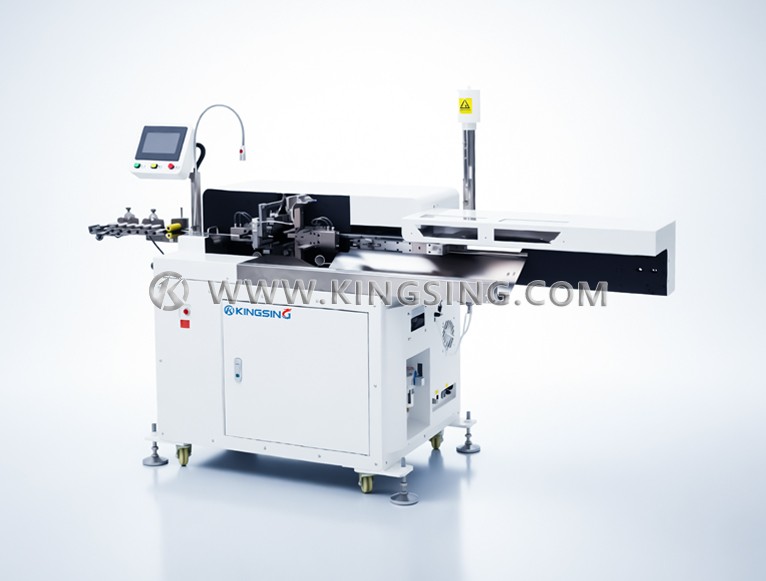

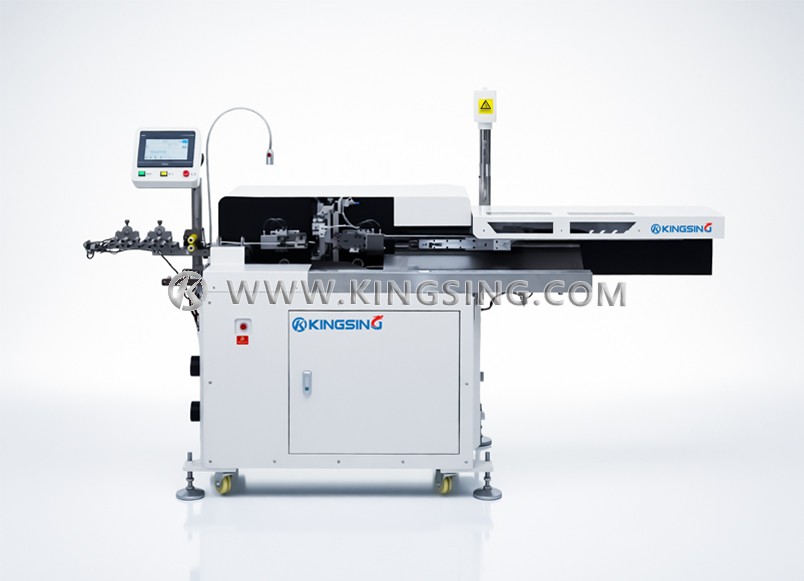

This heavy-duty wire stripping and tinning machine is a fully automatic solution that integrates wire cutting, stripping, twisting, and tinning in one compact system. Designed specifically for processing thick wires, it can simultaneously handle two 10mm² cables while also accommodating up to 10 thin wires for maximum production flexibility.
Equipped with six Inovance servo motors and premium pneumatic components from Airtac and SMC, the machine ensures reliable performance and precise control. The high-power servo motor drive provides robust power output, while the widened blade frame accommodates thick wire processing requirements.
The color touch-screen interface allows operators to set parameters digitally, including blade depth, stripping length, twisting strength, and tinning depth. All adjustments can be made quickly via the touch screen for maximum convenience and operational efficiency.

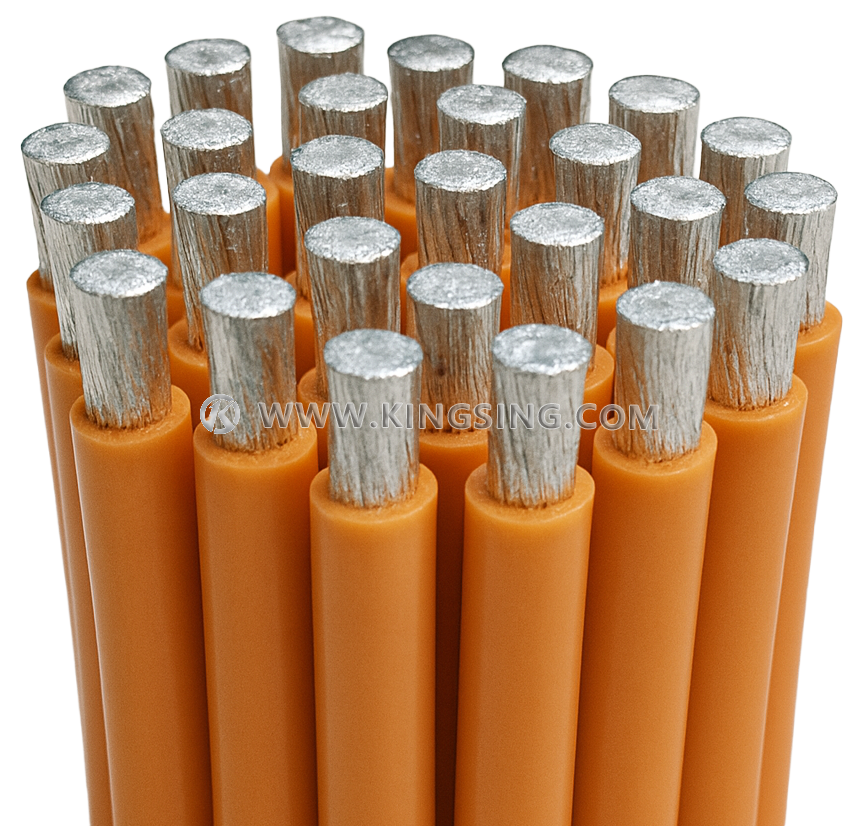

The tin feeding system is powered by a constant-speed motor for accurate solder delivery, while front and rear servo-driven tinning units ensure consistent soldering quality. Advanced programming includes post-tinning wire trimming and secondary tinning functions, ensuring smooth, burr-free wire ends even for thick cables.
Ideal for mass production environments requiring high efficiency, precision, and stability, this machine significantly enhances productivity while maintaining superior processing quality across various wire gauges and applications.
| Wire Size Range | AWG28~AWG6 | ||
| Cutting Length | 15~830mm (customizable) | ||
| Cutting Length Accuracy | ±(0.5+0.2%×L)mm L=cutting length | ||
| Stripping Length | 0~15mm (customizable) | ||
| Stripping Length Accuracy | ±0.1mm | ||
| Tinning Length | 0-15mm (customizable) | ||
| Number of Input Wires | 1-10 wires (depends on wire diameter) | ||
| Production Capacity | 500-8000pcs/hour | ||
| Twisting Function | Available (suitable for fine wires only) | ||
| Drive System | Six Inovance servo motors | ||
| Operation Interface | Color touch screen | ||
| Air Supply | 0.5~0.7Mpa | ||
| Rated Power | 2.5KW | ||
| Power Supply | AC 220V 50/60Hz (customizable) | ||
| Net Weight | 350kg | ||
| Dimensions (L×W×H) | 2150×750×1400mm | ||
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
