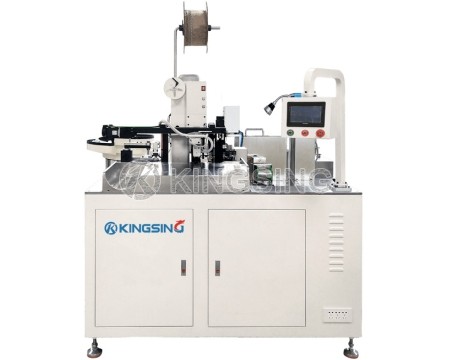

This fully servo-driven precision wire stripping and tinning machine integrates cutting, stripping, twisting, and tin soldering functions into a single high-efficiency unit. The machine can be customized to process 2-8 wires simultaneously, with the standard configuration handling 5 single wires and achieving high production rates, significantly enhancing manufacturing productivity and reducing labor costs.
Featuring full servo control and high-precision blade assembly with exceptional positioning and repeatability accuracy, this machine excels at processing ultra-fine wires down to AWG32 as well as standard electronic cables. The advanced servo motor system ensures consistent performance and minimal variation across all production runs, making it ideal for applications requiring strict quality control standards.
When equipped with automatic wire splitting fixtures, the machine can process parallel twin wires and perform automatic splitting at both ends for complex cable configurations. The optional automatic twisting function enables simultaneous processing of 4 single wires, grouping every 2 wires for pair twisting applications commonly used in data transmission cables.
| Model | Processing Effect | Features |
|---|---|---|

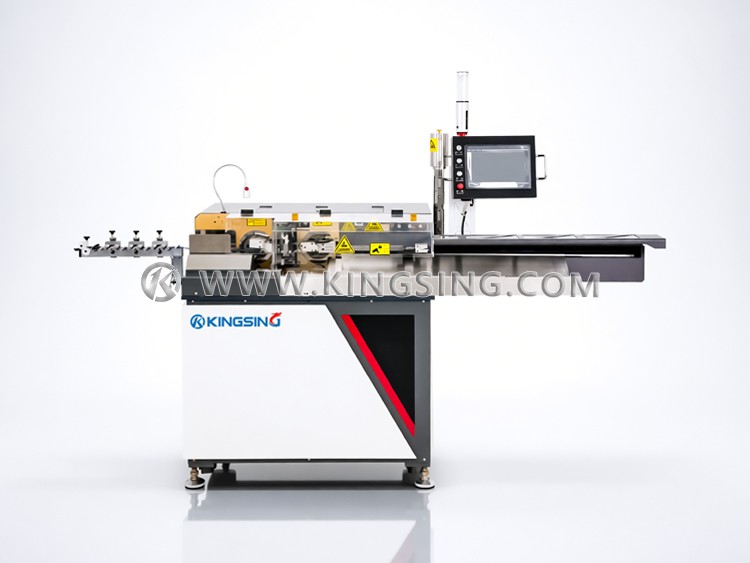

| KS-W1143C |  | Single Wires |
| KS-W1143T |  | Pair Twisting |
| KS-W1143P |  | Parallel Twin Wires |
The programmable memory system stores up to 200 different wire processing programs, allowing quick changeovers between different product specifications and maintaining production flexibility for diverse manufacturing requirements. Designed for customers with extremely high quality requirements, this machine delivers exceptional reliability and repeatability in high-volume production environments while maintaining the precision necessary for critical applications in demanding industries.
| Model | KS-W1143C | KS-W1143T | KS-W1143P |
| Applicable Wire Type | Electric Single Wire | Parallel Twin Wire | |
| Number of Input Wires | 1-8 | 2-4 | 1-4 |
| The specific number of input wires is customized based on wire diameter and other factors. | |||
| Production Capacity | 6000-8000pcs/hour | 2000-3000pcs/hour | 1000-2000pcs/hour |
| Wire Size Range | AWG32~AWG18 | ||
| Cutting Length | 10~600mm (customizable) | ||
| Cutting Length Accuracy | ±(0.2+0.2%×L)mm L=cutting length | ||
| Stripping Length | 0~15mm (customizable) | ||
| Stripping Length Accuracy | ±0.05mm | ||
| Twisting Tinning Length | 3~7mm | ||
| Program Memory | Max. 200 groups | ||
| Air Supply | 0.5~0.7Mpa | ||
| Rated Power | 3KW | ||
| Power Supply | AC 220V 50/60Hz (customizable) | ||
| Net Weight | 400kg | ||
| Dimensions (L×W×H) | 2180×810×1420mm | ||
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
