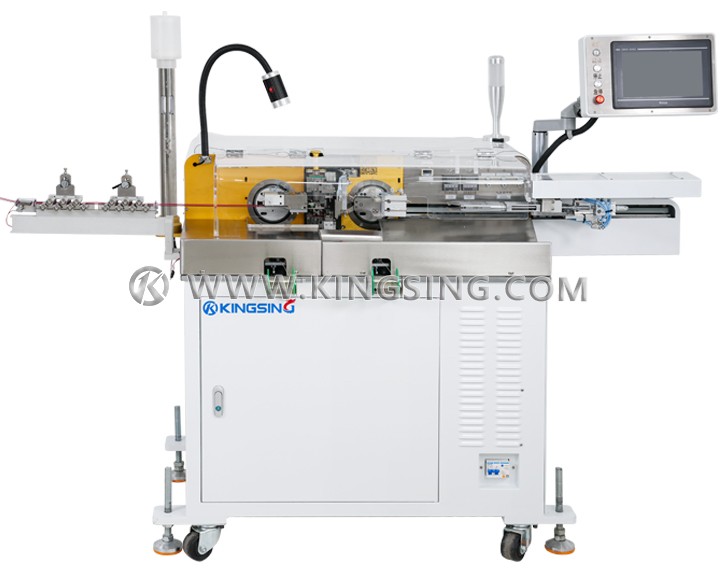

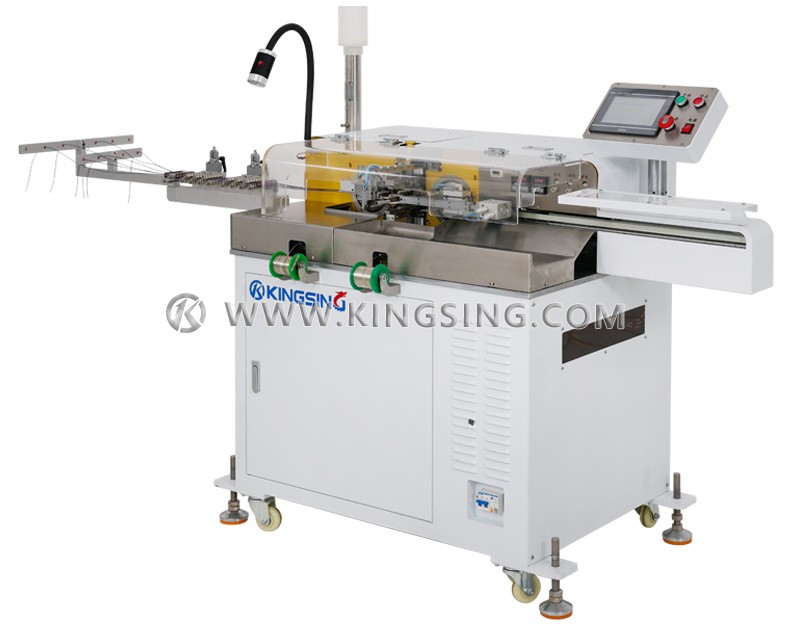

This high-precision, fully servo-controlled wire processing machine is designed to integrate cutting, stripping, twisting, and tinning functionalities into a single compact solution. It efficiently processes 2-8 wires simultaneously, with the standard setup managing five single wires, which enhances throughput and minimizes labor costs for increased productivity.
The equipment's advanced servo technology and meticulously engineered blade system ensure excellent positioning accuracy and consistency. It adeptly processes ultra-fine wires down to AWG32 and standard electronic cables, providing stability throughout production runs. This makes it ideal for manufacturers with stringent quality control standards.
Optional fixtures permit automatic splitting of parallel twin wires, ensuring precise and clean separation at both cable ends. Furthermore, the machine supports an optional automatic pair twisting module, processing four single wires simultaneously to create twisted pairs, commonly required in data cable applications.
| Model | Processing Effect | Features |
|---|---|---|
| KS-W1150C |  | Single Wires |

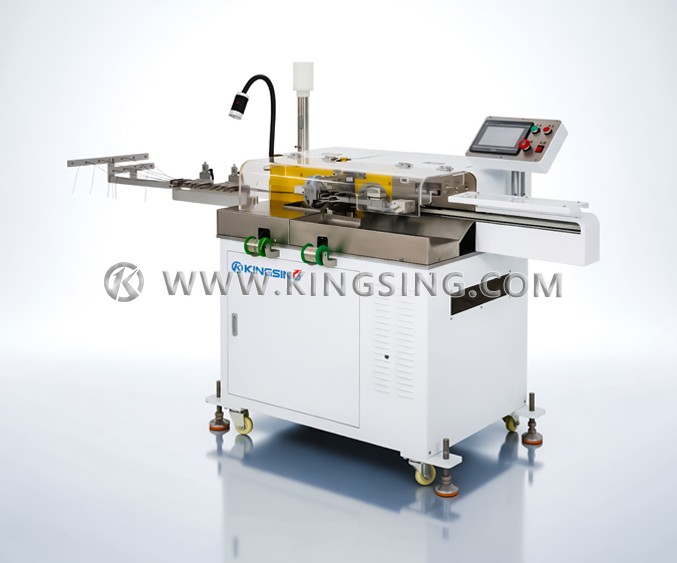

| KS-W1150T |  | Pair Twisting |

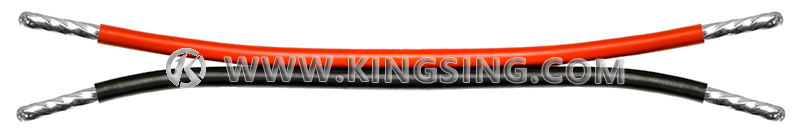

| KS-W1150P |  | Parallel Twin Wires |
Equipped with a built-in program memory function, this machine allows rapid switching between specifications, offering versatility to meet diverse production needs. It's crafted for industries demanding high precision, providing reliable performance in mass production environments.
| Model | KS-W1150C | KS-W1150T | KS-W1150P |
| Applicable Wire Type | Electric Single Wire | Parallel Twin Wire | |
| Number of Input Wires | 1-8 | 2-4 | 1-4 |
| The specific number of input wires is customized based on wire diameter and other factors. | |||
| Production Capacity | 6000-8000pcs/hour | 2000-3000pcs/hour | 1000-2000pcs/hour |
| Wire Size Range | AWG32~AWG18 | ||
| Cutting Length | 10~600mm (customizable) | ||
| Cutting Length Accuracy | ±(0.2+0.2%×L)mm L=cutting length | ||
| Stripping Length | 0~15mm (customizable) | ||
| Stripping Length Accuracy | ±0.05mm | ||
| Twisting Tinning Length | 3~7mm | ||
| Program Memory | Max. 40 groups | ||
| Air Supply | 0.5~0.7Mpa | ||
| Rated Power | 3KW | ||
| Power Supply | AC 220V 50/60Hz (customizable) | ||
| Net Weight | 400kg | ||
| Dimensions (L×W×H) | 2180×810×1420mm | ||
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
