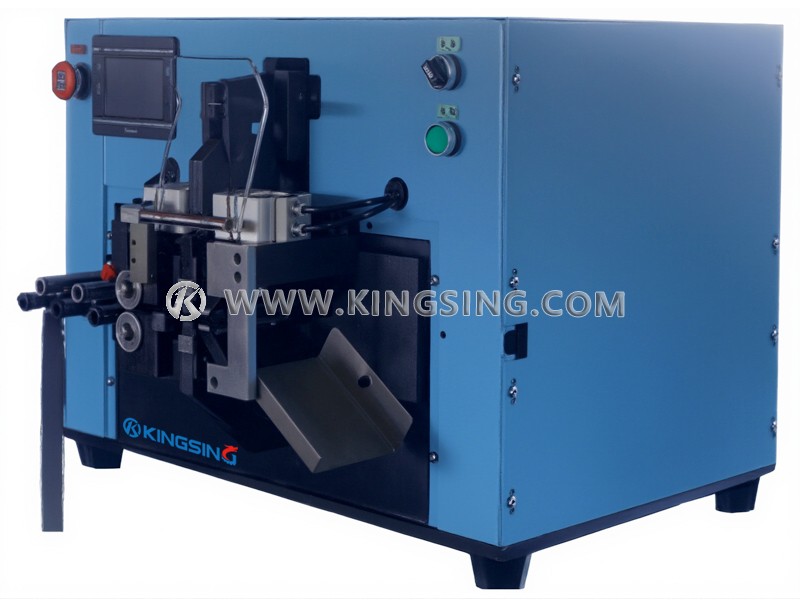

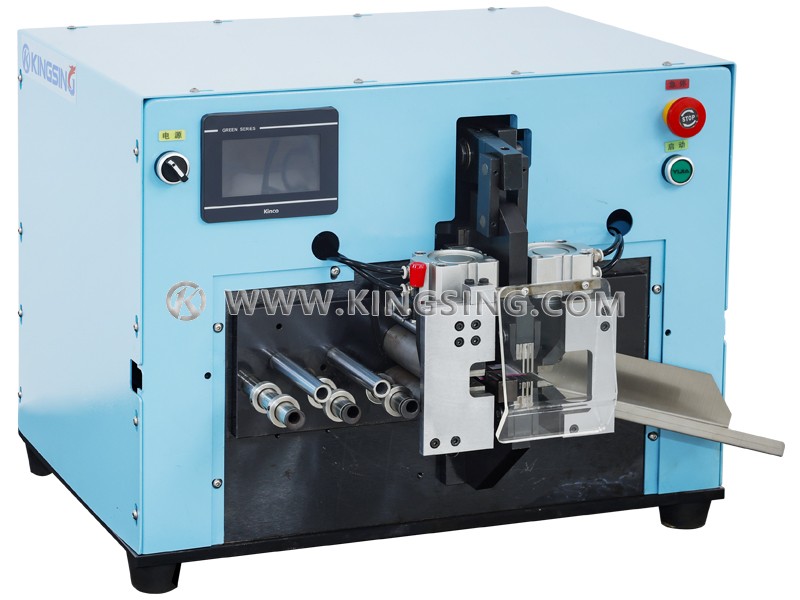

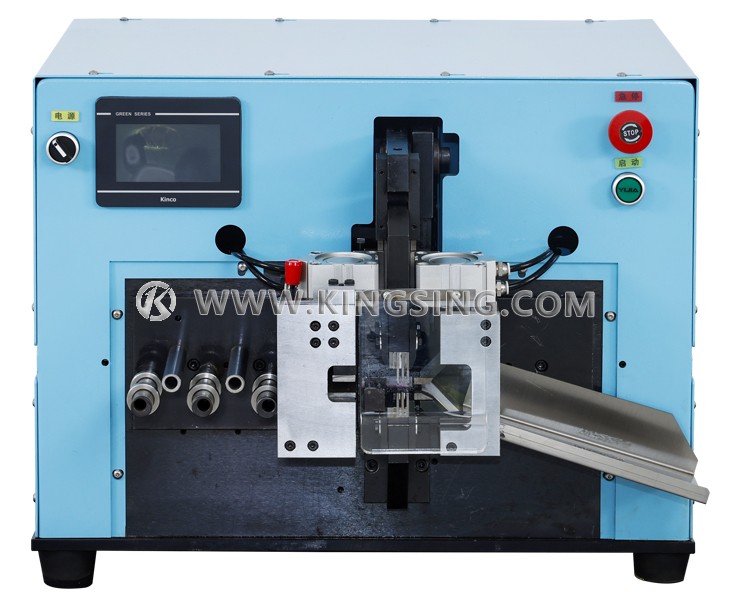

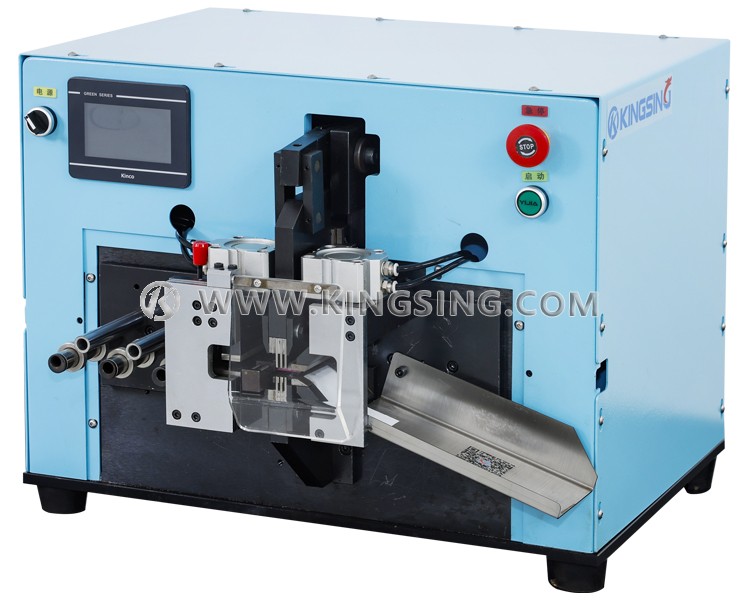

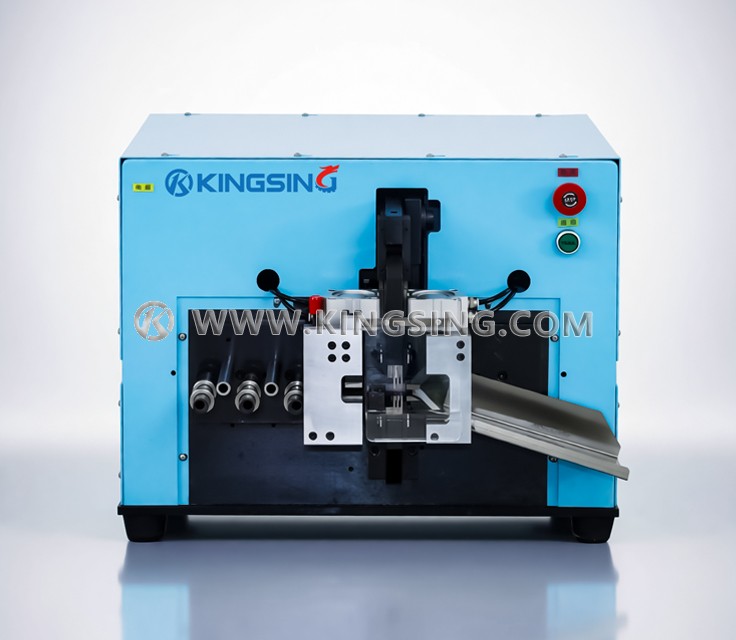

Engineered for high-precision processing of ultra-short and ultra-wide ribbon cables, this fully automatic cutting and stripping machine delivers unmatched efficiency for modern electronics manufacturing. It handles flat cables up to 85mm in width with pinpoint accuracy, making it ideal for high-density applications in consumer electronics, automotive systems, and industrial control panels.
Designed for dual-end stripping, it supports minimum cutting lengths of just 15mm, enabling seamless production of extremely short cable segments with zero waste and consistent quality. The high-efficiency dual-action blade system completes both cutting and insulation removal in a single operation, reducing cycle time and boosting throughput to over 4,000 pieces per hour in short-length production. Elevate your production line with this advanced ribbon cable solution and achieve faster, cleaner, and more consistent results in every batch.
Optional accessories like a precision conveyor belt and customizable splitting molds enable accurate alignment and gentle handling of delicate short cables under 25mm, even in complex wire harness applications. Its durable construction and user-friendly control interface deliver long-term reliability in demanding industrial environments.
| Processing Range | Flat cables up to 85mm width |
| Minimum Cutting Length | 15mm (dual-end stripping) |
| Production Capacity | 2,600 – 5,000 pieces/hour (for ≤100mm cables) |
| Cutting Accuracy | 0.2±0.02×L mm |
| Stripping Length | 1mm – 4mm |
| Power Supply | AC 220V / 50Hz (customizable) |
| Air Pressure Requirement | ≥6 kg (clean air required) |
| Net Weight | 120kg |
| Machine Dimensions | 650 × 650 × 500 mm |
Remark: When processing wires shorter than 25mm, a conveyor belt is required as an optional accessory.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
