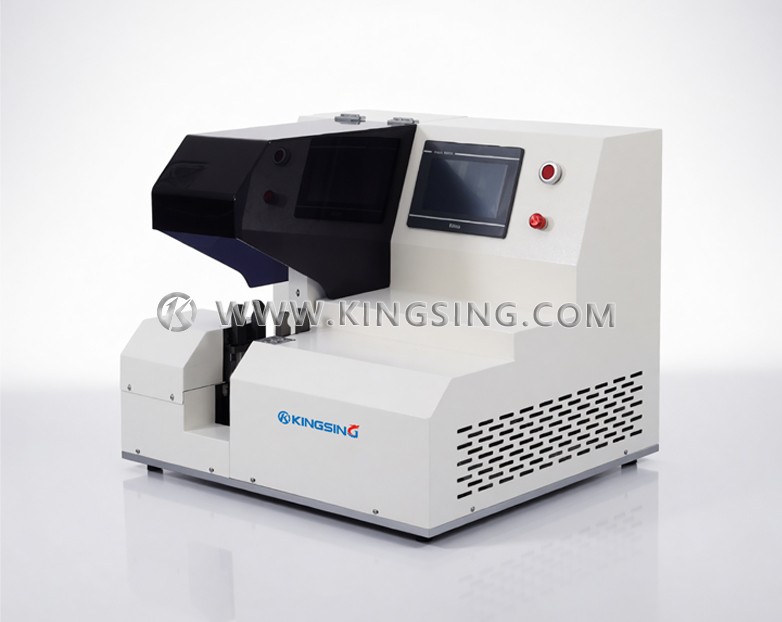

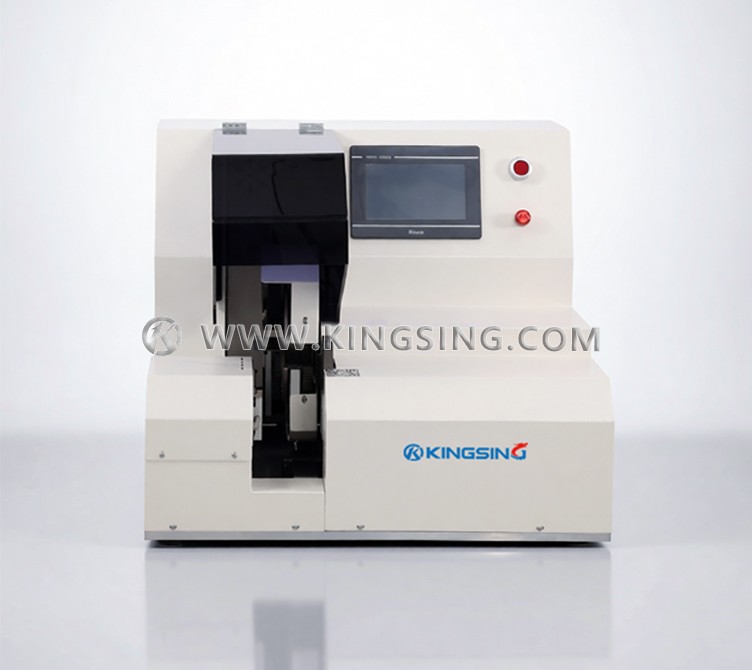

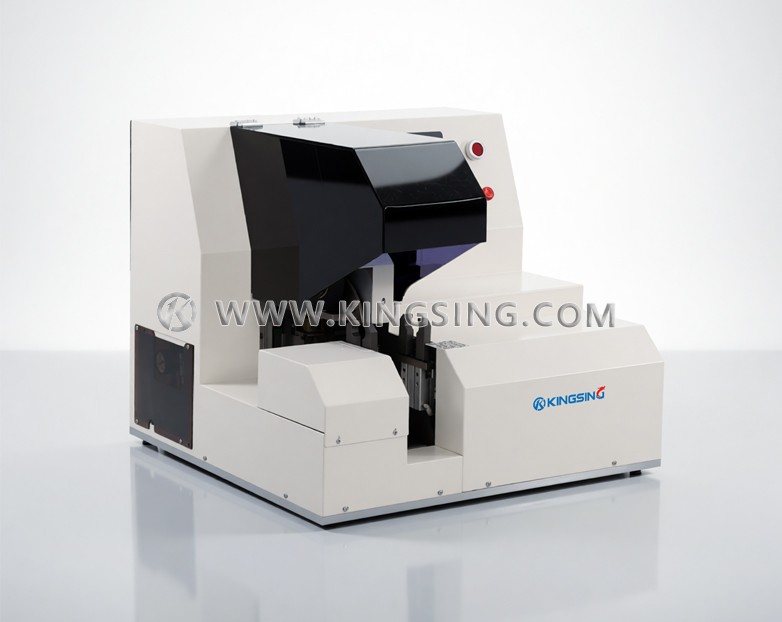

Automatic Wire Harness Taping Machine

  • Model:KS-A2053
  • Net. Weight:
  • Dimension:

This equipment is applicable for the fixed point tape wrapping work, according to the requirements, it can adopt digital adjusting method to adjust the tape wrapping number of turns, any number of turns is acceptable, the adjustment is convenient. For the wrapping of round pipe or thick cable, it is more tight and smooth. The tape wrapping overlap degree is high, especially for the tape of narrow width, the performance is good. Operation is simple and convenient, which can greatly reduce the labor intensity of the workers.

Download: (1)

Operating mode: touch screen, foot pedal

Working mode: full wrapping, point wrapping, multi-segment wrapping

Air pressure: 0.4-0.6MPa

Wrapping length: ≥120mm

Wire diameter: 6mm-28mm

Tape specifications: outer diameter: < 105mm, width: <40mm

Tape type: PVC /PET/ lint / acetate tape , etc

Precision of wrapping: ±2mm

Humidity: 10-90%RH (no condensation)

Max frequency: 600Pcs/H

Power supply: AC110V~ AC220V

Working temperature: 0-40°C

Rated power: 400W

Dimensions: 650*600*560mm

Net weight: 70kg

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
