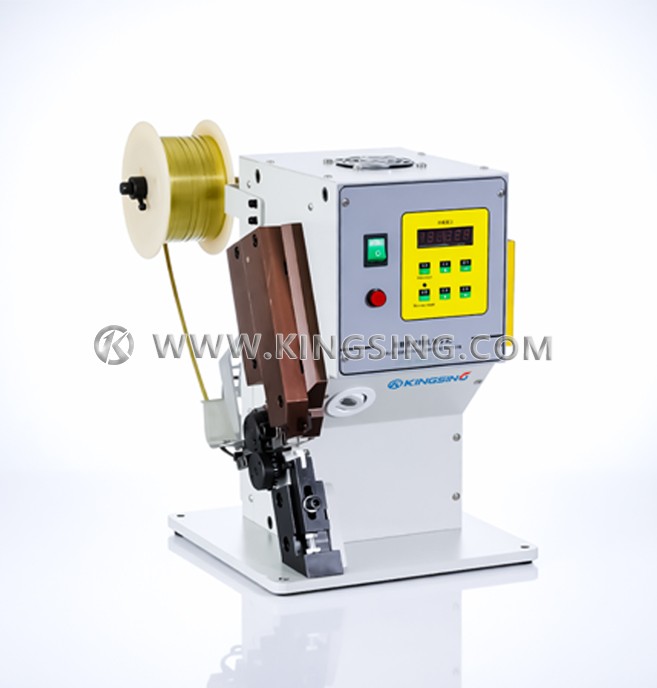

Automatic Copper Tape Splicing Machine

  • Model:KS-T92 Series
  • Net. Weight:
  • Dimension:
  1. This series is an electric feeding silent copper tape machine, and there are 2 sub-models to choose from (see technical parameters for details). It uses copper tape splicing wire, which is often used for the butt connection of wires and wires and the butt connection of wires and electronic components. The cost of using copper tape splicing is lower than that of traditional crimping terminals or soldering. The cutting, forming, and crimping of the copper tape are completed at one time, and no waste is generated during the splicing process. Strong pulling force and stable quality.

  2. Driven by variable frequency motor, the motor only works when crimping, energy saving and low noise. The copper tape is fed by a stepping motor, the feeding length can be set in the program, and the feeding length is stable. One machine can process a variety of different products, just need to replace the corresponding crimping mold, we can customize the corresponding mold according to the product size. The width of the copper tape can be customized, and the common widths are 2mm, 4mm, 6mm, etc.

KINGSINGKINGSINGKINGSINGKINGSING
KINGSINGKINGSINGKINGSINGKINGSING


Download: (1) (2)
ModelKS-T9211KS-T9231
Max Pressure
3T4T
Motor Power750W1500W
Applicable Wire Diameter0.1~12mm21~25mm2
Copper Tape Width1~6mm1~12mm
Net Weight
55kg170kg
Dimensions
300*300*400mm400*600*650mm

Working voltage: 220V 50/60Hz

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
