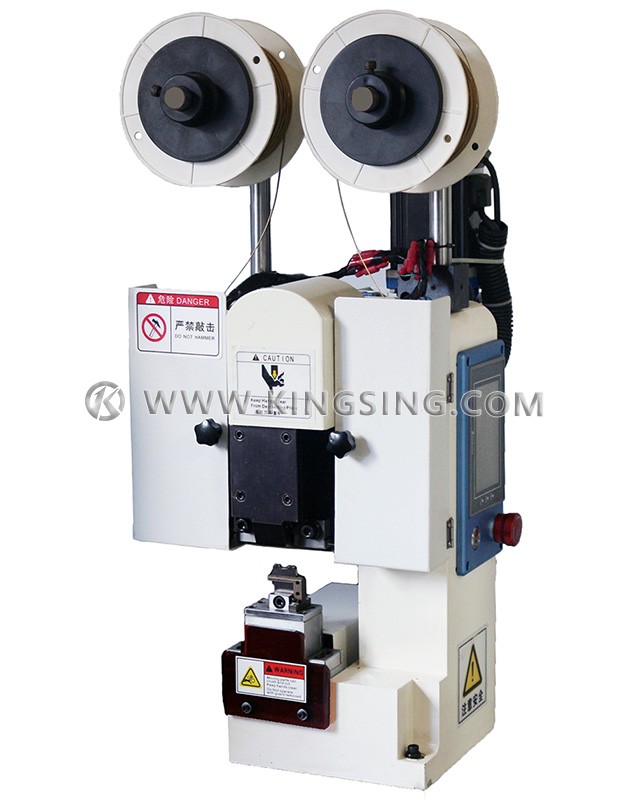

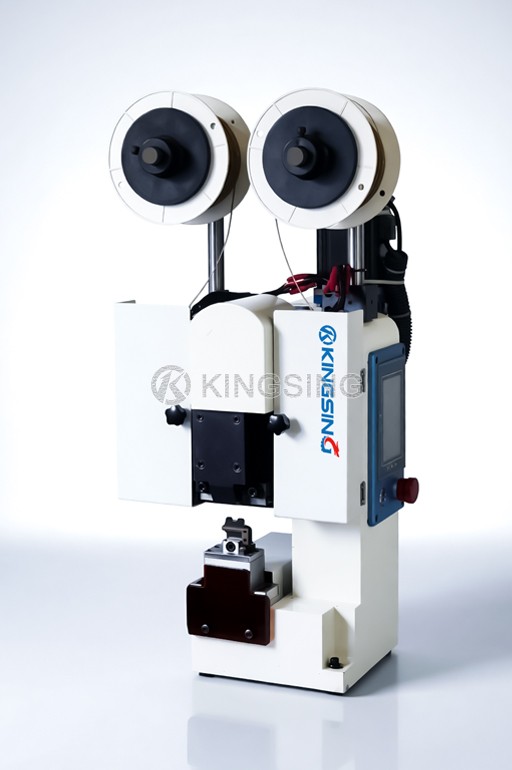

MINI Type Double Copper Tape Machine

  • Model:KS-C108D
  • Net. Weight:
  • Dimension:
  1. This is a miniature double copper tape machine with a compact structure. It was originally designed for fully automatic production lines because it occupies less space in the work station. This machine can also be used as a semi-automatic machine alone, and its small size and weight are convenient for handling. The double type copper tape machine is usually used to connect the resistance pins or other electronic component pins with two wires at the same time. It can splice two copper tapes at one time, which greatly improves the production efficiency.

  2. The crimping mechanism is driven by a high-precision servo motor, which is specially designed for processing high-end precision wires. One machine can crimp a variety of products of different sizes, and only need to replace the corresponding crimping die. The width of the copper strip is available in various specifications, commonly used are 2mm, 4mm, 6mm, 8mm, etc.

  3. Color touch screen operation interface, feeding length, crimping height and other parameters can be set in the program, to adjust the pressure only need to modify the corresponding parameters, no need to manually adjust the screw. With the program memory function, the corresponding parameters can be called out with one key after changing the mold or switching products, saving debugging time.


Maximum pressure: 2T

Applicable wire diameter: AWG32~12

Copper strip width: 1~8mm

Copper strip thickness: 0.2~0.8mm

Crimping accuracy: ±0.05mm

Operation interface: color touch screen

Start mode: foot switch

Motor Type: Servo Motor

Motor power: 750W

Voltage: 220V 50/60Hz (110V can be customized)

Net weight: 95kg

Dimensions: 300*350*700mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
