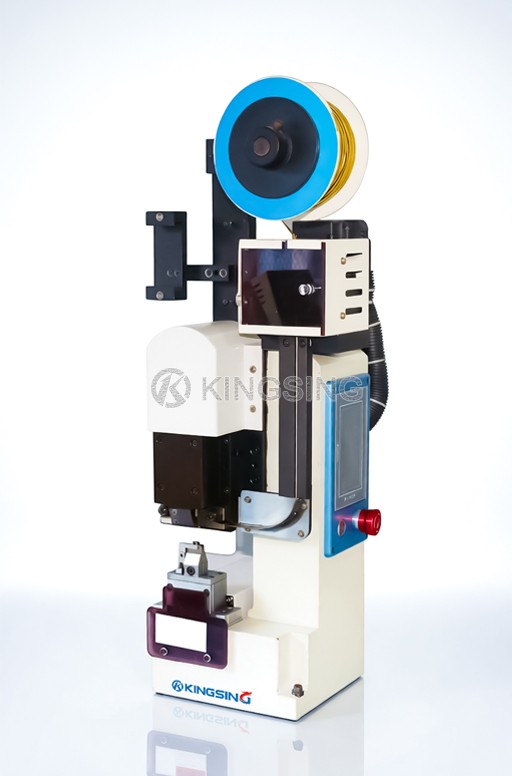

MINI Type Single Copper Tape Machine

  • Model:KS-C108M
  • Net. Weight:
  • Dimension:
  1. This is a miniature copper tape machine with compact structure and small size. It was originally designed for fully automatic production lines because it can take up less work station space. This machine can also be used as a stand-alone semi-automatic machine.The micro-copper tape machine is driven by a servo motor and has high crimping accuracy. It is specially designed for processing high-end precision wires. The modular crimping fixture is easy to replace.One machine can crimp a variety of products of different sizes, just change the corresponding crimping die. The width of the copper tape is available in various specifications, commonly used are 1mm, 2mm, 4mm, 6mm, 8mm, etc. The whole machine has strong rigidity and can be equipped with a pressure monitoring system. When the pressure is abnormal, it will automatically alarm and stop.

  2. It uses copper tape splicing wire, which is often used for the butt connection of wires and wires and the butt connection of wires and electronic components. The cost of using copper tape splicing is lower than that of traditional crimping terminals or soldering. The cutting, forming, and crimping of copper tapes are completed at one time, and no waste is generated during the splicing process. Strong pulling force and stable quality.

  3. Color touch screen operation interface, feeding length, crimping height and other parameters can be set in the program, to adjust the pressure only need to modify the corresponding parameters, no need to manually adjust the screw. With the program memory function, the corresponding parameters can be called out with one key after changing the mold or switching products, saving debugging time.


Maximum pressure: 2T

Applicable wire diameter: AWG32~12

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.8mm

Crimping accuracy: ±0.05mm

Operation interface: color touch screen

Start mode: foot switch

Motor Type: Servo Motor

Motor power: 550W

Net weight: 85kg

Dimensions: 200*350*700mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
