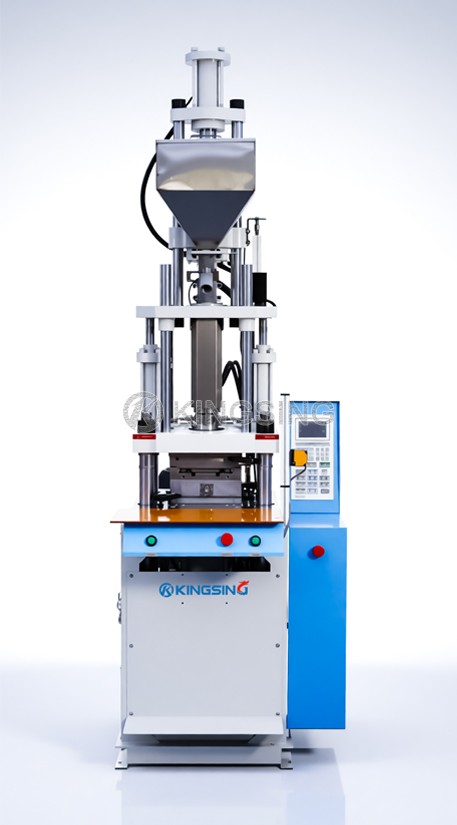

Power Cord Plug Injection Molding Machine

  • Model:KS-J35T
  • Net. Weight:1200kg
  • Dimension:1600×1100×2200mm

This is a power plug injection molding machine, suitable for injection molding of power plugs, data cables, USB, audio cables, chargers, connectors and other products. The injection mold needs to be customized according to the product, and the quantity that can be injected at a time depends on the size of the product.

It is suitable for various thermoplastics: PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, PA, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon , polypropylene, polystyrene, etc.


Download: (1) (2)
Screw Diameter26mm28mm32mm
Injection Pressure1677kgf/cm21446kgf/cm21107kgf/cm2
Theoretical Shot Volume61cm371cm393cm3
Max. Shot Weight56.6/2 (g/oz)65.6/2.3 (g/oz)85.7/3 (g/oz)
Injection Rate41cm3/s48cm3/s62cm3/s

Screw Stroke: 116mm

Screw Ration Speed: 0~148rpm

Nozzle Contact Force: 3.5ton

Nozzle Retraction Stroke: 150mm

Stages of Temperature Control: 3

Clamping Force: 35ton

Platen Size: 500*340mm

Distance Between Columns: 360*200mm

Min. Mould Thickness: 60/145mm

Opening Stroke: 215mm

Max. Mould Opening Distance: 275/360mm

Ejector Force: 1.3ton

Ejector Stroke: 35mm

Max. Hydraulic Pressure: 140kgf/cm2

Oil Pump Output: 31cc/rec

Cooling Water Consumption: 500~700L/hour

Motor Power: 4KW

Barrel Heating Power: 2.4KW

Total Wattage: 6.4KW

Net. Weight: 1200kg

Gross Weight: 1300kg

Dimension: 1600×1100×2200mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
