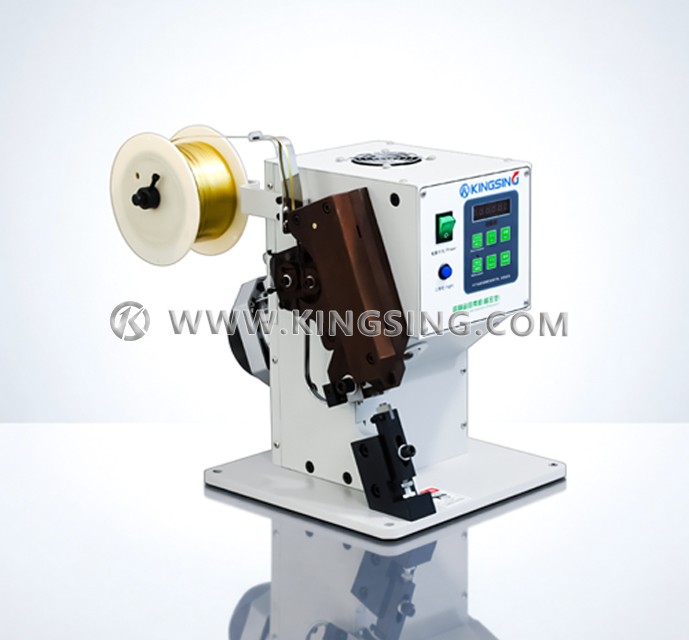

Automatic Copper Tape Splicing Machine

  • Model:KS-T9210
  • Net. Weight:
  • Dimension:
  1. This is an economical silent copper tape machine, which uses copper tape splicing , which is often used for the connection of wires and wires and the connection of wires and electronic components. The cost of using copper tape splicing is lower than that of traditional crimping terminals or soldering. The cutting, forming, and crimping of copper tapes are completed at one time, and no waste is generated during the splicing process. Strong pulling force and stable quality.

  2. Driven by variable frequency motor, the motor only works when crimping, energy saving and low noise. The width of the copper tape is available in a variety of specifications, and the common widths are 1mm, 1.5mm, 2mm, 4mm, 6mm, etc. The crimping die can be customized according to the size of the product. One machine can process many different products, just change the corresponding crimping die.

KINGSINGKINGSINGKINGSINGKINGSING
KINGSINGKINGSINGKINGSINGKINGSING


download: (1)

Maximum pressure: 2T

Motor power: 550W

Applicable wire diameter: 0.1~4mm2

Copper tape width: 1~6mm

Feeding method: cam feeding

Voltage: 220V 50/60Hz

Net weight: 46kg

Dimensions: 370*310*410mm
