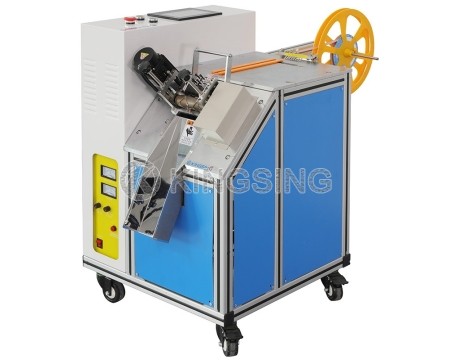

Hot Knife Oblique Tape Cutting Machine

  • Model:KS-100DX
  • Max. Width:35~50mm
  • Blade Type:Hot Knife
  • Net. Weight:
  • Dimension:

This is the most economical bevel knife tape cutting machine, its cutting blade can be manually rotated to a certain angle, so it can cut parallelograms in addition to straight cuts.

When you cut tape straightly, the maximum available width of the strap is about 50mm, and when the blade needs to be rotated, the maximum available width of the tape is about 35mm. Assuming the angle of rotation is a, then the maximum available width is 50*cos(a).



Since the blade of this machine can only adjust the angle manually, it cannot automatically change the angle in real time during the tape cutting process, so it is not suitable for cutting tape trapezoid. If you need to cut a trapezoid, you can choose the following models: KS-120CHM, KS-120DM, KS-120MA.

Download: (1)

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
