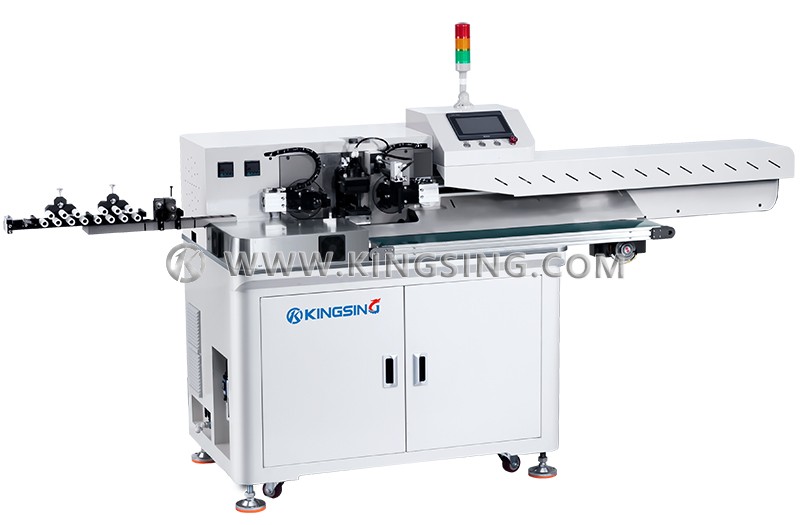

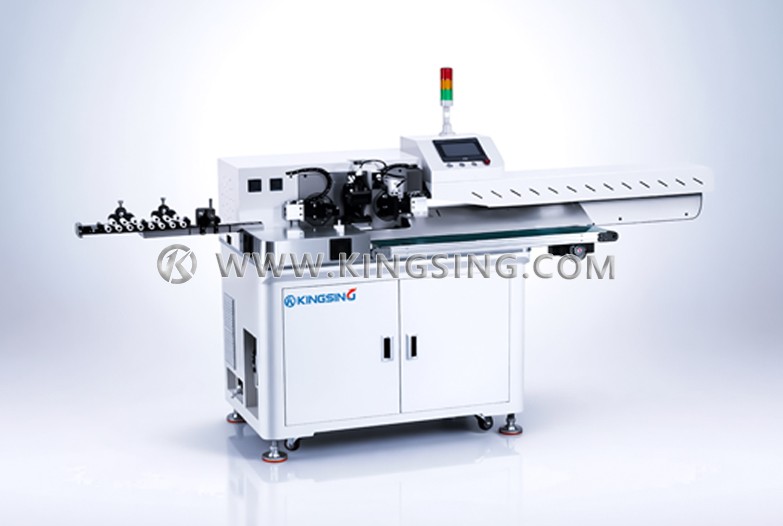

This automatic flat sheathed cable double-end tinning machine is a comprehensive wire processing solution specifically engineered for flat sheathed cables. It seamlessly integrates cutting, outer jacket stripping, core wire stripping, wire twisting and tinning functions into a single automated unit, delivering complete cable processing from start to finish.

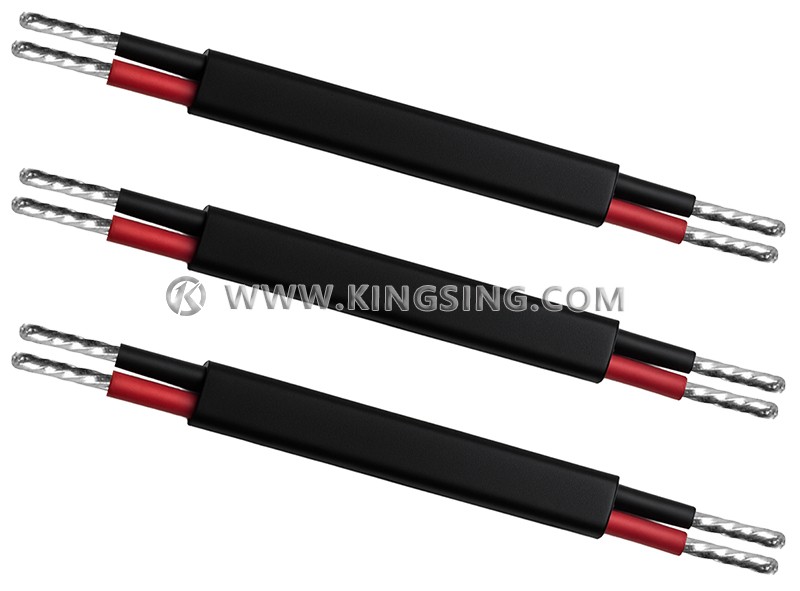

Designed with flat cable processing as its core strength, this machine excels at handling flat sheathed cables through its integrated workflow. The system performs precise outer jacket removal, followed by accurate core wire stripping, automatic wire twisting, and consistent double-end tinning application, ensuring superior quality results for flat cable applications.

The machine features a built-in conveyor belt system that automatically sorts and stacks processed wire bundles in predetermined quantities. This intelligent sorting capability allows operators to specify batch sizes, with the conveyor automatically organizing finished wires into neat stacks for efficient collection and packaging, significantly streamlining the production workflow.
Beyond flat sheathed cables, the machine also accommodates ordinary single wires, providing versatile processing capabilities across different wire types. Its full servo motor drive system incorporates 6 precision servo motors, ensuring exceptional accuracy and consistent performance throughout all processing operations.
Equipped with advanced servo motor control systems and precision linear guides, this machine maintains reliable operation while its automated functionality dramatically reduces manual labor requirements. The combination of integrated processing functions and intelligent sorting makes it ideal for high-volume production in electronics manufacturing, automotive wiring harnesses, and cable assembly operations.
Wire Cutting Length | 80–800 mm (customizable) |
Core Wire Diameter | φ1.0–3.0 mm |
Core Wire Twisting Length | 4–12 mm |
Jacket Stripping Length | End A: 1–45 mm (customizable) End B: 1–30 mm (customizable) |
Core Wire Stripping Length | 1–15 mm (customizable) |
Cutting Length Accuracy | ±(0.5+0.2%*L)mm |
Air Pressure | 0.5–0.7 MPa |
Power Supply | AC 220V 50/60Hz (customizable) |
Dimensions | 2200 × 750 × 1200 mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
