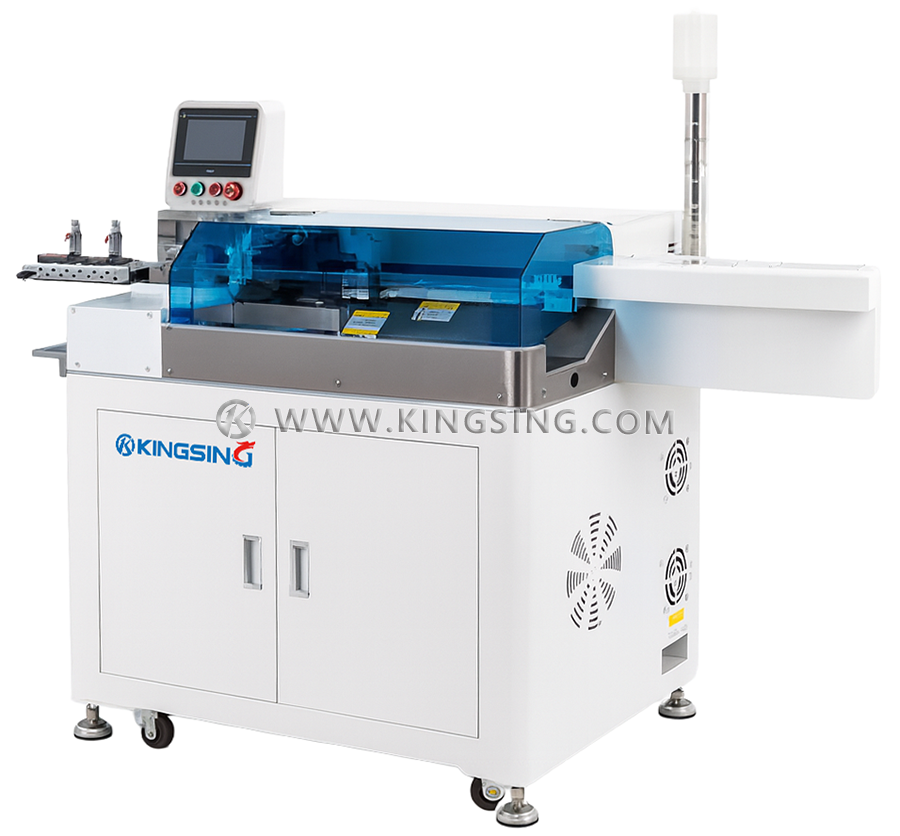

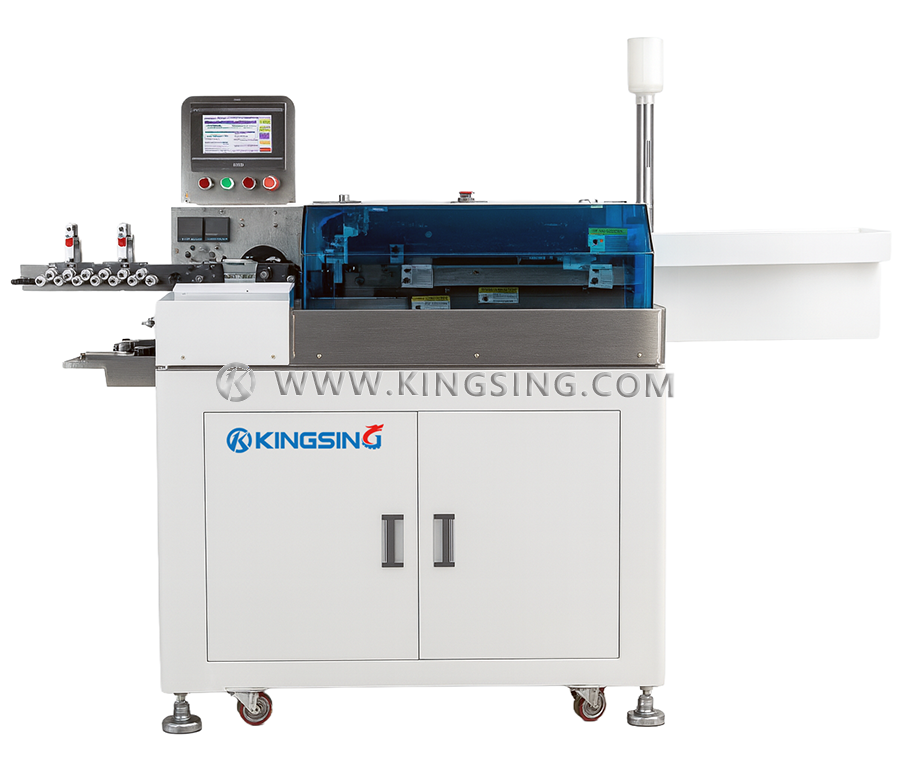

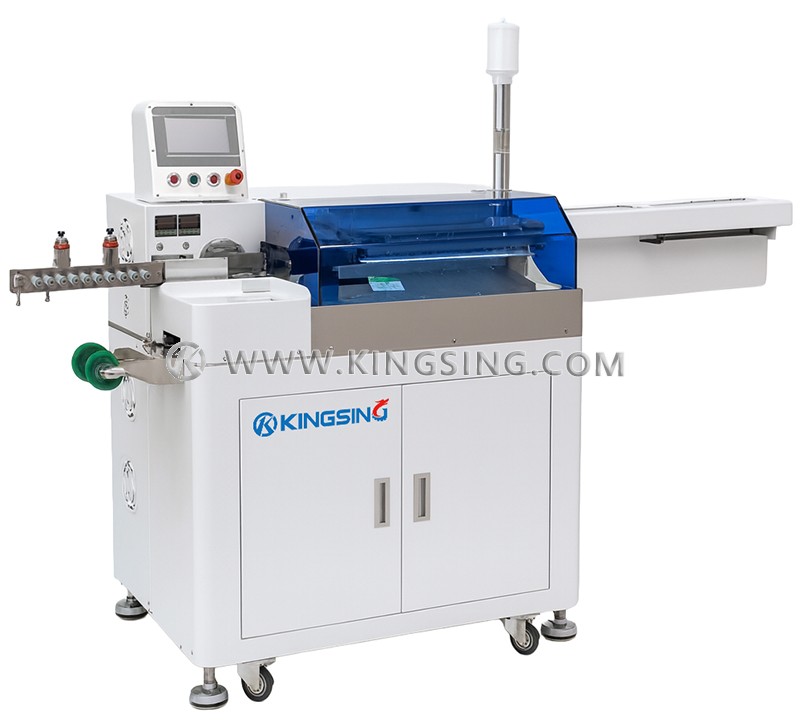

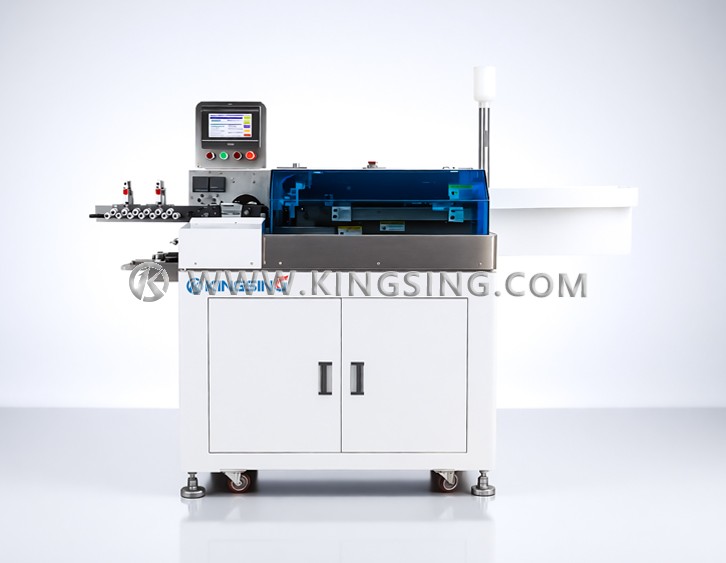

Economical Double-sided Twisting and Tinning Machine

  • Model：KS-W1012
  • Net. Weight：
  • Dimension：
Online Inquiry

This is an economical fully automatic double-sided cutting and tinning machine, which integrates the functions of cutting, stripping, twisting and tinning, and has a very high cost performance. This machine supports simultaneous processing of multiple lines with high production efficiency. The wire splitting function can be selected for processing double wires to realize automatic wire cutting, stripping, wire splitting, twisting, and tinning. It can also be equipped with a twisted wire function, which can twist two or more electronic groups together to form a twisted wire. The color touch screen operation interface, the program memory function can store up to 100 sets of processing data, and the corresponding processing parameters can be called out with one key when switching products.

Download: (1)

Applicable wire diameter: AWG32~16 (0.05~1.5mm2)

Cutting length: 15~1000mm (can be customized)

Stripping length: ≤7mm (can be customized)

Twisted wire length: 3~7mm

Tinning length: 0.5~7mm

Production efficiency: 6000~10000 pieces/hour

Optional configuration: two-wire splitting function, twisted wire function

Operation interface: 7-inch color touch screen

Rated power: 3000W

Working voltage: 220V 50/60Hz

Air pressure requirement: 0.5~0.7Mpa

Net weight: 300kg

Dimensions: 1210*770*1370mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
