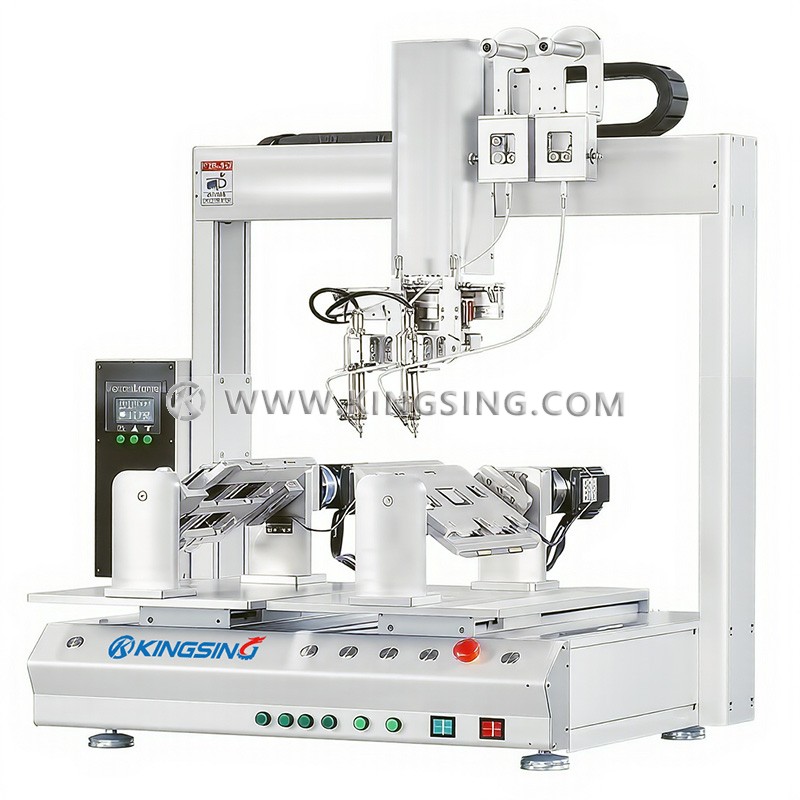

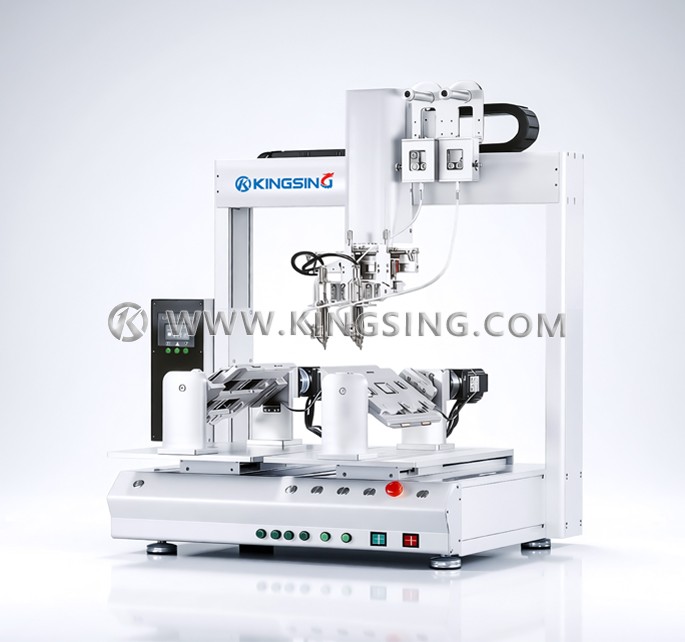

This dual-head automatic soldering machine is engineered for high-efficiency electronic assembly operations, featuring two independent soldering heads that operate simultaneously to maximize productivity. The system is specifically designed for high-throughput manufacturing environments where speed and consistency are critical.
The machine incorporates dual Y-axes with B-axis rotation capability, enabling flexible angle adjustment for both workstations. This dual-station configuration allows parallel processing of different fixtures or products, effectively minimizing idle time and significantly boosting overall production efficiency.
Built for precision and reliability, the system maintains consistent soldering quality through programmable parameters including temperature control, soldering duration, and tin feeding length. The robust control platform ensures repeatable results across demanding multi-product manufacturing environments.
Ideal for electronics manufacturing, PCB assembly, and component soldering applications, this machine delivers exceptional performance in repetitive soldering tasks while maintaining the flexibility required for diverse production requirements.
| XYZ Axis Travel | 500×300×100 mm (customizable) |
| R-Axis Rotation | None |
| B-Axis (Y-Axis Rotation) | Available |
| Y-Axis Quantity | 2 (dual-station) |
| B-Axis Quantity | 2 (dual-station) |
| XY Translation Speed | 0–800 mm/s |
| Repeat Accuracy | ±0.02 mm |
| Solder Wire Diameter | Ø0.3–1.0 mm |
| Temperature Tolerance | ±2 °C |
| Temperature Range | 50–500 °C |
| Max. Load | 10 kg |
| Program Storage | Max. 999 programs |
| Soldering Time | 1.2–2 seconds |
| Power Supply | AC 220V 50/60Hz (customizable) |
| Optional Configurations | Safety Guard Cover, Safety Light Curtain, Tooling Fixture, Fume Extraction and Purification Unit |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
