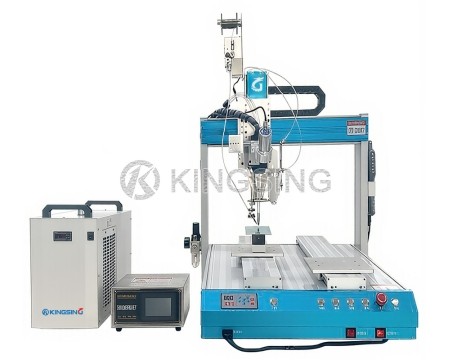

Five-Axis Rotary Automatic Soldering Robot

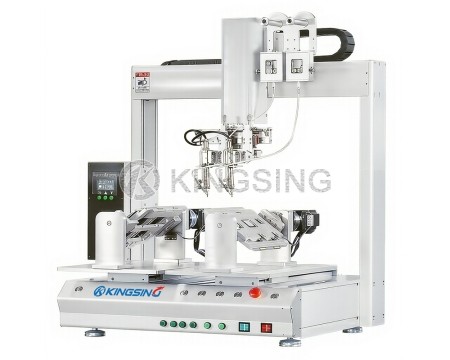

This advanced automatic soldering machine is designed to meet the demanding requirements of modern electronics manufacturing, offering superior flexibility and precision in a wide range of soldering applications. The system is equipped with an R-axis (Z-axis rotation) and a B-axis (Y-axis rotation) in addition to standard XYZ linear motion, allowing for full multi-angle soldering capability.

The multi-axis configuration greatly expands the machine's working envelope and ensures accurate soldering of complex components and connectors from different orientations. This enhanced flexibility makes it ideal for intricate PCB assemblies and challenging connector configurations that require precise angular positioning.

The high-precision motion control platform delivers stable and repeatable soldering quality, while the programmable interface supports multiple process settings including soldering temperature, tin feeding length, and soldering time. These features enable consistent results and reduce dependence on operator skill, ensuring uniform quality across production runs.

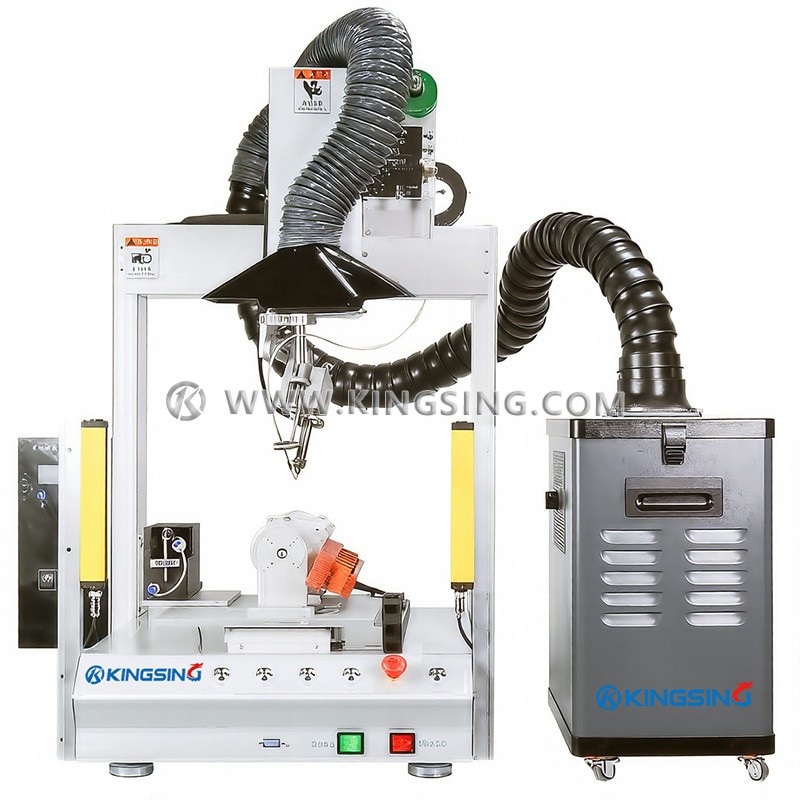

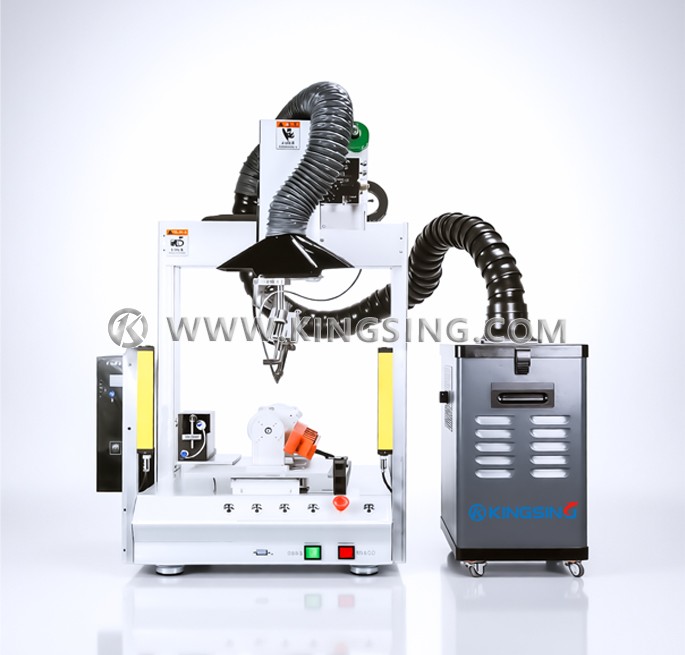

For enhanced workplace safety and environmental protection, the machine can be optionally configured with a fume extraction and purification system. This device effectively removes soldering smoke and harmful particles, creating a cleaner and healthier production environment for operators.

With its combination of multi-axis flexibility, advanced programmability, and optional smoke purification, this soldering machine is an ideal choice for applications such as PCB soldering, connector assembly, DC terminal tinning, and other precision electronics production processes.
