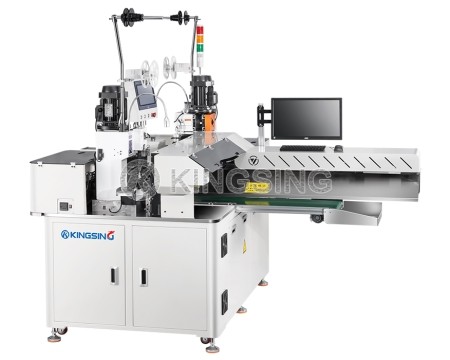

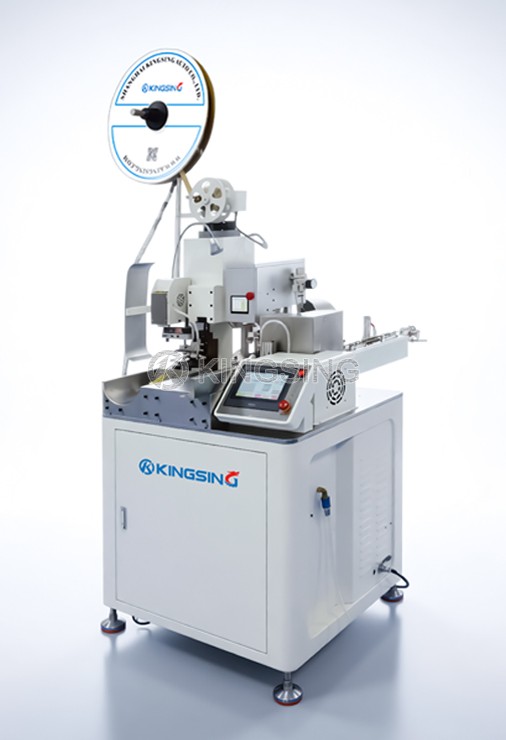

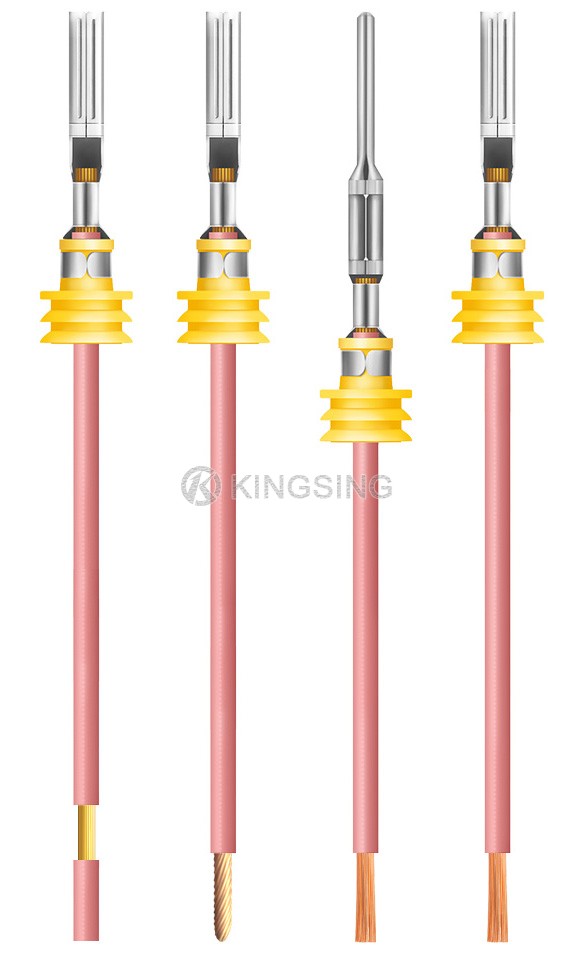

This fully automatic single-head waterproof plug sealing crimping machine delivers comprehensive wire processing capabilities in a compact, cost-effective design. The machine performs precise wire stripping and twisting on one end while seamlessly inserting waterproof plug crimping terminals on the other end, ensuring reliable electrical connections for demanding applications.
Featuring an advanced automatic feeding system, this versatile machine can process various product types by simply replacing the corresponding track fixture when switching between different waterproof plugs. The robust nodular cast iron construction provides exceptional rigidity and ensures consistent crimping dimensions throughout extended production runs.
The intuitive color touch screen interface simplifies parameter configuration, allowing operators to easily adjust cutting length, stripping length, twisting strength, waterproof plug insertion position, and crimping parameters. The built-in program memory function stores processing parameters for different products under separate program numbers, enabling one-key parameter recall when switching between product types.
With a standard 30mm crimping stroke and compatibility with OTP bayonet applicators, this machine offers excellent adaptability for various terminal types. Optional 40mm stroke models accommodate European applicators, while the available crimping force monitor provides real-time monitoring of crimping force curves with automatic alarm and stop functions for quality assurance.
| Applicable Wire Diameter | AWG28~14 (0.1~2.0mm²) |
| Main Function | One end waterproof plug terminal crimping, other end stripping and twisting |
| Cutting Length | 50~9999mm |
| Stripping Length | ≤10mm (customizable) |
| Cutting Accuracy | ±(0.5+L×2‰) L=cutting length |
| Waterproof Plug Diameter | ≤Φ16mm |
| Crimping Force | 2T (3T model optional) |
| Crimping Stroke | 30mm (40mm stroke model customizable) |
| Applicable Terminals | Horizontal feed terminals, direct feed terminals |
| Production Efficiency | 2500~3000 pieces/hour |
| Operation Interface | Color touch screen |
| Air Pressure | 0.4~0.6Mpa |
| Working Voltage | 220V 50/60Hz (customizable) |
| Net Weight | 350kg |
| Dimensions | 700×800×1500mm |
| Optional Configuration | Terminal crimp force monitor, CCD vision inspection system, servo crimping station (programmable crimping height), conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, customized solutions available upon request |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
