Twin Core Cable Seal Insertion & Crimping Machine

  • Model:KS-T5254C
  • Net. Weight:
  • Dimension:

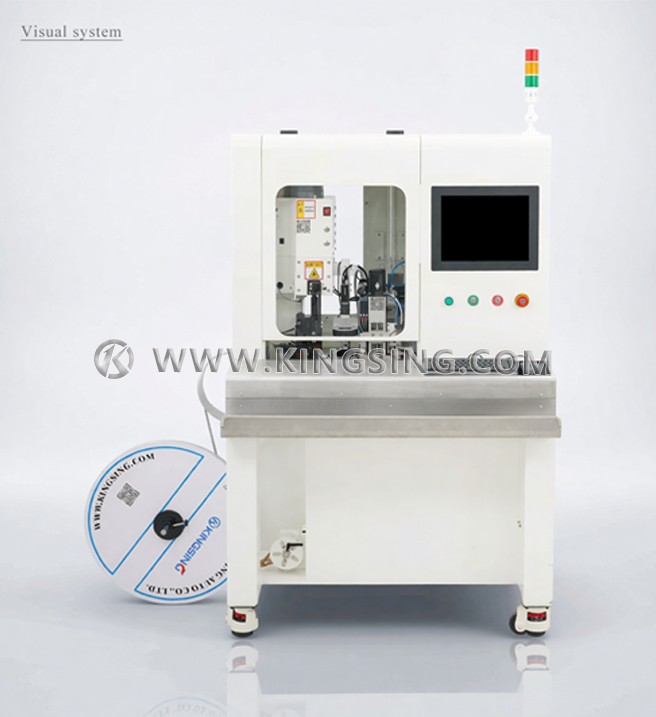

This advanced dual wire sealing crimping machine is specifically engineered for simultaneous processing of two wires, making it particularly suitable for twin-core sheathed cable applications. The machine seamlessly integrates waterproof seal insertion, wire stripping, and terminal crimping in a single automated cycle with exceptional precision and consistency.

The wire feeding section features trumpet-shaped guide funnels that facilitate effortless wire placement for operators, ensuring smooth and accurate wire positioning while significantly reducing operator fatigue during continuous operation.

wire sealing crimping machine

The machine employs a unique processing sequence: after wire insertion, waterproof seals are inserted first, followed by precise wire end trimming and stripping operations. The synchronized trimming action ensures perfect uniformity across all processed products, maintaining consistent wire stripping dimensions. This innovative sequence completely eliminates copper wire fraying and ensures clean, consistent wire preparation without any stray copper strands that could compromise connection quality.

Equipped with programmable data storage capabilities through an industrial computer interface (windows system), the intelligent control system allows operators to store multiple processing programs for different product configurations, enabling quick changeovers between production runs and maximizing operational flexibility.

The terminal crimping unit utilizes high-force servo motor drive technology with digitally adjustable crimping height control, ensuring optimal crimp quality for waterproof applications. Optional pressure monitoring systems provide real-time crimping force feedback to maintain consistent crimp quality, while CCD vision inspection systems can automatically detect and reject defective products, ensuring only properly crimped terminals proceed to the next production stage for enhanced quality assurance.

Download: (1)
Applicable Wire Size0.3–2.5 mm²
Stripping Length10 mm
Stripping Precision0.05 mm
Crimping Capacity2 T
Crimping Stroke30/40 mm
Cycle Time3 seconds
Rated Power1.5 kW
Air Pressure0.5–0.6 MPa
Power Supply220 V 50/60 Hz (customizable)
Dimensions (L×W×H)1100×950×1600 mm
Operation InterfaceIndustrial Computer System (Windows)
Optional ConfigurationTerminal crimp force monitor, CCD vision inspection system, door-mounted emergency stop, customized solutions available upon request
Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
